638 (248-638-100) - Cub Cadet Log Splitter (1988) Log Splitter Parts Diagram

Log Splitter

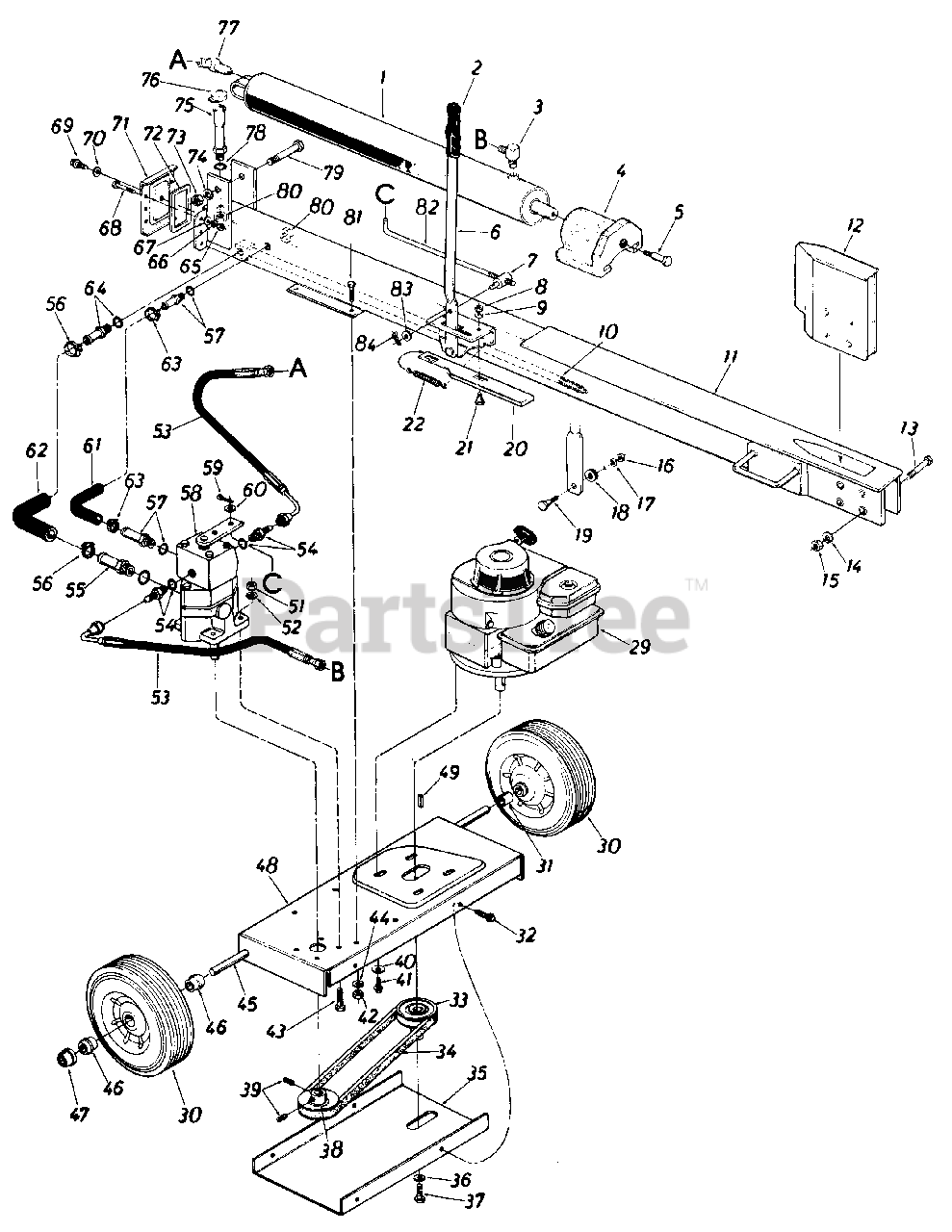

Log Splitter Parts Diagram

  • Title

1

Cub Cadet 717-0816

CYLINDER-HYDRO

$

$

Not available

2

Cub Cadet 720-0157

GRIP-LIFT HANDLE
(Superseded to 920-0233)

$

$

Not available

3

Cub Cadet 737-0196

ADAPTER-90 DEGREE

$

$

Not available

4

Cub Cadet 719-0270

PLATE-PUSH

$

$

Currently unavailable

5

Cub Cadet 738-0601

SCREW-SHLD .62X.475

$

$

Not available

6

Cub Cadet 749-0663

HANDLE

$

$

Not available

7

Cub Cadet 711-0628

FERRULE-ADJ

$

$

Not available

8

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 781-0021

TUBE ASSY-STRAINER

$

$

Not available

11

Cub Cadet 781-0069

TANK ASSY-OIL

$

$

Currently unavailable

12

Cub Cadet 781-0038

WEDGE ASSY

$

$

Not available

13

Cub Cadet 710-0298

SCREW-HEX 5/8-18 X 3.50

$9.99

$

In Stock, only 2 left!

0

14

Cub Cadet 736-0158

WASHER-LOCK-5/8

$4.49

$

In Stock, Qty 11

0

15

Cub Cadet 712-0337

NUT-HEX 5/8-18

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, Qty 12

0

17

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 735-0144

WASHER-RUBBER .50 X 1.00 X .25

$

$

Not available

19

Cub Cadet 738-0143

SCREW-SHLD .498 DIA X .340

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 781-0024

BRACKET-ENGAGE

$

$

Currently unavailable

21

Cub Cadet 738-0140

SCREW-SHLD .437 DIA X .180

$5.99

$

In Stock, Qty 15

0

22

Cub Cadet 732-0352

SPRING-EXTENSION

$

$

Not available

29

Note: ENGINE B & S

$

$

Not available

30

Cub Cadet 734-0736

WHEEL ASSY W/TIRE-10 X 2.75

$

$

Not available

31

Cub Cadet 750-0118

SLEEVE
(Superseded to 950-0118)

$

$

Not available

32

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 756-0425

PULLEY

$

$

Not available

34

Cub Cadet 754-0278

BELT-V 1/2 X 30

$

$

Not available

35

Cub Cadet 781-0008

COVER-BELT

$

$

Currently unavailable

36

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 710-0152

BOLT-3/8 NF X 1"GR5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 756-0426

PULLEY

$

$

Not available

39

Cub Cadet 710-0938

SCREW-SET 1/4-28 X .25

$

$

Not available

40

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 710-0649

SCREW-HEX WASH HD 3/8-24 X 7/8

$

$

Not available

42

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

43

Cub Cadet 710-0376

SCREW-HEX 5/16-18 X 1.00

$3.99

$

In Stock, Qty 5

0

44

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

Cub Cadet 747-0458

SHAFT-AXLE

$

$

Not available

46

Cub Cadet 741-0116

BEARING-FLANGE

$

$

Not available

47

Cub Cadet 726-0214

CAP-PUSH

$10.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 781-0002

FRAME-ENGINE

$

$

Not available

49

Cub Cadet 714-0133

KEY-SQ 3/16X1.50

$4.99

$

In Stock, Qty 12

0

51

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

Cub Cadet 727-0302

HOSE-PRESSURE

$

$

Currently unavailable

54

Cub Cadet 737-0183

ADAPTER

$

$

Currently unavailable

55

Cub Cadet 737-0182

ADAPTER

$

$

Currently unavailable

56

Cub Cadet 726-0132

CLAMP-HOSE-5/8

$15.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 737-0184

ADAPTER

$

$

Currently unavailable

58

Cub Cadet 717-0803

PUMP ASSY

$

$

Currently unavailable

59

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

In Stock, Qty 12

0

60

Cub Cadet 736-0264

WASHER-FL-.344 X .62

$6.99

$

In Stock, only 1 left!

0

61

Cub Cadet 727-0301

HOSE-RETURN-90 DEG

$

$

Not available

62

Cub Cadet 727-0300

HOSE-SUCTION-90 DEG

$

$

Not available

63

Cub Cadet 726-0146

CLAMP-HOSE 1/4 ID

$

$

Not available

64

Cub Cadet 737-0191

ADAPTER

$

$

Not available

65

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

67

Cub Cadet 736-0275

WASHER-FL (#46041)

$6.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 710-0442

SCREW-HEX 5/16-18 X 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

69

Cub Cadet 710-0604

SCREW-HEX WASH HD 5/16-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 721-0205

WASHER-GASKET

$

$

Not available

71

Cub Cadet 781-0023

PLATE-END

$

$

Not available

72

Cub Cadet 721-0203

GASKET

$

$

Not available

73

Cub Cadet 712-0203

NUT-HEX 3/4
(Superseded to 712-0301)

$7.99

$

In Stock, only 1 left!

0

74

Cub Cadet 736-0364

WASHER
(Superseded to 936-0364)

$

$

Not available

75

Cub Cadet 781-0036

TUBE ASSY-FILLER

$

$

Currently unavailable

76

Cub Cadet 745-0174

CAP ASSY-GAS

$

$

Not available

77

Cub Cadet 737-0197

ADAPTER-45 DEGREE

$

$

Not available

78

Cub Cadet 721-0204

RING-O

$

$

Not available

79

Cub Cadet 710-0920

SCREW-HEX 3/4X4.0

$

$

Currently unavailable

80

Cub Cadet 712-0338

NUT-HEX 1 1/16-12

$

$

Not available

81

Cub Cadet 710-0117

SCREW-HEX SPECIAL 5/16-24X1.0
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

82

Cub Cadet 747-0493

ROD-ENGAGEMENT

$

$

Currently unavailable

83

Cub Cadet 736-0264

WASHER-FL-.344 X .62

$6.99

$

In Stock, only 1 left!

0

84

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0
