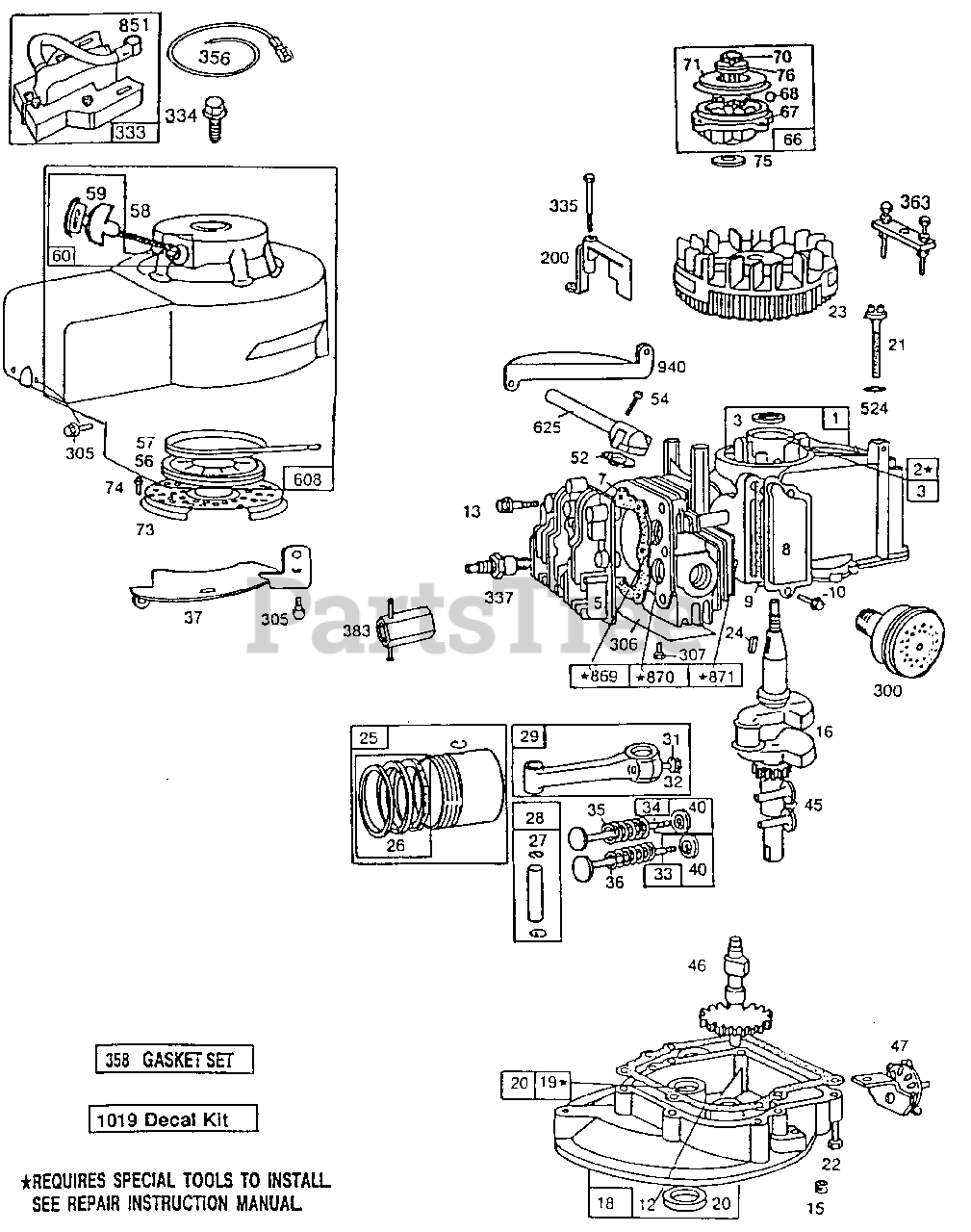

638 (247-638-100) - Cub Cadet Log Splitter Engine (1987) B&S 3.5 HP-92902-5292-01 Part 1 Parts Diagram

Log Splitter Engine

B&S 3.5 HP-92902-5292-01 Part 1 Parts Diagram

  • Title

1

Cub Cadet BS-399164

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-293708

Bushing-Cylinder
(Superseded to BS-399269)

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 13

0

5

Cub Cadet BS-211479

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-270341

Gasket-Cylinder Head

Note: (Included in Gasket Set - Part No. 298989)

$

$

Not available

8

Cub Cadet BS-298383

Breather-Valve Chamber

$

$

Not available

9

Cub Cadet BS-270239

Gasket-Valve Cover

Note: (Included in Gasket Set - Part No. 298989)

$

$

Not available

10

Cub Cadet BS-93394

Screw-Breather
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet BS-270833

Gasket-Crankcase-.015" Thick (Standard)
(Superseded to BS-692218)

Note: (Included in Gasket Set - Part No. 298989)

$

$

Not available

Cub Cadet BS-270895

Gasket-Crankcase-.005" Thick

Note: (Included in Gasket Set - Part No. 298989)

$9.99

$

In Stock, only 1 left!

0

Cub Cadet BS-270896

Gasket-Crankcase-.009" Thick

Note: (Included in Gasket Set - Part No. 298989)

$5.99

$

In Stock, Qty 8

0

13

Cub Cadet BS-93111

Screw-Cylinder Head (1-15/1 6" Long)
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 11

0

15

Cub Cadet BS-93418

Plug-Oil Drain
(Superseded to BS-691680)

$5.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-260319

Crankshaft

$

$

Currently unavailable

18

Cub Cadet BS-395384

Sump-Oil

$

$

Not available

19

Cub Cadet BS-293709

Bushing-Oil Sump

$11.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-391483

Seal-Oil
(Superseded to BS-391483S)

$5.99

$

In Stock, Qty 5

0

21

Cub Cadet BS-280485

Plug-Oil Filler
(Superseded to BS-691913)

$9.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-93032

Screw-Mtg. Sem

$

$

Not available

23

Cub Cadet BS-394066

Flywheel-Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-298904

Piston-Ass'y.-Standard

$82.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298905

Piston Ass'y.-.010" O.S.

$50.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298906

Piston Ass'y.-.020" O.S.

$

$

Not available

Cub Cadet BS-298907

Piston Ass'y.-.030" O.S.

$

$

Not available

26

Cub Cadet BS-298982

Ring Set-Standard Piston

$48.99

$

In Stock, Qty 8

0

Cub Cadet BS-298983

Ring Set-.010" O.S. Piston

$

$

Not available

Cub Cadet BS-298984

Ring Set-.020" O.S. Piston

$35.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298985

Ring Set-.030" O.S. Piston

$23.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Assembly-Piston-Standard

$8.99

$

In Stock, only 2 left!

0

Cub Cadet BS-298908

Pin Assembly-Piston-.005" O.S.

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-294201

Rod Ass'y.-Connecting

$

$

Not available

31

Cub Cadet BS-222282

Washer-Conn. Rod Screw (One for Each Screw)

$

$

Currently unavailable

32

Cub Cadet BS-92296

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-296676

Valve-Exhaust

$23.99

$

In Stock, only 1 left!

0

34

Cub Cadet BS-296677

Valve-Intake

$24.99

$

In Stock, only 3 left!

0

35

Cub Cadet BS-260552

Spring-Intake Valve

$5.49

$

In Stock, only 1 left!

0

36

Cub Cadet BS-26478

Spring-Exhaust Valve

$6.49

$

In Stock, only 1 left!

0

37

Cub Cadet BS-223150

Guard-Flywheel

$

$

Currently unavailable

40

Cub Cadet BS-93312

Retainer-Valve Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 9

0

45

Cub Cadet BS-230173

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-394800

Gear-Cam

$

$

Not available

47

Cub Cadet BS-294652

Oil Slinger Gear and Bracket

$

$

Not available

52

Cub Cadet BS-270345

Gasket-Intake Elbow

Note: (Included in Gasket Set - Part No. 298989)

$

$

Not available

54

Cub Cadet BS-93485

Screw-Intake Elbow Mounting

$

$

Not available

56

Cub Cadet BS-280117

Pulley-Rewind Starter
(Superseded to BS-280439S)

$12.99

$

In Stock, Qty 10

0

57

Cub Cadet BS-490179

Spring-Rewind Starter

$

$

Not available

58

Cub Cadet BS-66734

Rope-Rewind Starter- (48-5/8" Long)

$6.49

$

In Stock, Qty 11

0

59

Cub Cadet BS-396892

Insert-Starter Rope

$5.49

$

In Stock, only 1 left!

0

60

Cub Cadet BS-393152

Grip-Starter Rope

$4.99

$

Usually ships in 2-12 days

0

66

Cub Cadet BS-394558

Clutch Ass'y.-Rewind Starter
(Superseded to BS-399671)

$34.99

$

In Stock, Qty 20+

0

67

Cub Cadet BS-394897

Housing-Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Cub Cadet BS-63770

Ball-Clutch

$

$

Not available

70

Cub Cadet BS-298436

Ratchet-Rewind Starter
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-221653

Washer-Clutch Retainer

$

$

Currently unavailable

73

Cub Cadet BS-221661

Screen-Rewind Starter
(Superseded to BS-691725)

$

$

Not available

74

Cub Cadet BS-93490

Screw-Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 8

0

75

Cub Cadet BS-223047

Washer-Spring

$

$

Currently unavailable

76

Cub Cadet BS-68238

Washer-Ratchet Sealing

$

$

Not available

200

Cub Cadet BS-68388

Blade-Governor

$26.99

$

Usually ships in 2-12 days

0

300

Cub Cadet BS-394569

Muffler-Exhaust

$

$

Not available

305

Cub Cadet BS-94153

Screw-Sem

$

$

Not available

306

Cub Cadet BS-221805

Shield-Cylinder
(Superseded to BS-690400)

$6.49

$

Usually ships in 2-12 days

0

307

Cub Cadet BS-93490

Screw-Cylinder Shield and Rotating Screen Mounting Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 8

0

333

Cub Cadet BS-397316

Armature-Magneto
(Superseded to BS-591420)

$53.99

$

In Stock, only 2 left!

0

334

Cub Cadet BS-93381

Screw-Armature Mounting Sem

$

$

Not available

335

Cub Cadet BS-93435

Screw-Armature and Governor Blade Mounting Sem

$

$

Not available

337

Cub Cadet BS-298809

Plug-Spark 1-1/2" High- 37-42 MM

$

$

Currently unavailable

356

Cub Cadet BS-398808

Wire-Ground

$11.99

$

In Stock, only 1 left!

0

358

Cub Cadet BS-298989

Gasket Set
(Superseded to BS-794209)

$21.99

$

Usually ships in 2-12 days

0

363

Cub Cadet BS-19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

524

Cub Cadet BS-271485

Seal-Filler Tube

$

$

Not available

608

Cub Cadet BS-396675

Starter Ass'y.-Rewind (12 o'clock Position)

$53.99

$

Usually ships in 2-12 days

0

625

Cub Cadet BS-298775

Tube-Fuel Intake
(Superseded to BS-693446)

$14.99

$

Usually ships in 2-12 days

0

851

Cub Cadet BS-221798

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-210879

Seat-Intake Valve (Standard)

$6.99

$

Usually ships in 2-12 days

0

70

Cub Cadet BS-211291

Seat-Exhaust Valve (Standard)

$

$

Not available

870

Cub Cadet BS-211291

Seat-Exhaust Valve (Standard)

$

$

Not available

871

Cub Cadet BS-63709

Guide-Exhaust Valve

$14.99

$

Usually ships in 2-12 days

0

940

Cub Cadet BS-222403

Guard-Flywheel

$

$

Currently unavailable

1019

Cub Cadet BS-491082

Decal Kit

$

$

Currently unavailable
