63711 - Lawn-Boy 36" Snow Thrower Attachment (SN: L00000001 - L99999999) (1992) FRAME, DRIVE AND LIFT PARTS LIST-36" SNOWTHOWER Parts Diagram

36" Snow Thrower Attachment

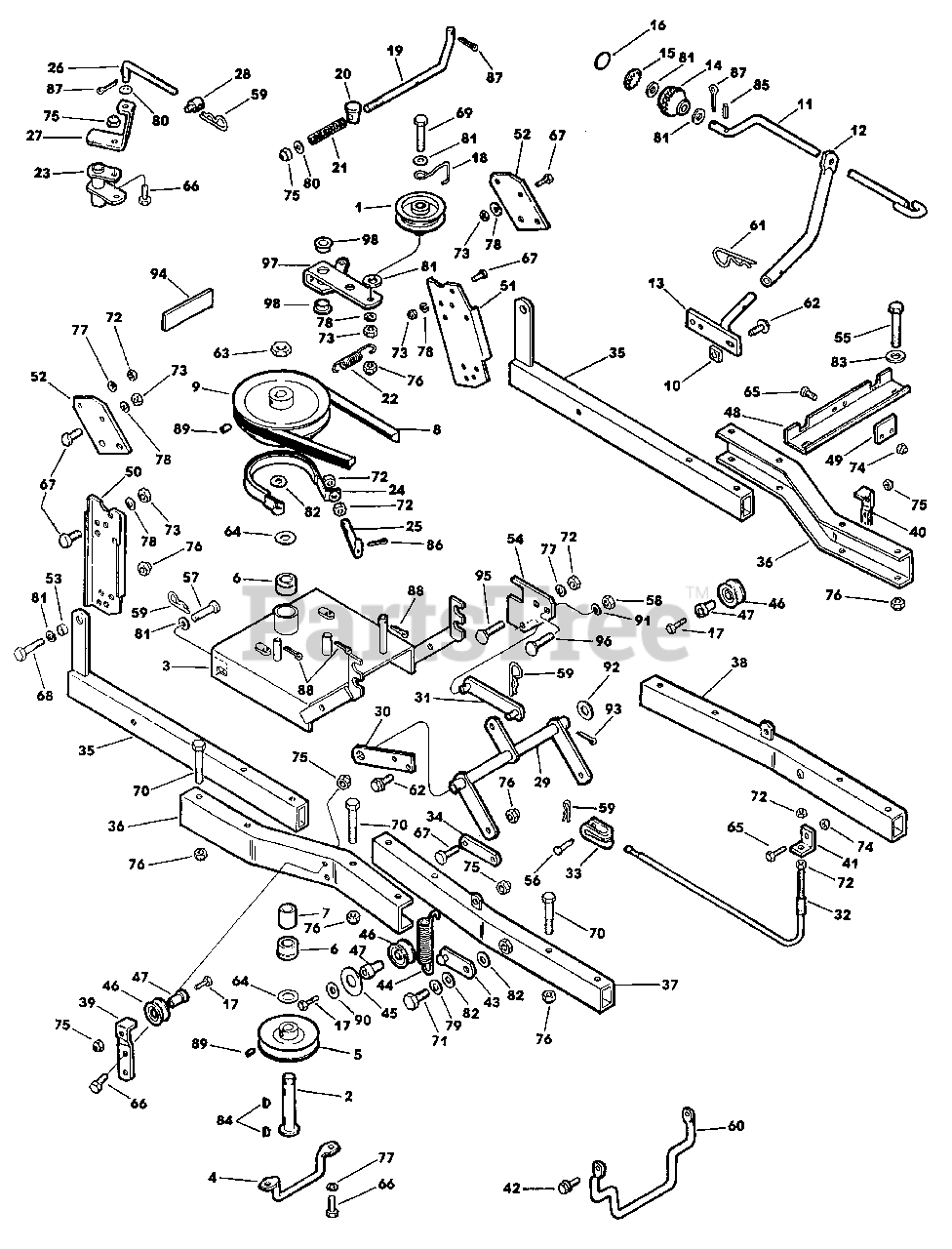

FRAME, DRIVE AND LIFT PARTS LIST-36" SNOWTHOWER Parts Diagram

  • Title

1

Lawn-Boy 701070

Idler Pulley

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 741012

Jackshaft

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$302.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 740108

Pulley Support

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 702930

Belt Guard

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

5

Lawn-Boy 741015

Pulley

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

6

Lawn-Boy 741022

Bearing w/Snap Ring

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 702937

Spacer

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

8

Lawn-Boy 702919

V-Belt (Primary)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 741010

Pulley And Brake Drum

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

10

Lawn-Boy 702621

Spacer

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 741002

Chute Control Crank

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 702905

Tube-Chute Control Support

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$245.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 740940

Support-Chute Control

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 700189

Knob

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$34.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 740994

Plug Button & Decal Ass'y

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 702757

Decal-Discharge Control

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 146210

Cap Screw, Hex Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

18

Lawn-Boy 702167

Belt Finger

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

19

Lawn-Boy 702911

Clutch Rod

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

20

Lawn-Boy 702912

Pin-Clutch Rod

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

21

Lawn-Boy 702934

Spring-Clutch Rod

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

22

Lawn-Boy 702921

Spring-Brake

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

23

Lawn-Boy 741017

Clutch Arm

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$86.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 741013

Brake Assembly w/Lining

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

25

Lawn-Boy 702910

Brake Rod

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

26

Lawn-Boy 702925

Over Center Rod

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

27

Lawn-Boy 702620

Extension Arm (Yard Tractor Only)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

28

Lawn-Boy 701192

Trunnion

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

29

Lawn-Boy 740942

Bellcrank Ass'y. (For All Gear Drive Tractors & Hydro Tractors With Side Air Screen.)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 740944

Bellcrank Ass'y. (For Hydro Tractors Without Side Air Screen.)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. PARTS NOT SHOWN

$

$

Not available

30

Lawn-Boy 702618

Lift Support Arm

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

31

Lawn-Boy 740935

Lift Link

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

32

Lawn-Boy 740932

Lift Cable

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

33

Lawn-Boy 702608

Lift Clevis

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

34

Lawn-Boy 702610

Cable Extension-4" (Yard Tractor)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 702611

Cable Extension-2" (Hydro Lawn Tractor)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. PARTS NOT SHOWN

$

$

Not available

35

Lawn-Boy 741016

Rear Frame

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$632.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 702932

Frame Connecting Channel

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

37

Lawn-Boy 741031

Front Frame Weldment-R.H

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$762.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 741032

Front Frame Weldment-L.H

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

39

Lawn-Boy 702931

Plate, Cable Roller Mounting-R.H

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

40

Lawn-Boy 702945

Plate, Cable Roller Mounting-L.H

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

41

Lawn-Boy 702609

Bracket, Cable Adjustment

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

42

Lawn-Boy 701660

Thread Forming Screw, Hex Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 741029

Spring Adjustment Arm

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

44

Lawn-Boy 702632

Assist Spring

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

45

Lawn-Boy 702975

Washer

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

46

Lawn-Boy 701444

Cable Roller

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

47

Lawn-Boy 701443

Spacer-Roller

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

48

Lawn-Boy 702933

Frame Stop

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

49

Lawn-Boy 702619

Frame Stop Extension (Yard Tractor)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

50

Lawn-Boy 702363

Mounting Bracket-R.H. (Yard Tractor)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

51

Lawn-Boy 702364

Mounting Bracket-L.H. (Yard Tractor)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

52

Lawn-Boy 702634

Hanger Plate (Lawn Tractor)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$429.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 702633

Spacer

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

54

Lawn-Boy 702615

Lift Arm (Lawn Tractor)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

55

Lawn-Boy 702914

Cap Screw, Hex Hd
(Superseded to 323-14)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$3.99

$

In Stock, Qty 20+

0

56

Lawn-Boy 702607

Clevis Pin

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

57

Lawn-Boy 702920

Clevis Pin

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

58

Lawn-Boy 702613

Nut, Hex

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

59

Lawn-Boy 146428

Spring clip

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

60

Lawn-Boy 702628

Belt Guide, Engine Pulley (Lawn Tractor)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 702629

Belt Guide, Engine Pulley (Yard Tractor)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. PARTS NOT SHOWN

$

$

Not available

61

Lawn-Boy 700599

Spring Clip

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

62

Lawn-Boy 702622

Thread Forming Screw, Hex Hd
(Superseded to 701243)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.99

$

In Stock, Qty 20+

0

63

Lawn-Boy 702939

Nut, Hex Center Lock

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

64

Lawn-Boy 700162

Thrust Washer

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

65

Lawn-Boy 146249

Cap Screw, Hex Hd
(Superseded to 321-4)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 20+

0

66

Lawn-Boy 146209

Cap Screw, Hex Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

67

Lawn-Boy 700973

Cap Screw, Hex Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

68

Lawn-Boy 146504

Cap Screw, Hex Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

69

Lawn-Boy 700838

Cap Screw, Hex Hd
(Superseded to 323-11)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.49

$

In Stock, Qty 20+

0

70

Lawn-Boy 146307

Cap Screw, Hex Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

71

Lawn-Boy 702105

Cap Screw, Hex Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

72

Lawn-Boy 146259

Nut, Hex

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

73

Lawn-Boy 146211

Nut, Hex

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

74

Lawn-Boy 146375

Nut, Hex Cone Lock

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.49

$

Usually ships in 3-6 days

0

75

Lawn-Boy 146501

Nut, Hex Cone Lock

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

In Stock, only 3 left!

0

76

Lawn-Boy 700032

Nut, Hex Cone Lock

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

77

Lawn-Boy 146258

Washer, Spring Lock
(Superseded to 3253-4)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

78

Lawn-Boy 146260

Washer, Spring Lock

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

79

Lawn-Boy 701068

Washer, Spring Lock

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

80

Lawn-Boy 146368

Washer, Flat
(Superseded to 3256-23)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.49

$

In Stock, Qty 20+

0

81

Lawn-Boy 146304

Washer, Flat

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

82

Lawn-Boy 146204

Washer, Flat

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

83

Lawn-Boy 700050

Washer, Flat

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

84

Lawn-Boy 701077

Key, Woodruff
(Superseded to 3257-32)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.99

$

In Stock, Qty 20+

0

85

Lawn-Boy 700213

Roll Pin

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

86

Lawn-Boy 700834

Cotter Pin

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

87

Lawn-Boy 146374

Cotter Pin
(Superseded to 3272-10)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 11

0

88

Lawn-Boy 146370

Cotter Pin

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

89

Lawn-Boy 700029

Setscrew, Hex Socket Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

90

Lawn-Boy 146205

Washer, Flat

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

91

Lawn-Boy 701141

Washer, Spring Lock

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

92

Lawn-Boy 702614

Washer

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

93

Lawn-Boy 701294

Cotter Pin
(Superseded to 3272-17)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.99

$

In Stock, Qty 5

0

94

Lawn-Boy 740324

Reflector

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

95

Lawn-Boy 700684

Bolt, Carriage

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

96

Lawn-Boy 702612

Bolt, Carriage

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

97

Lawn-Boy 741019

Chute Idler Arm Ass'y. w/Bushings

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

98

Lawn-Boy 702110

Bushing

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available
