63707 A - Lawn-Boy 48" Side-Discharge Mower Deck (SN: K00000001 - K99999999) (1991) 42" & 48" MOWER DECK PARTS LIST MODELS: 63706A & 63707A Parts Diagram

48" Side-Discharge Mower Deck

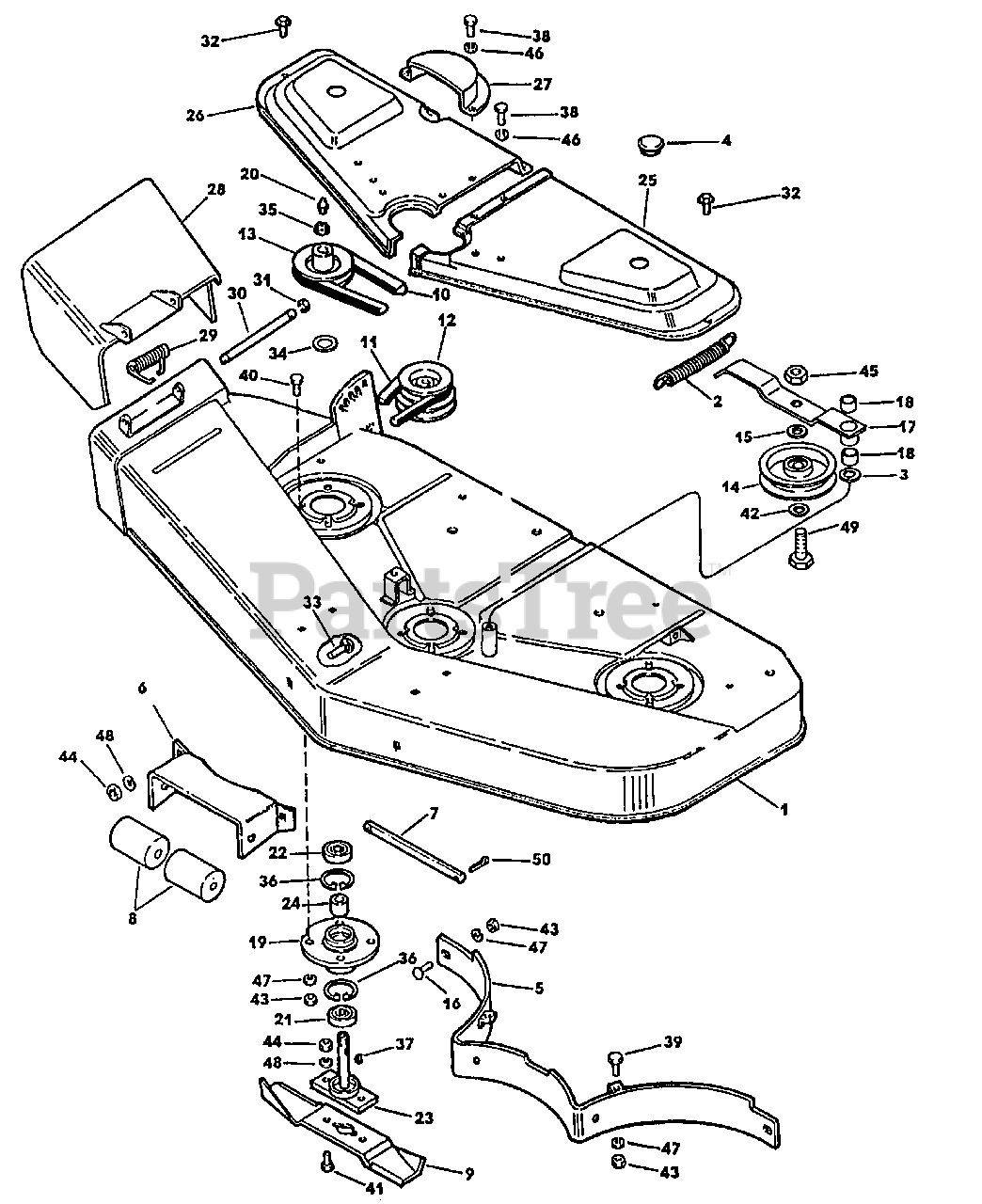

42" & 48" MOWER DECK PARTS LIST MODELS: 63706A & 63707A Parts Diagram

  • Title

1

Lawn-Boy 744496

Cutter Housing & Decal Ass'y. (42" Only)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

Lawn-Boy 744493

Cutter Housing & Decal Ass'y. (48" Only)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

2

Lawn-Boy 703368

Spring

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

3

Lawn-Boy 700495

Washer

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

4

Lawn-Boy 710268

Plug

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

5

Lawn-Boy 740986

Baffle (42" Only)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

Lawn-Boy 741084

Baffle (48" Only)
(Superseded to 741066)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

6

Lawn-Boy 702852

Bracket, Roller
(Superseded to 702851)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

7

Lawn-Boy 701212

Shaft, Roller

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

8

Lawn-Boy 701203

Roller

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$68.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 710265

Blade (42" Only)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

Lawn-Boy 710265

Blade, Center (48" Only)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

Lawn-Boy 710266

Blade, Outer (48" Only)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

10

Lawn-Boy 710051

V-Belt, Deck (48" Only)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$253.99

$

In Stock, only 1 left!

0

Lawn-Boy 703859

V-Belt, Deck (42" Only)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

11

Lawn-Boy 710281

V-Belt, Drive

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$132.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 702816

Pulley, Drive (42" Only)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

Lawn-Boy 703026

Pulley, Drive (48" Only)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

13

Lawn-Boy 702818

Pulley, Blade Spindle

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

14

Lawn-Boy 702815

Pulley, Idler

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

15

Lawn-Boy 710063

Spacer

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

16

Lawn-Boy 709914

Carriage Bolt

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

17

Lawn-Boy 744499

Idler Arm & Bearing Assy.

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

18

Lawn-Boy 710060

Bearing, Sleeve

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

19

Lawn-Boy 710272

Spindle Housing

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$594.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 701011

Grease Fitting

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

21

Lawn-Boy 700497

Bearing, Lower
(Superseded to 93-2559)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$21.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 700496

Bearing, Upper
(Superseded to 109842)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$31.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 744691

Spindle

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$839.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 710270

Sleeve

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

25

Lawn-Boy 744686

Cover Ass'y-L.H. (42" Only)
(Superseded to 744682)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$545.99

$

Usually ships in 3-6 days

0

Lawn-Boy 744690

Cover Ass'y-L.H. (48" Only)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

26

Lawn-Boy 744685

Cover Ass'y-R.H. (42" Only)
(Superseded to 744681)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$562.99

$

Usually ships in 3-6 days

0

Lawn-Boy 744689

Cover Ass'y-R.H. (48" Only)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

27

Lawn-Boy 710275

Guard, Drive Belt
(Superseded to 710276)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

28

Lawn-Boy 740988

Chute Extension

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

29

Lawn-Boy 710273

Spring, Chute Extension

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

30

Lawn-Boy 701198

Shaft, Chute Extension

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

31

Lawn-Boy 701197

E-Ring

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$3.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 701660

Thread Forming Screw, Hex Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$1.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 701911

Bolt, Carriage

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

34

Lawn-Boy 700809

Spacer

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$4.99

$

In Stock, only 2 left!

0

35

Lawn-Boy 710269

Locknut, Special

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

36

Lawn-Boy 703279

Retaining Ring
(Superseded to 32120-62)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$4.99

$

In Stock, Qty 8

0

37

Lawn-Boy 700081

Key, Woodruff
(Superseded to 3257-5)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$5.99

$

In Stock, only 1 left!

0

38

Lawn-Boy 700822

Cap Screw, Hex Hd.

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$1.99

$

In Stock, Qty 10

0

39

Lawn-Boy 146209

Cap Screw, Hex Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$1.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 700342

Cap Screw, Hex Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$2.49

$

Usually ships in 3-6 days

0

41

Lawn-Boy 700973

Cap Screw, Hex Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

42

Lawn-Boy 700358

Washer, Thrust

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

43

Lawn-Boy 146259

Nut, Hex

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

44

Lawn-Boy 146211

Nut, Hex

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$3.49

$

Usually ships in 3-6 days

0

45

Lawn-Boy 703891

Nut, Hex

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

46

Lawn-Boy 146252

Washer, Spring Lock
(Superseded to 3253-3)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$0.99

$

In Stock, Qty 20+

0

47

Lawn-Boy 146258

Washer, Spring Lock
(Superseded to 3253-4)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$0.99

$

In Stock, Qty 20+

0

48

Lawn-Boy 146260

Washer, Spring Lock

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

49

Lawn-Boy 710064

Bolt, Special

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$

$

Not available

50

Lawn-Boy 146374

Pin, Cotter
(Superseded to 3272-10)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. NOTE: Parts are the same for both models except where specifically identified

$1.49

$

In Stock, Qty 14

0
