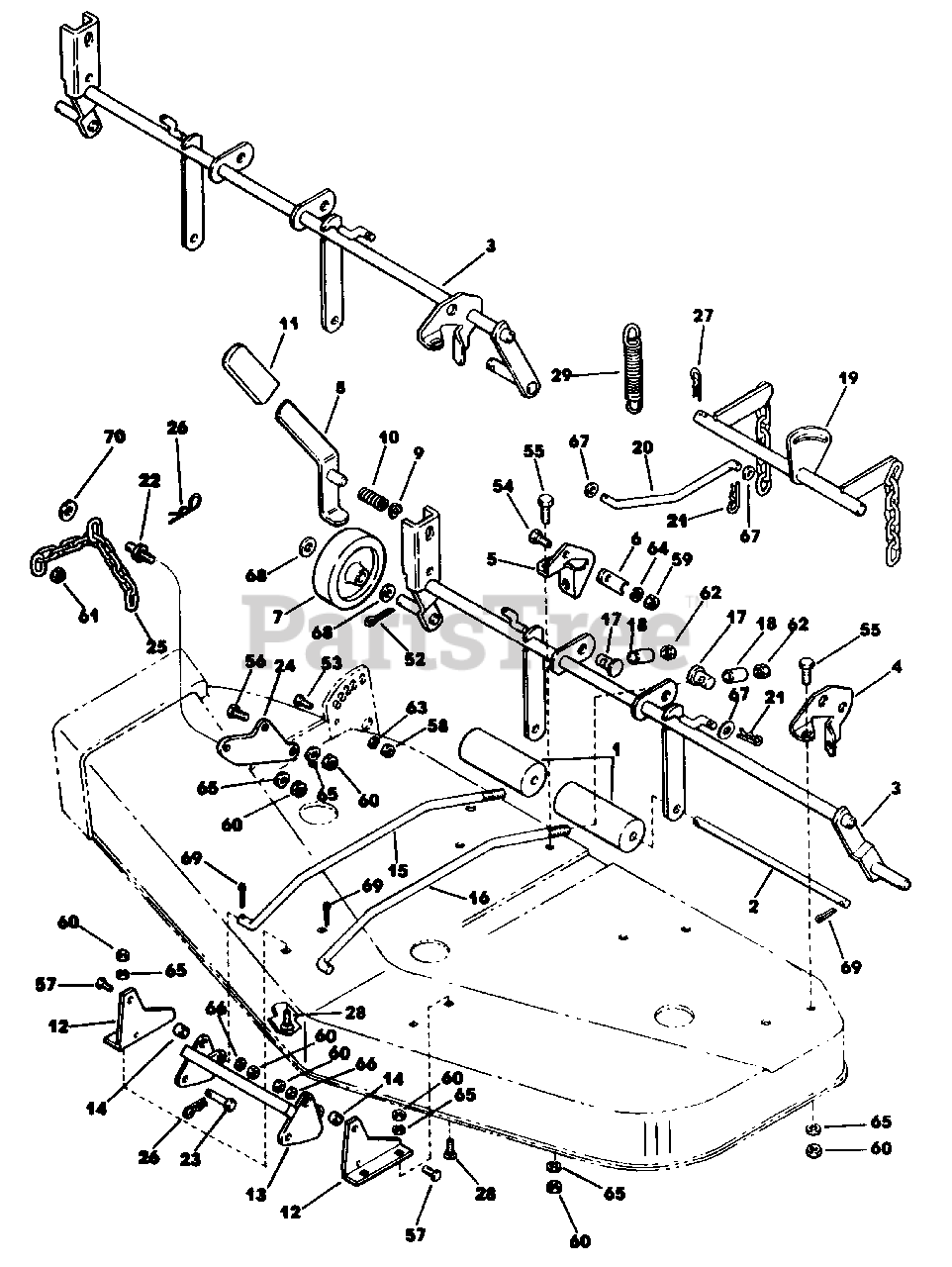

63706 - Lawn-Boy 42" Side-Discharge Mower Deck (SN: G00000001 - G99999999) (1988) WHEEL SUPPORT AND HANGER PARTS LIST-42" MOWER DECKS MODEL 63706 Parts Diagram

42" Side-Discharge Mower Deck

WHEEL SUPPORT AND HANGER PARTS LIST-42" MOWER DECKS MODEL 63706 Parts Diagram

  • Title

1

Lawn-Boy 11824

Roller
(Superseded to 702810)

$

$

Not available

2

Lawn-Boy 243596

Shaft, Roller
(Superseded to 702805)

$

$

Not available

3

Lawn-Boy 243536

Hanger Assembly, Wheel (42" Only)
(Superseded to 741457)

$

$

Not available

Lawn-Boy 243534

Hanger Assembly, Wheel (48" Only)
(Superseded to 741085)

$

$

Not available

4

Lawn-Boy 36715

Support, Wheel L.H. (42" Only)
(Superseded to 702822)

$

$

Not available

5

Lawn-Boy 36712

Support, Wheel Center
(Superseded to 702820)

$

$

Not available

6

Lawn-Boy 36698

Strap-Middle Support
(Superseded to 702801)

$

$

Not available

7

Lawn-Boy 208736

Wheel-Mower
(Superseded to 702804)

$

$

Not available

8

Lawn-Boy 200915

Handle Assembly-Height Adjustment
(Superseded to 740851)

$109.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 33322

Washer, Wave
(Superseded to 700404)

$

$

Not available

10

Lawn-Boy 6863

Spring
(Superseded to 701236)

$

$

Not available

11

Lawn-Boy 36697

Grip
(Superseded to 701190)

$

$

Not available

12

Lawn-Boy 234575

Bracket, Front Hanger Mounting
(Superseded to 703020)

$29.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 233057

Front Hanger Assembly
(Superseded to 741068)

$

$

Not available

14

Lawn-Boy 36338

Bushing, Pivot
(Superseded to 701189)

$

$

Not available

15

Lawn-Boy 233055

Rod, Level R.H. (42" Only)
(Superseded to 703416)

$

$

Not available

16

Lawn-Boy 233052

Rod, Level R.H. (48" Only)
(Superseded to 702825)

$85.99

$

Usually ships in 3-6 days

0

Lawn-Boy 233056

Rod, Level L.H. (42" Only)
(Superseded to 703417)

$

$

Not available

Lawn-Boy 233053

Rod, Level L.H. (48" Only)
(Superseded to 702827)

$85.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 234583

Pin, Pivot
(Superseded to 702799)

$46.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 16510

Spacer
(Superseded to 702812)

$

$

Not available

19

Lawn-Boy 243768

Bellcrank Assembly
(Superseded to 741072)

$

$

Not available

20

Lawn-Boy 234688

Link, Mower Lift
(Superseded to 702761)

$79.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 9678

Spring Clip
(Superseded to 700257)

$

$

Not available

22

Lawn-Boy 216814

Lift Clevis Pin
(Superseded to 700780)

$

$

Not available

23

Lawn-Boy 210361

Clevis Pin
(Superseded to 703031)

$

$

Not available

24

Lawn-Boy 234763

Arm, Front Lift
(Superseded to 703032)

$

$

Not available

25

Lawn-Boy 243535

Chain
(Superseded to 741073)

$

$

Not available

26

Lawn-Boy 1063

Spring Clip
(Superseded to 146428)

$

$

Not available

27

Lawn-Boy 2776

Spring Clip
(Superseded to 700599)

$

$

Not available

28

Lawn-Boy 36803

Bolt Carriage 3/8-16 x 3/4
(Superseded to 701911)

$

$

Not available

29

Lawn-Boy 23487

Spring
(Superseded to 702014)

$

$

Not available

52

Lawn-Boy 70731

Pin, Cotter 3/16 x 1" Plated
(Superseded to 3272-22)

$0.99

$

In Stock, Qty 5

0

53

Lawn-Boy 70090

Cap Screw, Hex Hd. 1/4-20 x 1-1/2 Plated, Grade 5
(Superseded to 700822)

$1.99

$

In Stock, Qty 10

0

54

Lawn-Boy 70143

Cap Screw Hex Hd. 5/16-18 x 3/4 Plated, Grade 5
(Superseded to 146209)

$1.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 70231

Cap Screw Hex Hd. 3/8-16 x 7/8 Plated, Grade 5
(Superseded to 323-5)

$1.49

$

Usually ships in 3-6 days

0

56

Lawn-Boy 70235

Cap Screw Hex Hd. 3/8-16 x 1" Plated, Grade 5
(Superseded to 700973)

$

$

Not available

57

Lawn-Boy 70254

Cap Screw Hex Hd. 3/8-16 x 1-3/4 Plated, Grade 5
(Superseded to 146376)

$

$

Not available

58

Lawn-Boy 70545

Nut, Hex 1/4-20 Plated
(Superseded to 146254)

$

$

Not available

59

Lawn-Boy 70549

Nut, Hex 5/16-18 Plated
(Superseded to 146259)

$

$

Not available

60

Lawn-Boy 70553

Nut, Hex 3/8-16 Plated
(Superseded to 146211)

$3.49

$

Usually ships in 3-6 days

0

61

Lawn-Boy 70631

Nut, Hex Cone Lock 3/8-16 Plated
(Superseded to 700032)

$

$

Not available

62

Lawn-Boy 70633

Nut, Hex Cone Lock 1/2-13 Plated
(Superseded to 700687)

$

$

Not available

63

Lawn-Boy 70643

Washer, Spring Lock 1/4 Plated
(Superseded to 3253-3)

$0.99

$

In Stock, Qty 20+

0

64

Lawn-Boy 70646

Washer, Spring Lock 5/16 Plated
(Superseded to 325-34)

$3.99

$

In Stock, only 4 left!

0

65

Lawn-Boy 70649

Washer, Spring Lock 3/8 Plated
(Superseded to 146260)

$

$

Not available

66

Lawn-Boy 70703

Washer, Flat 3/8 Plated
(Superseded to 700050)

$

$

Not available

67

Lawn-Boy 70687

Washer, Flat SAE 3/8 Plated
(Superseded to 146304)

$

$

Not available

68

Lawn-Boy 70649

Washer, Flat SAE 5/8 Plated
(Superseded to 146260)

$

$

Not available

69

Lawn-Boy 70721

Cotter Pin 1/8 x 3/4 Plated
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

70

Lawn-Boy 70685

Washer, Flat SAE 5/16 Plated
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0
