63706 - Lawn-Boy 42" Side-Discharge Mower Deck (SN: G00000001 - G99999999) (1988) MOWER DECK PARTS LIST-42" MOWER DECK FOR YARD TRACTORS Parts Diagram

42" Side-Discharge Mower Deck

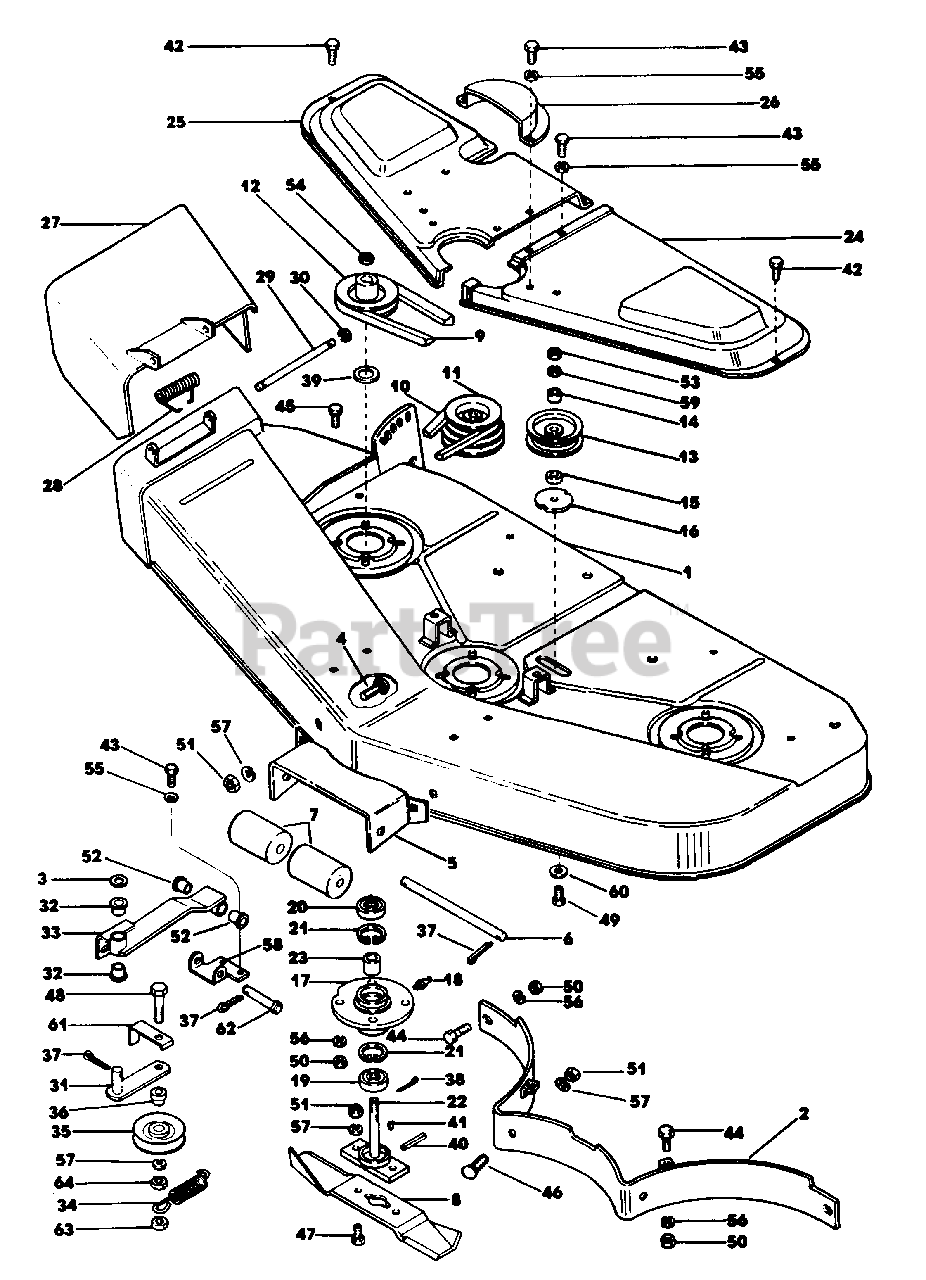

MOWER DECK PARTS LIST-42" MOWER DECK FOR YARD TRACTORS Parts Diagram

  • Title

1

Lawn-Boy 242272

Cutter Housing & Decal Assembly
(Superseded to 741449)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 242363

Baffle Assembly
(Superseded to 740986)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 31434

Washer Special
(Superseded to 702813)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 70449

Bolt, Carriage 3/8-16 x 3/4 Plated
(Superseded to 3231-1)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 242255

Bracket, Roller
(Superseded to 702851)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

6

Lawn-Boy 243570

Shaft, Roller
(Superseded to 701212)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 228574

Roller
(Superseded to 701203)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$68.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 37059

Blade
(Superseded to 702855)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 11793

V-Belt, Deck
(Superseded to 702814)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$100.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 235000

V-Belt, Drive
(Superseded to 702829)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$56.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 33031

Pulley, Drive
(Superseded to 702816)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 33032

Pulley, Blade Spindle
(Superseded to 702818)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

13

Lawn-Boy 11795

Pulley, Idler
(Superseded to 702815)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 11742

Spacer
(Superseded to 702108)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 11753

Spacer
(Superseded to 702109)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 12817

Washer
(Superseded to 702811)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$60.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 234192

Spindle Housing
(Superseded to 700491)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

18

Lawn-Boy 236675

Grease Fitting
(Superseded to 302-5)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 234191

Bearing
(Superseded to 93-2559)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$21.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 11080

Bearing
(Superseded to 109842)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$31.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 4637

Ring, Snap
(Superseded to 32120-62)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$4.99

$

In Stock, Qty 8

0

22

Lawn-Boy 11760

Spindle Assembly
(Superseded to 740082)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$442.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 234189

Sleeve
(Superseded to 700498)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

24

Lawn-Boy 233019

Cover Assembly-L.H.
(Superseded to 740964)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

25

Lawn-Boy 237691

Cover Assembly-R.H.
(Superseded to 740967)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

26

Lawn-Boy 237680

Guard, Drive Belt
(Superseded to 702834)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

27

Lawn-Boy 239482

Chute Extension Assembly
(Superseded to 740987)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$341.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 212759

Spring Chute
(Superseded to 710273)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

29

Lawn-Boy 212757

Shaft, Chute
(Superseded to 701198)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 212677

"E" Ring
(Superseded to 701197)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 237677

Idler Arm Assembly
(Superseded to 740975)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

32

Lawn-Boy 11961

Bushing
(Superseded to 701234)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$5.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 237688

Idler Pivot Assembly w/Bushings
(Superseded to 740979)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$272.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 237671

Spring Idler Arm
(Superseded to 702795)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$49.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 211843

Pulley, Idler Arm
(Superseded to 702824)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

36

Lawn-Boy 207158

Spacer
(Superseded to 700090)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

37

Lawn-Boy 70721

Pin Cotter 1/8 x 3/4 Plated
(Superseded to 3272-10)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 14

0

38

Lawn-Boy 70726

Pin Cotter 1/8 x 1-1/2 Plated
(Superseded to 3272-13)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 9

0

39

Lawn-Boy 1230

Washer

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

40

Lawn-Boy 70784

Pin, Roll 5/32 x 1-1/2 Grade 5
(Superseded to 32121-35)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

Usually ships in 3-6 days

0

41

Lawn-Boy 70812

Key, Woodruff 3/16 x 3/4
(Superseded to 3257-5)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$5.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 213294

Thread Forming Screw, Hex Hd. 1/4-20 x 1/2
(Superseded to 701660)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 70090

Cap Screw, Hex Hd. 1/4-20 x 1/2 Plated, Grade 5
(Superseded to 700822)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

In Stock, Qty 10

0

44

Lawn-Boy 70143

Cap Screw, Hex Hd. 5/16-18x 3/4 Plated, Grade 5
(Superseded to 146209)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 70151

Cap Screw, Hex Hd. 5/16-18 x 1" Plated, Grade 5
(Superseded to 700342)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$2.49

$

Usually ships in 3-6 days

0

46

Lawn-Boy 36803

Bolt, Carriage Short Neck 3/8-16 x 3/4
(Superseded to 701911)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

47

Lawn-Boy 70235

Cap Screw, Hex Hd. 3/8-16 x 1" Plated, Grade 5
(Superseded to 700973)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

48

Lawn-Boy 71191

Cap Screw Hex Hd. 3/8-16 x 1-7/8 Plated, Grade 5

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Currently unavailable

49

Lawn-Boy 71195

Cap Screw, Hex Hd. 5/8-11 x 2" Plated, Grade 5
(Superseded to 702106)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

50

Lawn-Boy 70549

Nut, Hex 5/16-18 Plated
(Superseded to 146259)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

51

Lawn-Boy 70553

Nut, Hex 3/8-16 Plated
(Superseded to 146211)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

52

Lawn-Boy 11971

Bushing
(Superseded to 702841)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

53

Lawn-Boy 70585

Nut, Hex Jam 5/8-11 Plated
(Superseded to 702806)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

54

Lawn-Boy 10933

Nut, Hex Slotted 3/4-16
(Superseded to 700499)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

55

Lawn-Boy 70643

Washer, Spring Lock 1/4 Plated
(Superseded to 3253-3)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

56

Lawn-Boy 70646

Washer, Spring Lock 5/16 Plated
(Superseded to 325-34)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.99

$

In Stock, only 2 left!

0

57

Lawn-Boy 70649

Washer, Spring Lock 3/8 Plated
(Superseded to 146260)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

58

Lawn-Boy 237672

Idler Pivot Bracket
(Superseded to 702830)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

59

Lawn-Boy 70657

Washer, Spring Lock 5/8 Plated
(Superseded to 702103)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

60

Lawn-Boy 70694

Washer, Flat SAE 5/8 Plated
(Superseded to 146369)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

61

Lawn-Boy 237670

Belt Guide
(Superseded to 702796)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

62

Lawn-Boy 237668

Clevis Pin-Pivot
(Superseded to 702798)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

63

Lawn-Boy 70605

Nut, Hex Self Locking 3/8-16 Plated
(Superseded to 700140)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

64

Lawn-Boy 70574

Nut, Hex Jam 3/8-16 Plated
(Superseded to 701512)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available
