637 (990763) - Simplicity Yeoman Lawn Tractor, Manual Electric & Interloc Group Parts Diagram

Yeoman Lawn Tractor, Manual

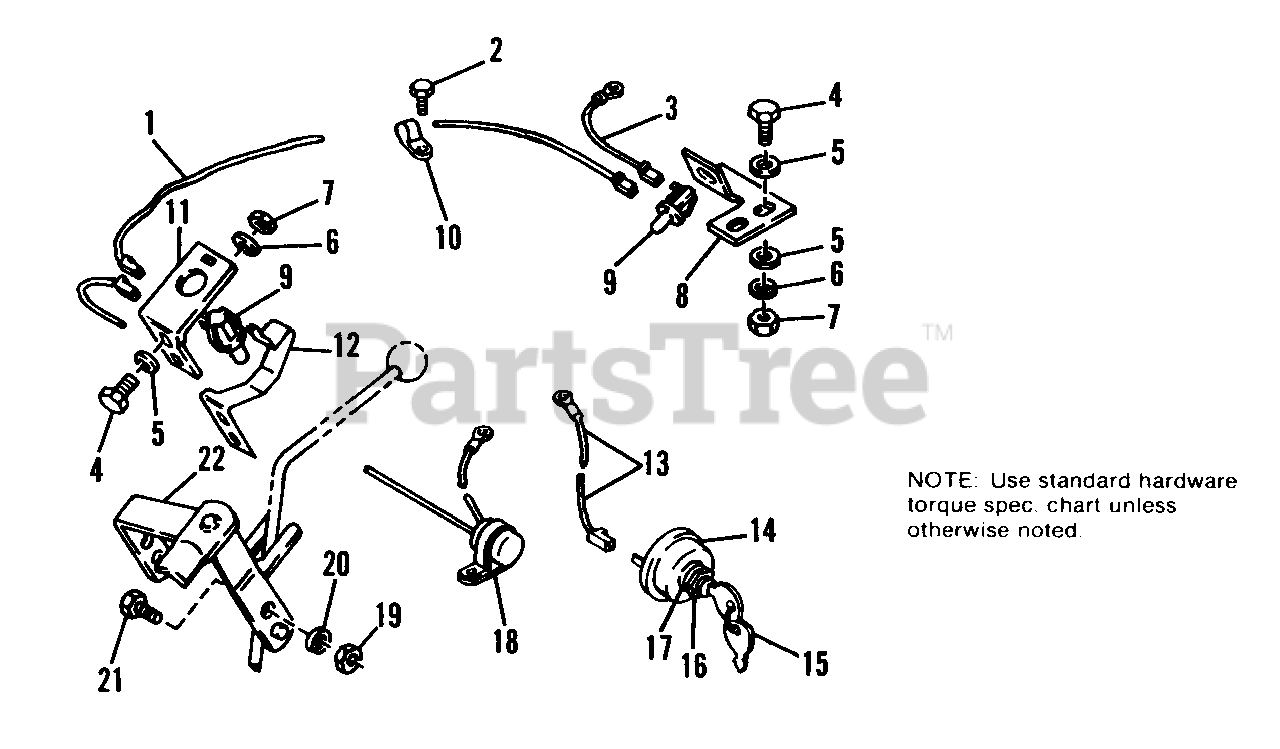

Electric & Interloc Group Parts Diagram

  • Title

1

Simplicity 174650

WIRE

$

$

Not available

2

Simplicity 2829000

SCREW, Hex, Taptite, 1/4-20 x 3/8

$

$

Not available

3

Simplicity 174652

WIRE
(Superseded to 708023)

$45.99

$

Usually ships in 2-12 days

0

4

Simplicity 2827340

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$

$

Not available

5

Simplicity 2816955

WASHER, Plain, 3/16

$

$

Not available

6

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

7

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 174701

BRACKET

$

$

Not available

9

Simplicity 1609283SM

SWITCH

$

$

Not available

10

Simplicity 2172434SM

CLIP, Cable

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 174700

BRACKET

$

$

Not available

12

Simplicity 174619

CLIP, Spring
(Superseded to 709160)

$159.99

$

Usually ships in 2-12 days

0

13

Simplicity 174651

WIRE

$

$

Not available

14

Simplicity 174518

SWITCH, W/Keys

$

$

Not available

15

Simplicity 1717163SM

KEYS

$8.99

$

In Stock, Qty 20+

0

16

Simplicity 122235

NUT, Hex Special

$

$

Not available

17

Simplicity 928636

LOCKWASHER, Int., 9/16

$

$

Not available

18

Simplicity 174653

IGNITION, Interlock

$

$

Not available

19

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

22

Simplicity 170172

PIVOT ASSY.

$

$

Not available
