63692 - Lawn-Boy Remote Oil Filter (SN: 800000001 - 899999999) (1988) REMOTE OIL FILTER PARTS AND PARTS LIST MODEL 63692 Parts Diagram

Remote Oil Filter

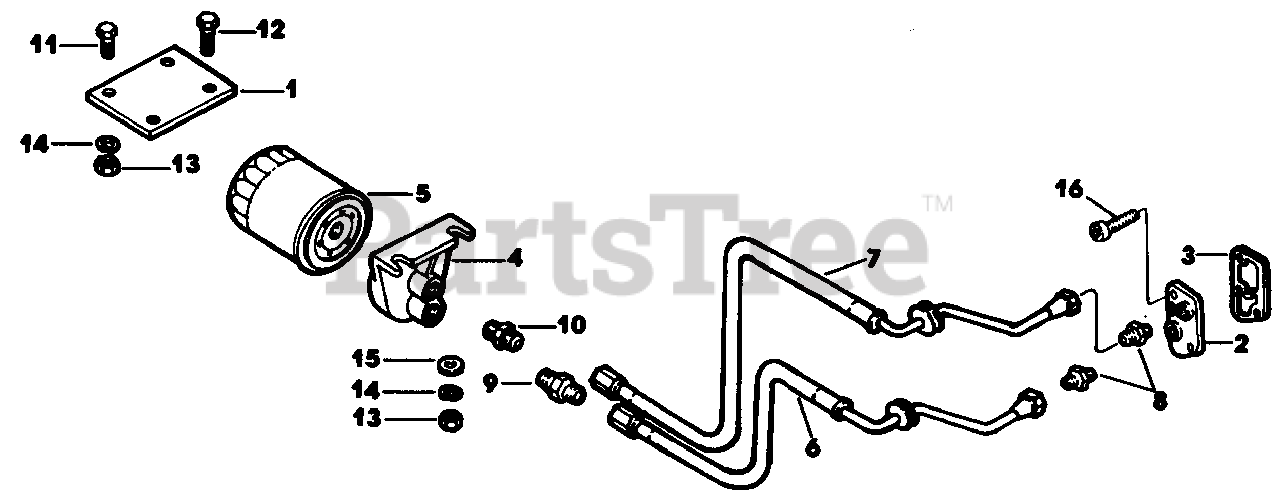

REMOTE OIL FILTER PARTS AND PARTS LIST MODEL 63692 Parts Diagram

  • Title

1

Lawn-Boy 242047

Oil Filter Bracket
(Superseded to 707503)

$

$

Not available

2

Lawn-Boy 242048

Oil Filter By-Pass Cover
(Superseded to 707504)

$

$

Not available

3

Lawn-Boy 242049

Gasket-Filter Cover

$

$

Not available

4

Lawn-Boy 242050

Remote Filter Adaptor
(Superseded to 707506)

$

$

Not available

5

Lawn-Boy 242051

Oil Filter

$

$

Not available

6

Lawn-Boy 242052

Oil Line-Red Stripe
(Superseded to 707507)

$

$

Not available

7

Lawn-Boy 242053

Oil Line-White Stripe
(Superseded to 707508)

$

$

Not available

8

Lawn-Boy 242054

Reducing Connector

$

$

Not available

9

Lawn-Boy 242055

Nipple-Hexagon
(Superseded to 707510)

$

$

Not available

10

Lawn-Boy 242056

Reducing Connector

$

$

Not available

11

Lawn-Boy 70143

Cap Screw, Hex Hd. 5/16-18 x 3/4 Plated, Grade 5
(Superseded to 146209)

$1.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 70151

Cap Screw, Hex Hd. 5/16-18 x 1" Plated, Grade 5
(Superseded to 700342)

$2.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 70549

Nut, Hex 5/16-18 Plated
(Superseded to 146259)

$

$

Not available

14

Lawn-Boy 70646

Washer, Spring Lock 5/16 Plated
(Superseded to 325-34)

$3.99

$

In Stock, only 4 left!

0

15

Lawn-Boy 70685

Washer, Flat SAE 5/16 Plated
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 71419

Cap Screw, Hex Socket Hd. 5/16 x 3/4 Black Oxide

$

$

Currently unavailable
