63680 - Lawn-Boy 42" Snow Thrower Attachment (SN: J00000001 - J99999999) (1990) COLLECTOR HOUSING PARTS LIST-42" SNOWTHROWER Parts Diagram

42" Snow Thrower Attachment

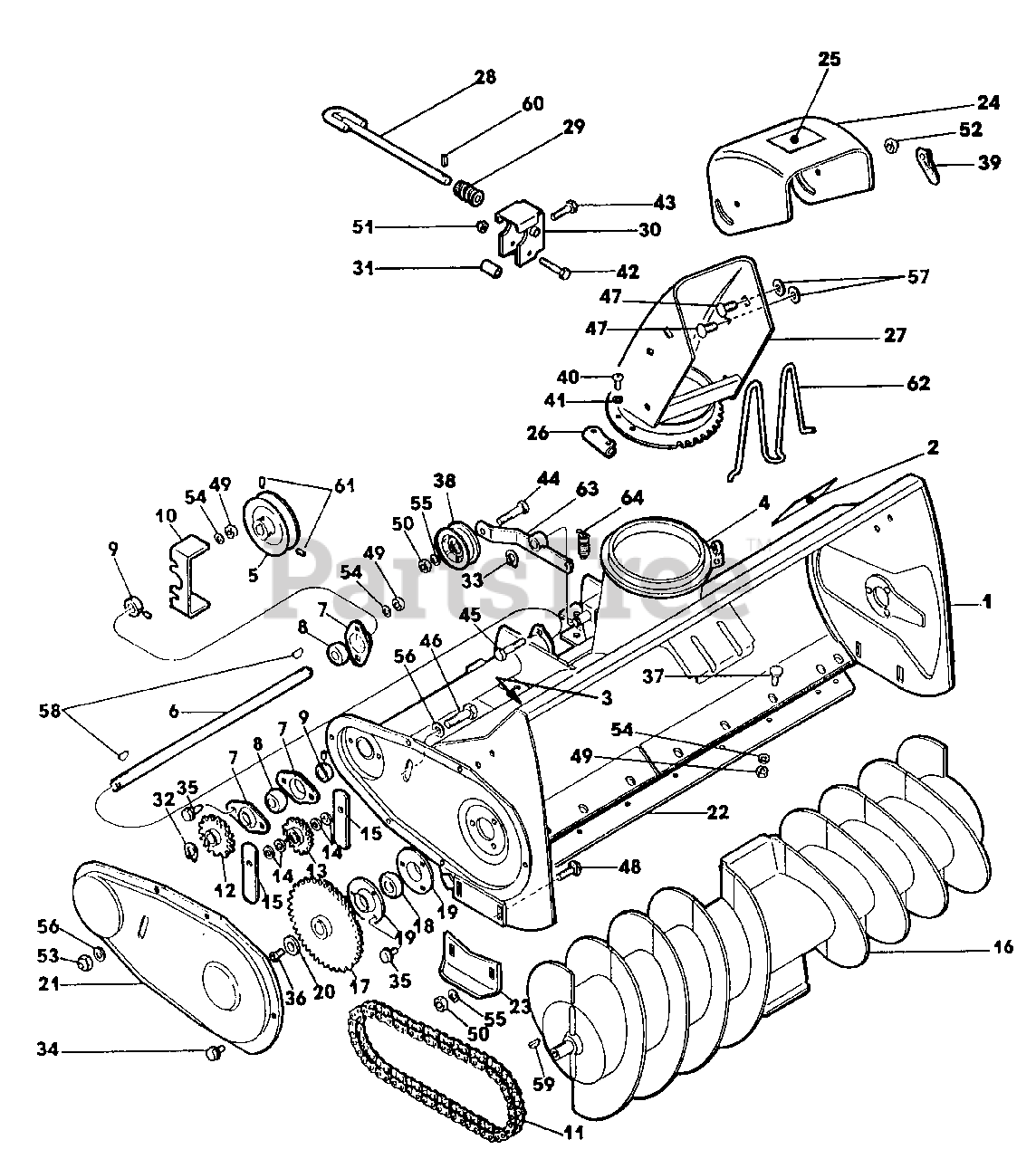

COLLECTOR HOUSING PARTS LIST-42" SNOWTHROWER Parts Diagram

  • Title

1

Lawn-Boy 741116

Collector Housing Ass'y. w/Decals

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 146227

Decal-Warning

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 700147

Decal-Danger

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 702871

Chute Collar

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately. Chute Collar is integral part of Collector Housing Assembly and is included when complete assembly (Ref. No.1) is ordered.Replacement of collar requires cutt

$

$

Not available

5

Lawn-Boy 702959

Pulley

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

6

Lawn-Boy 703100

Output Shaft

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 700083

Flangette Stamping

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$5.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 700542

Bearing

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 701658

Collar w/Setscrew

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$37.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 703099

Belt Retainer

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 741028

Roller Chain

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 741027

Sprocket-Drive

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

13

Lawn-Boy 702949

Idler Sprocket

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 702813

Spacer

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 702963

Strip

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 741132

Auger Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 741024

Sprocket-Auger

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

18

Lawn-Boy 702940

Bearing

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

19

Lawn-Boy 702941

Flangette

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

20

Lawn-Boy 702948

Washer

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

21

Lawn-Boy 702946

Drive Cover

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

22

Lawn-Boy 703097

Scaper Blade

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

23

Lawn-Boy 702947

Skid

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$59.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 740995

Deflector & Decal Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

25

Lawn-Boy 702758

Decal-Danger
(Superseded to 94-8079)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$11.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 702896

Retainer

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$21.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 741000

Discharge Chute And Gear

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

28

Lawn-Boy 741036

Worm Shaft

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

29

Lawn-Boy 700058

Worm Gear

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 700086

Worm Support

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

31

Lawn-Boy 700052

Spacer-Worm Support

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

32

Lawn-Boy 700097

Snap Ring

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, only 1 left!

0

33

Lawn-Boy 700091

Snap Ring

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

34

Lawn-Boy 700094

Lock Screw
(Superseded to 112-0167)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$6.49

$

In Stock, only 4 left!

0

35

Lawn-Boy 702938

Lock Screw

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

36

Lawn-Boy 702942

Machine Screw, Hex Socket Flat Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

37

Lawn-Boy 146511

Wafer Hd. Bolt

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

38

Lawn-Boy 702977

Idler Pulley

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

39

Lawn-Boy 702895

Wing Nut

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

40

Lawn-Boy 702897

Thread Forming Screw

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

41

Lawn-Boy 702898

Lock Washer #6

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

42

Lawn-Boy 146377

Cap Screw, Hex Hd
(Superseded to 321-4)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 20+

0

43

Lawn-Boy 146210

Cap Screw, Hex Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

44

Lawn-Boy 701289

Cap Screw, Hex Hd
(Superseded to 323-10)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

45

Lawn-Boy 146505

Cap Screw, Hex Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

46

Lawn-Boy 702966

Cap Screw, Hex Hd

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

47

Lawn-Boy 700031

Bolt, Carriage
(Superseded to 3231-1)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 20+

0

48

Lawn-Boy 700685

Bolt, Carriage

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

49

Lawn-Boy 146259

Nut, Hex

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

50

Lawn-Boy 146211

Nut, Hex

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

51

Lawn-Boy 146375

Nut, Hex Cone Lock

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.49

$

Usually ships in 3-6 days

0

52

Lawn-Boy 700032

Nut, Hex Cone Lock

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

53

Lawn-Boy 700687

Nut, Hex Cone Lock

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

54

Lawn-Boy 146258

Washer, Spring Lock
(Superseded to 3253-4)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

55

Lawn-Boy 146260

Washer, Spring Lock

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

56

Lawn-Boy 146204

Washer, Flat

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

57

Lawn-Boy 700049

Washer, Flat

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

58

Lawn-Boy 700081

Key, Woodruff
(Superseded to 3257-5)

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$5.99

$

In Stock, only 1 left!

0

59

Lawn-Boy 702965

Key, Woodruff

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

60

Lawn-Boy 700213

Roll Pin

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

61

Lawn-Boy 700029

Set Screw, Hex Socket Hd. Cup Pt

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

62

Lawn-Boy 702894

Discharge Guard

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

63

Lawn-Boy 741136

Idler Arm

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

64

Lawn-Boy 703101

Spring-Idler

Note: NOTE: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available
