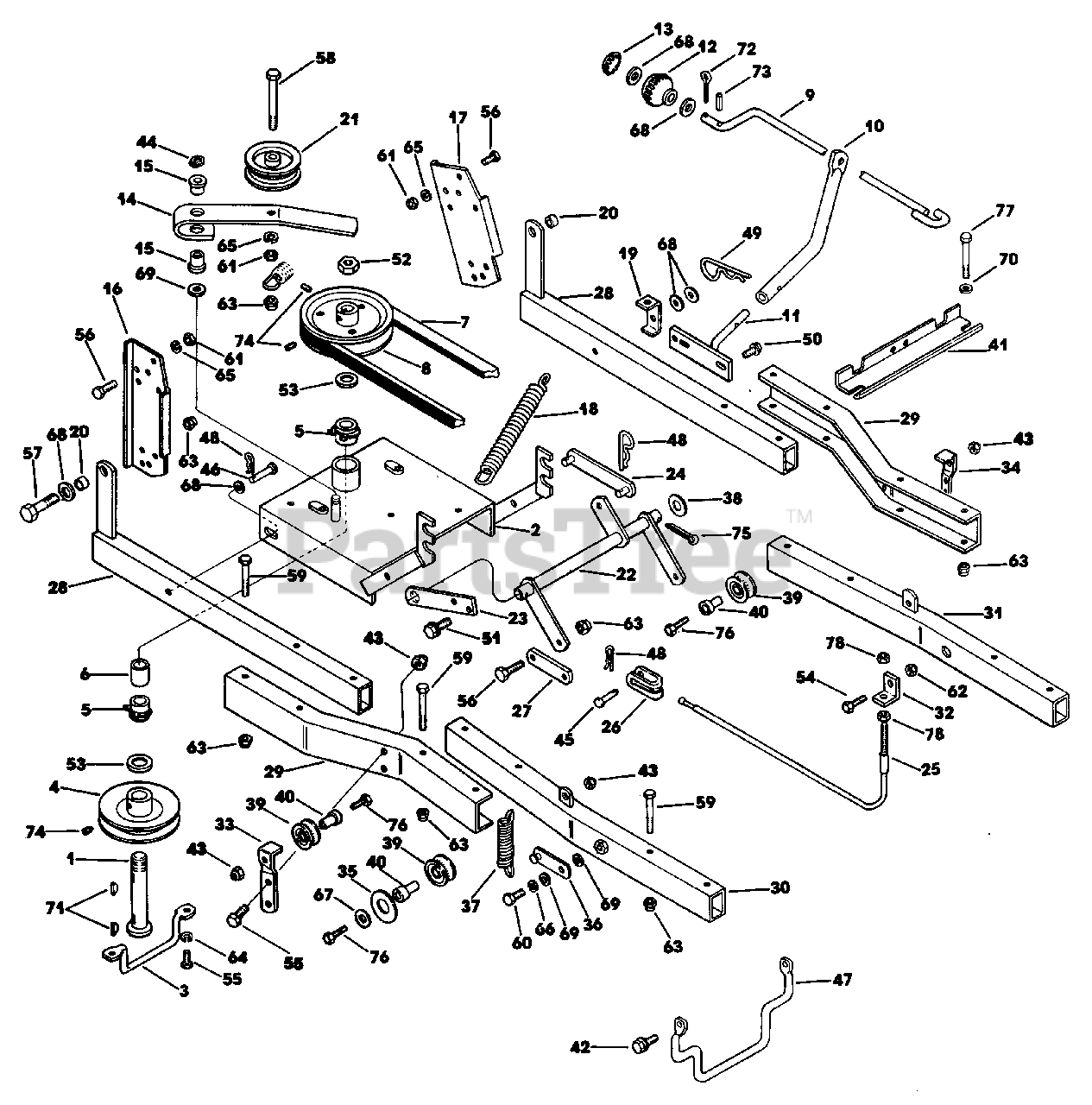

SNOW THROWER FRAME, DRIVE AND LIFT PARTS LIST-36" SNOWTHROWER MODEL 63679 Parts Diagram

  • Title

1

Lawn-Boy 200628

Shaft Assembly
(Superseded to 741012)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$302.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 236929

Pulley Support Assembly
(Superseded to 741112)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$859.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 237258

Belt Guard
(Superseded to 702930)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 212263

Pulley
(Superseded to 741015)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

5

Lawn-Boy 243674

Bearing w/Snap Ring
(Superseded to 741022)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

6

Lawn-Boy 200484

Spacer
(Superseded to 702937)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 212776

V-Belt (Primary)
(Superseded to 703078)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

8

Lawn-Boy 234490

Pulley
(Superseded to 741110)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 237465

Chute Control Assembly
(Superseded to 741002)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

10

Lawn-Boy 237468

Tube-Chute Control Support
(Superseded to 702905)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$245.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 240324

Support Assembly-Chute Control
(Superseded to 740940)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 11528

Knob
(Superseded to 700189)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$34.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 210709

Plug Button & Decal Assembly
(Superseded to 740994)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 234492

Idler Arm Assembly w/Bushing
(Superseded to 741034)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 11961

Bushing
(Superseded to 701234)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$5.49

$

Usually ships in 3-6 days

0

16

Lawn-Boy 242570

Attachment Mounting Bracket-R.H.
(Superseded to 702363)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 242571

Attachment Mounting Bracket-L.H.
(Superseded to 702364)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

18

Lawn-Boy 200520

Spring Idler
(Superseded to 703080)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

19

Lawn-Boy 237239

Spring Anchor
(Superseded to 703079)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

20

Lawn-Boy 12173

Spacer
(Superseded to 702633)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

21

Lawn-Boy 6588

Idler Pulley
(Superseded to 701070)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

22

Lawn-Boy 240205

Bellcrank Crank Assembly
(Superseded to 740942)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

23

Lawn-Boy 236888

Lift Support Arm
(Superseded to 702618)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

24

Lawn-Boy 236906

Lift Link Assembly
(Superseded to 740935)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

25

Lawn-Boy 242837

Lift Cable
(Superseded to 740932)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

26

Lawn-Boy 214130

Lift Clevis
(Superseded to 702608)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

27

Lawn-Boy 237650

Bar-Cable Connector
(Superseded to 702610)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

28

Lawn-Boy 236910

Rear Frame Assembly
(Superseded to 741016)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$632.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 242842

Frame Connecting Channel
(Superseded to 702932)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 242840

Front Frame Assembly
(Superseded to 741031)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$762.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 242841

Front Frame Assembly L.H.
(Superseded to 741032)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

32

Lawn-Boy 242839

Bracket, Cable Adjustment
(Superseded to 702609)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

33

Lawn-Boy 242835

Plate-Roller Mounting-R.H.
(Superseded to 702931)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

34

Lawn-Boy 242836

Plate-Roller Mounting-L.H.
(Superseded to 702945)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

35

Lawn-Boy 242846

Washer
(Superseded to 702975)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

36

Lawn-Boy 236921

Spring Adjustment Arm Assembly
(Superseded to 741029)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

37

Lawn-Boy 237464

Spring-Assist
(Superseded to 702632)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

38

Lawn-Boy 24568

Washer
(Superseded to 702614)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

39

Lawn-Boy 207854

Roller-Cable
(Superseded to 701444)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

40

Lawn-Boy 217438

Spacer-Roller
(Superseded to 701443)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

41

Lawn-Boy 242843

Frame Stop
(Superseded to 702933)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

42

Lawn-Boy 213294

Thread Forming Screw, Hex Hd. 1/4-20 x 1/2
(Superseded to 701660)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 70629

Nut, Hex Cone Lock 5/16-18 Plated
(Superseded to 146501)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

In Stock, only 3 left!

0

44

Lawn-Boy 11704

Snap Ring
(Superseded to 700319)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

45

Lawn-Boy 218910

Clevis Pin
(Superseded to 702607)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

46

Lawn-Boy 236903

Clevis Pin
(Superseded to 702920)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

47

Lawn-Boy 237240

Belt Guide (Engine)
(Superseded to 702629)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

48

Lawn-Boy 1063

Spring Clip
(Superseded to 146428)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

49

Lawn-Boy 2776

Spring Clip
(Superseded to 700599)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

50

Lawn-Boy 213298

Thread Forming Screw, Hex Hd. 5/16-18 x 3/4
(Superseded to 700093)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

51

Lawn-Boy 213299

Thread Forming Screw, Hex Hd. 5/16-18 x 1"
(Superseded to 701243)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$2.99

$

In Stock, Qty 20+

0

52

Lawn-Boy 14170

Nut, Hex Center Lock 5/8-18
(Superseded to 702939)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

53

Lawn-Boy 3881

Thrust Washer
(Superseded to 700162)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

54

Lawn-Boy 70097

Cap Screw, Hex Hd. 1/4-20 x 3/4 Plated, Grade 5
(Superseded to 321-4)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 20+

0

55

Lawn-Boy 70143

Cap Screw, Hex Hd. 5/16-18 x 3/4 Plated, Grade 5
(Superseded to 146209)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 70235

Cap Screw, Hex Hd. 3/8-16 x 1" Plated, Grade 5
(Superseded to 700973)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

57

Lawn-Boy 70249

Cap Screw, Hex Hd. 3/8-16 x 1-1/2" Plated, Grade 5
(Superseded to 146504)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

58

Lawn-Boy 70878

Cap Screw, Hex Hd. 3/8-16 x 2-1/4" Plated, Grade 5
(Superseded to 323-11)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$2.49

$

In Stock, Qty 20+

0

59

Lawn-Boy 71207

Cap Screw, Hex Hd. 3/8-16 x 2-3/4" Plated, Grade 5
(Superseded to 146307)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

60

Lawn-Boy 71175

Cap Screw, Hex Hd. 1/2-13 x 1" Plated, Grade 5
(Superseded to 702105)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

61

Lawn-Boy 70553

Nut, Hex 3/8-16 Plated
(Superseded to 146211)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

62

Lawn-Boy 70628

Nut, Hex Cone Lock 1/4-20 Plated
(Superseded to 146375)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$2.49

$

Usually ships in 3-6 days

0

63

Lawn-Boy 70631

Nut, Hex Cone Lock 3/8-16 Plated
(Superseded to 700032)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

64

Lawn-Boy 70646

Washer, Spring Lock 5/16 Plated
(Superseded to 325-34)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.99

$

In Stock, only 2 left!

0

65

Lawn-Boy 70649

Washer, Spring Lock 3/8 Plated
(Superseded to 146260)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

66

Lawn-Boy 70655

Washer, Spring Lock 1/2 Plated
(Superseded to 701068)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

67

Lawn-Boy 70701

Washer Flat 5/16 Plated
(Superseded to 146205)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

68

Lawn-Boy 70687

Washer, Flat SAE 3/8 Plated
(Superseded to 146304)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

69

Lawn-Boy 70691

Washer, Flat SAE 1/2 Plated
(Superseded to 146204)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

70

Lawn-Boy 70703

Washer, Flat 3/8 Plated
(Superseded to 700050)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

71

Lawn-Boy 70811

Key, Woodruff 3/16 x 5/8 Grade 5
(Superseded to 3257-32)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$2.99

$

In Stock, Qty 11

0

72

Lawn-Boy 70721

Pin, Cotter 1/8 x 3/4 Plated
(Superseded to 3272-10)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 14

0

73

Lawn-Boy 70750

Pin, Roll 1/8 x 3/4 Plated
(Superseded to 700213)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

74

Lawn-Boy 70498

Set Screw, Hex Socket Hd. Cup Pt. 5/16-18 x 5/16 Grade 5
(Superseded to 700029)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

75

Lawn-Boy 70971

Pin, Cotter 5/32 x 1-1/4" Plated
(Superseded to 3272-17)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$2.99

$

In Stock, Qty 5

0

76

Lawn-Boy 70164

Cap Screw, Hex Hd. 5/16-18 x 1-1/2" Plated, Grade 5
(Superseded to 146210)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

77

Lawn-Boy 70270

Cap Screw, Hex Hd. 3/8-16 x 3" Plated, Grade 5
(Superseded to 323-14)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.99

$

In Stock, Qty 20+

0

78

Lawn-Boy 70549

Nut, Hex 5/16-18 Plated
(Superseded to 146259)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available
