63664 - Lawn-Boy 40" Tiller Attachment (SN: J00000001 - J99999999) (1990) TILLER DRIVE PARTS LIST Parts Diagram

40" Tiller Attachment

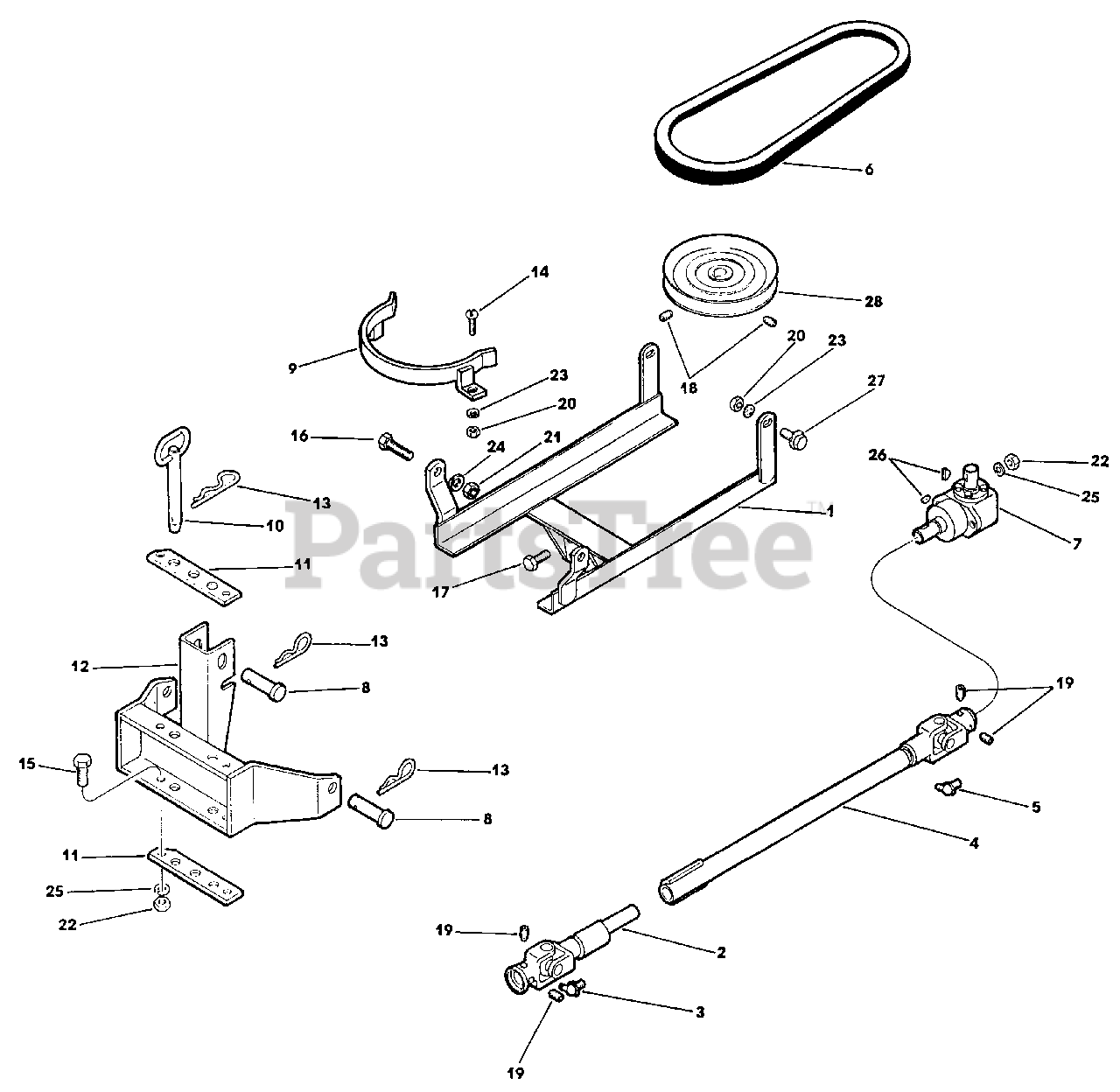

TILLER DRIVE PARTS LIST Parts Diagram

  • Title
1

Lawn-Boy 741490

Support Assembly-P.T.O

$

$

Not available

2

Lawn-Boy 741488

Assembly-Universal Joint

$

$

Not available

3

Lawn-Boy 703455

Grease Fitting

$

$

Not available

4

Lawn-Boy 741489

Assembly-Drive Tube

$

$

Not available

5

Lawn-Boy 703455

Grease Fitting

$

$

Not available

6

$63.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 741485

Gear Box

$

$

Not available

8

Lawn-Boy 700598

Clevis Pin

$

$

Not available

9

Lawn-Boy 741484

Guard Assembly-Belt

$

$

Not available

10

Lawn-Boy 741173

Hitch Pin

$159.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 703438

Wear Plate

$103.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 741494

Assembly-Hitch Plate

$

$

Not available

13

Lawn-Boy 700599

Spring Clip

$

$

Not available

14

Lawn-Boy 700342

Machine Screw Round Hd

$2.49

$

Usually ships in 3-6 days

0

15

Lawn-Boy 146207

Cap Screw, Hex Hd

$

$

Not available

16

Lawn-Boy 703443

Cap Screw, Hex Hd.

$

$

Not available

17

Lawn-Boy 701194

Cap Screw, Hex Hd

$

$

Not available

18

Lawn-Boy 700029

Set Screw, Hex Socket Hd. Cup Pt

$

$

Not available

19

Lawn-Boy 703447

Set Screw, Hex Socket Hd. Cup Pt

$

$

Not available

20

Lawn-Boy 146259

Nut, Hex

$

$

Not available

21

Lawn-Boy 702101

Nut, Hex

$

$

Not available

22

Lawn-Boy 146211

Nut, Hex

$3.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 146258

Washer, Spring Lock
(Superseded to 3253-4)

$0.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 702103

Washer, Spring Lock

$

$

Not available

25

Lawn-Boy 146260

Washer, Spring Lock

$

$

Not available

26

Lawn-Boy 700081

Key, Woodruff
(Superseded to 3257-5)

$5.99

$

In Stock, only 1 left!

0

27

Lawn-Boy 702622

Screw, Thread Forming
(Superseded to 701243)

$2.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 741486

Pulley-7"

$

$

Not available
