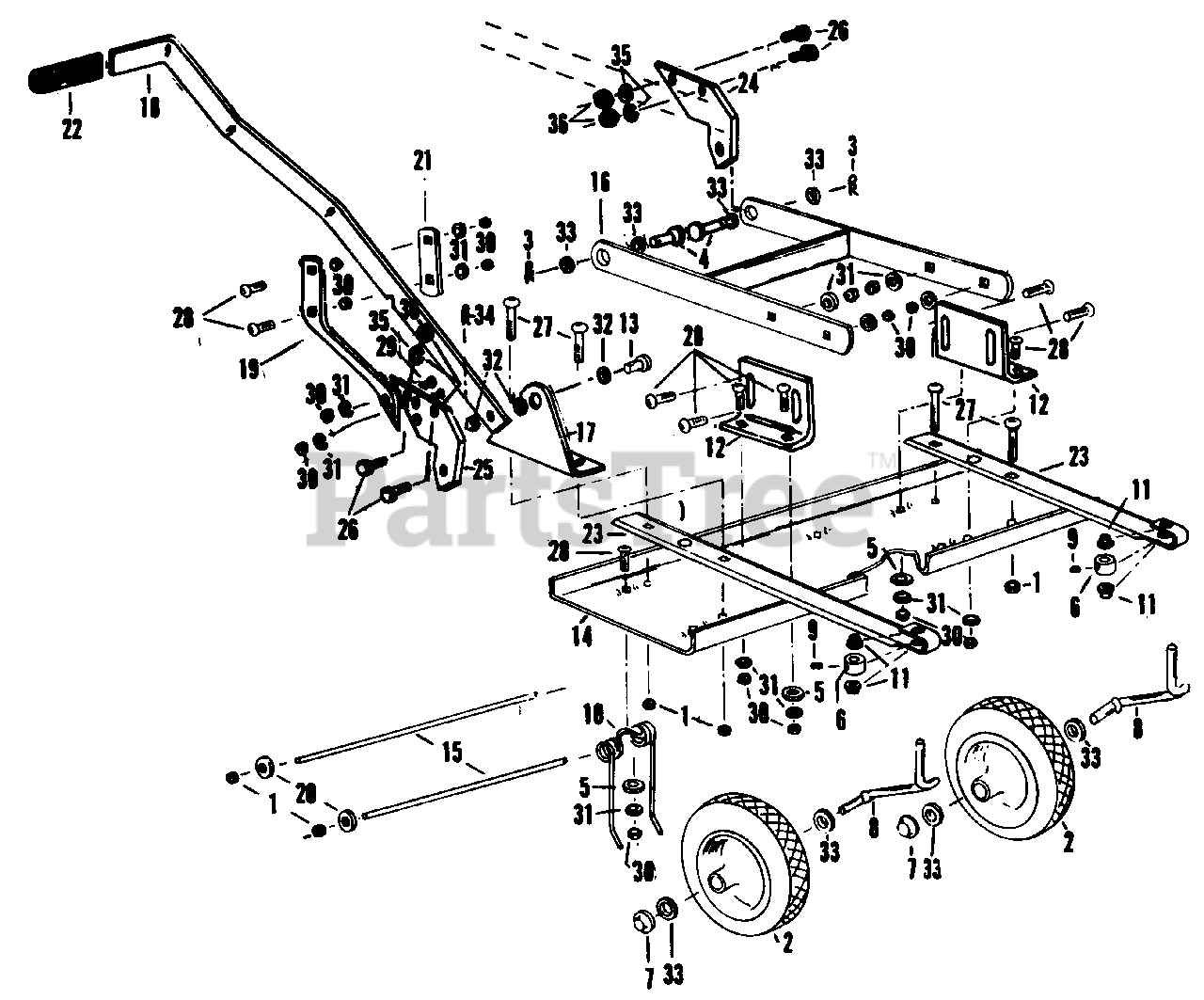

63656 - Lawn-Boy Dethatcher Attachment (SN: G00000001 - G99999999) (1988) THATCHER PARTS AND PARTS LIST MODEL 63656 Parts Diagram

Dethatcher Attachment

THATCHER PARTS AND PARTS LIST MODEL 63656 Parts Diagram

  • Title

1

Lawn-Boy B-1673P

1/4" Hex lock nut

$

$

Currently unavailable

1

Lawn-Boy OC4402

FOOT, right hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

2

Lawn-Boy C-123

Gauge wheel

$

$

Currently unavailable

2

Lawn-Boy OC4403

FOOT, left hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

3

Lawn-Boy D-146P

1/8" Hairpin cotter

$

$

Currently unavailable

3

Lawn-Boy OC4404

GUARD, FOOT POCKET, right hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

4

Lawn-Boy H-341P

1/2" x 1" Clevis pin

$

$

Currently unavailable

4

Lawn-Boy OC4405

GUARD, FOOT POCKET, left hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

5

Lawn-Boy R-618

5/16" Special washer

$

$

Currently unavailable

5

Lawn-Boy OC4406

FRAME, FRONT PANEL

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

6

Lawn-Boy R-635

Locking collar

$

$

Currently unavailable

6

Lawn-Boy OC4407

BRACE, FRONT PANEL FRAME

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

7

Lawn-Boy R-636

Push nut

$

$

Currently unavailable

7

Lawn-Boy OC4408

SUPPORT, CHUTE CONTROL CRANK

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

8

Lawn-Boy R-637-01

Axle

$

$

Currently unavailable

8

Lawn-Boy OC7743

BRACKET, REAR ATTACHING, right hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

9

Lawn-Boy R-640

5/16" Set screw

$

$

Currently unavailable

9

Lawn-Boy OC7744

BRACKET, REAR ATTACHING, left hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

10

Lawn-Boy R-653

Thatching tine

$

$

Currently unavailable

10

Lawn-Boy OC7741

PLATE, REAR ATTACHING

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

11

Lawn-Boy R-704

1/2" Nylon bearing

$

$

Currently unavailable

11

Lawn-Boy OC4471

CROSS BAR, REAR

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

12

Lawn-Boy R-713-10

Tray bracket

$

$

Currently unavailable

12

Lawn-Boy OC4043

POST, FRONT, right hand (straight w/screw)

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

13

Lawn-Boy R-746

Drilled pin

$

$

Currently unavailable

13

Lawn-Boy OC4044

POST, FRONT, left hand (straight w/screw)

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

14

Lawn-Boy R-755-10

Tine tray

$

$

Currently unavailable

14

Lawn-Boy OC5630

BRACE, TOP, right hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

15

Lawn-Boy R-756

Safety rod

$

$

Currently unavailable

15

Lawn-Boy OC5631

BRACE, TOP, left hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

16

Lawn-Boy R-757-10

Main frame

$

$

Currently unavailable

16

Lawn-Boy OC5632

TOP FRAME, HTS

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

17

Lawn-Boy R-761-10

Lift bracket

$

$

Currently unavailable

17

Lawn-Boy OC4472

POST, REAR CORNER, right hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

18

Lawn-Boy R-762-10

Lift handle

$

$

Currently unavailable

18

Lawn-Boy OC4473

POST, REAR CORNER, left hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

19

Lawn-Boy R-763-10

Lift handle support bracket

$

$

Currently unavailable

19

Lawn-Boy OC4410

"L" BRACKET

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

20

Lawn-Boy R-774

5/16" x 1-1/2" Safety rod washer

$

$

Currently unavailable

20

Lawn-Boy OC4411

3/4" LOOP

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

21

Lawn-Boy R-775-10

Short strap

$

$

Currently unavailable

21

Lawn-Boy OC4750

FRONT PANEL VINYL

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

22

Lawn-Boy R-803

Handle grip

$

$

Currently unavailable

22

Lawn-Boy OC4413

WINDSHIELD

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

23

Lawn-Boy R-816-10

Wheel support

$

$

Currently unavailable

23

Lawn-Boy OC4414

DOOR, right hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

24

Lawn-Boy R-856-10

Chassis mounting plate

$

$

Currently unavailable

24

Lawn-Boy OC4415

DOOR, left hand

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

25

Lawn-Boy R-857-10

Chassis mounting plate (with counter sink)

$

$

Currently unavailable

25

Lawn-Boy OC4658

REAR CURTAIN

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

26

Lawn-Boy 1M0816P

1/4" x 1" Hex bolt

$

$

Currently unavailable

26

Lawn-Boy OC8091

TOP, FIBERGLASS, HTS (trim)

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

27

Lawn-Boy 10M0828P

1/4" x 1-3/4" Carriage bolt

$

$

Currently unavailable

27

Lawn-Boy OC4419

CRANK, CHUTE CONTROL

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

28

Lawn-Boy 11MP1016P

5/16" x 1" Carriage bolt

$

$

Currently unavailable

28

Lawn-Boy OC4417

PARTS BAG (contents listed below)

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

29

Lawn-Boy 25M1012P

5/16" x 3/4" Flat head machine screw

$

$

Currently unavailable

29

Lawn-Boy OC730

1/4"-20 LOCKNUT

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

30

Lawn-Boy 30M1000P

5/16" Hex nut

$

$

Currently unavailable

30

Lawn-Boy OC15

DOOR HINGE

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

31

Lawn-Boy 40M1000P

5/16" Lock washer

$

$

Currently unavailable

31

Lawn-Boy OC788

1/4"-20 x 3/4" BOLT

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

32

Lawn-Boy 45M1111P

5/16" Plain washer

$

$

Currently unavailable

32

Lawn-Boy OC7781

SPRING, DOOR LATCH

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

33

Lawn-Boy 45M1717P

1/2" Plain washer

$

$

Currently unavailable

33

Lawn-Boy OC3951

1/4" FLAT WASHER

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

34

Lawn-Boy B-983P

1/8" Hairpin cotter

$

$

Currently unavailable

34

Lawn-Boy OC2187

5/16"-18 x 1-1/2" BOLT

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

35

Lawn-Boy 40M0800P

1/4" Lock washer

$

$

Currently unavailable

35

Lawn-Boy OC790

3/8"-16 LOCKNUT

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable

36

Lawn-Boy 30M0800P

1/4" Hex nut

$

$

Currently unavailable

36

Lawn-Boy OC783

3/8"-16 x 3/4" BOLT

Note: ORDER REPAIR PARTS FROM: Original Tractor Cab Co. Arlington, IN 46104, 317-663-2214.

$

$

Currently unavailable
