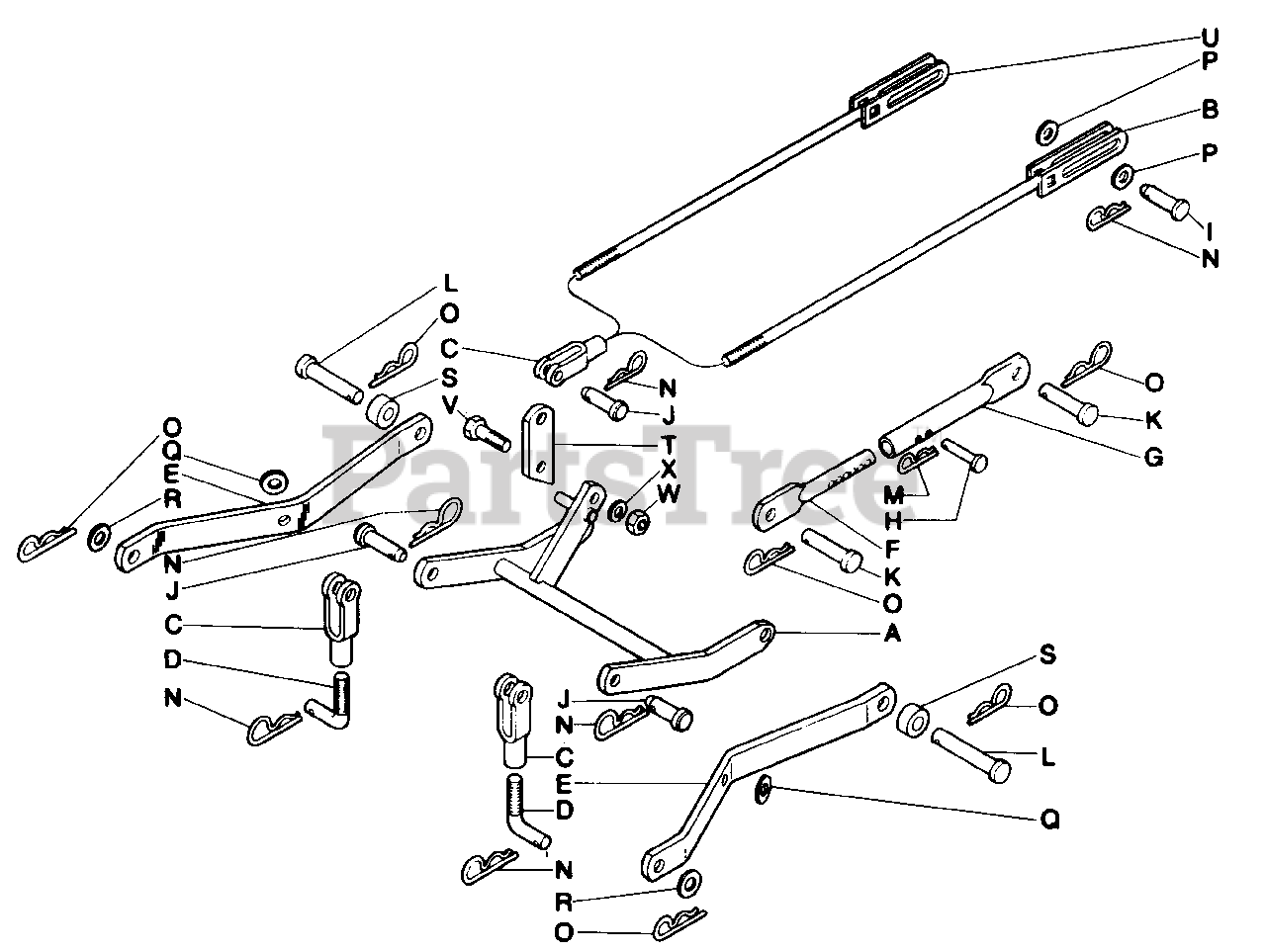

63626 - Lawn-Boy 3-Point Hitch (SN: 800000001 - 899999999) (1988) 3 POINT HITCH PARTS AND PARTS LIST MODEL 63626 Parts Diagram

3-Point Hitch

3 POINT HITCH PARTS AND PARTS LIST MODEL 63626 Parts Diagram

  • Title
A

Lawn-Boy 210718

Lift Frame Assembly
(Superseded to 741185)

$

$

Not available

B

Lawn-Boy 200859

Lift Rod Assembly (Long)
(Superseded to 741183)

$

$

Not available

C

Lawn-Boy 11779

Clevis
(Superseded to 100-7338)

$60.99

$

In Stock, only 3 left!

0

D

Lawn-Boy 32177

Pin-Lift Adjustment
(Superseded to 703164)

$

$

Not available

E

Lawn-Boy 210720

Lift Link-Slide
(Superseded to 703155)

$196.99

$

Usually ships in 3-6 days

0

F

Lawn-Boy 31495

Lift Link-Inside Half
(Superseded to 703163)

$311.99

$

Usually ships in 3-6 days

0

G

Lawn-Boy 31492

Lift Link-Outside Half
(Superseded to 703162)

$368.99

$

Usually ships in 3-6 days

0

H

Lawn-Boy 14915

Clevis Pin-1/4 Dia. x 1-1/2
(Superseded to 703160)

$

$

Not available

I

Lawn-Boy 1268

Clevis Pin-7/16 Dia. x 1-3/4
(Superseded to 700597)

$

$

Not available

J

Lawn-Boy 11780

Clevis Pin-1/2 Dia. x 1-3/4
(Superseded to 700799)

$

$

Not available

K

Lawn-Boy 31498

Clevis Pin-5/8 Dia. x 2-1/4
(Superseded to 700602)

$20.99

$

Usually ships in 3-6 days

0

L

Lawn-Boy 34732

Clevis Pin-5/8 Dia. x 3-1/2
(Superseded to 703165)

$

$

Not available

M

Lawn-Boy 9678

Spring Clip
(Superseded to 700257)

$

$

Not available

N

Lawn-Boy 1063

Spring Clip
(Superseded to 146428)

$

$

Not available

O

Lawn-Boy 2776

Spring Clip
(Superseded to 700599)

$

$

Not available

P

Lawn-Boy 70705

Washer, Flat 7/16 Plated
(Superseded to 703143)

Note: Common hardware. May be purchased locally.

$

$

Not available

Q

Lawn-Boy 70707

Washer, Flat 1/2 Plated
(Superseded to 700049)

Note: Common hardware. May be purchased locally.

$

$

Not available

R

Lawn-Boy 70711

Washer, Flat 5/8 Plated
(Superseded to 702104)

Note: Common hardware. May be purchased locally.

$

$

Not available

S

Lawn-Boy 16191

Spacer (Gear Drive Tractors Only)
(Superseded to 703161)

$

$

Not available

T

Lawn-Boy 218163

Lift Arm Extension
(Superseded to 703145)

$

$

Not available

U

Lawn-Boy 218166

Lift Rod Assembly (Short)
(Superseded to 741186)

$

$

Not available

V

Lawn-Boy 70343

Cap Screw, Hex Hd. 1/2-13 x 1-1/2 Plated Grade 5
(Superseded to 701812)

Note: Common hardware. May be purchased locally.

$

$

Not available

W

Lawn-Boy 70563

Nut, Hex 1/2-13 Plated
(Superseded to 701067)

Note: Common hardware. May be purchased locally.

$

$

Not available

X

Lawn-Boy 70655

Washer, Spring Lock 1/2 Plated
(Superseded to 701068)

Note: Common hardware. May be purchased locally.

$

$

Not available
