63625 - Lawn-Boy Sleeve Hitch (SN: 800000001 - 899999999) (1988) SLEEVE HITCH PARTS & PARTS LIST MODEL 63625 Parts Diagram

Sleeve Hitch

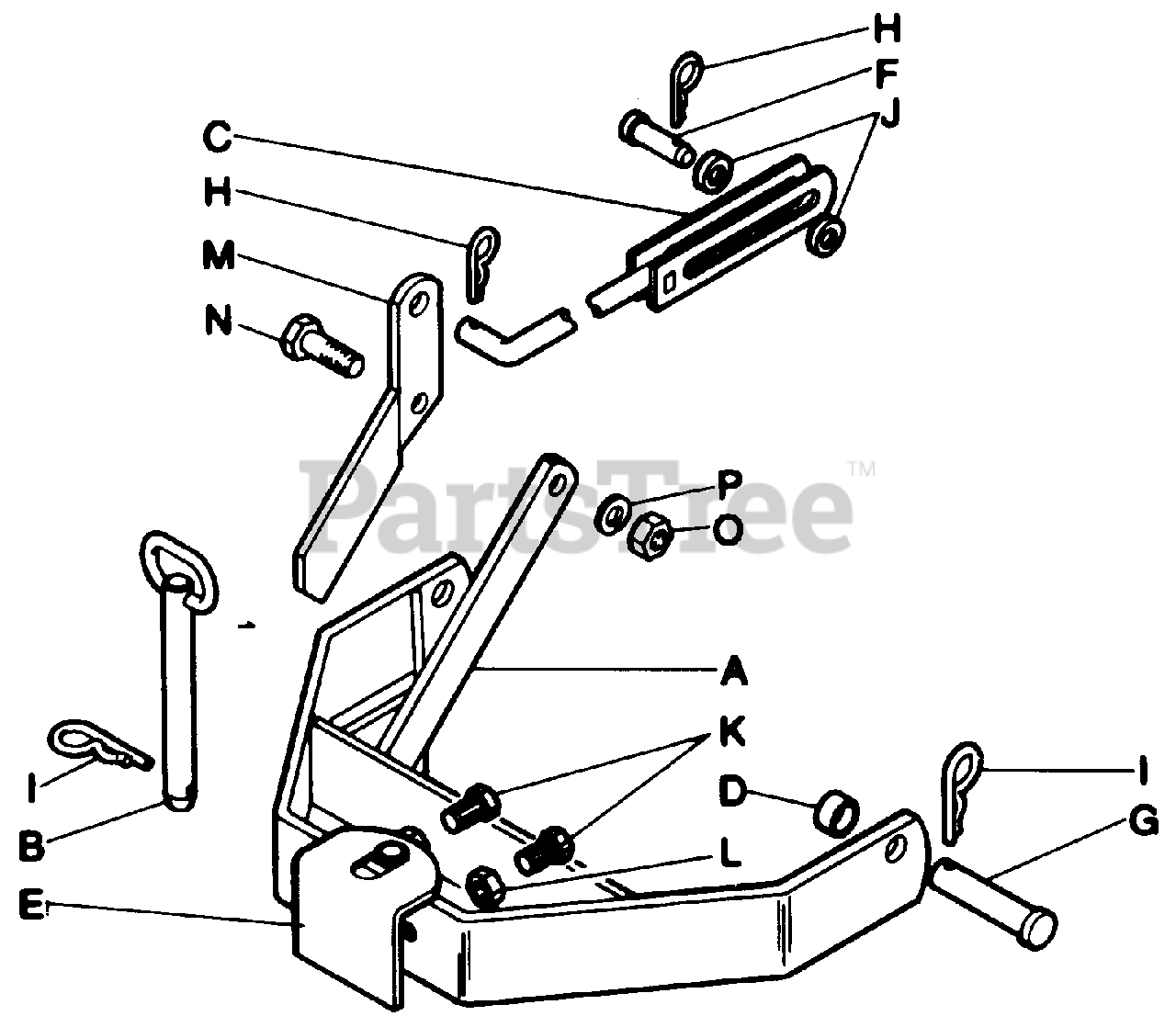

SLEEVE HITCH PARTS & PARTS LIST MODEL 63625 Parts Diagram

  • Title

A

Lawn-Boy 210721

Sleeve Hitch Assembly
(Superseded to 741177)

$

$

Not available

B

Lawn-Boy 11852

Hitch Pin Assembly
(Superseded to 741173)

$159.99

$

Usually ships in 3-6 days

0

C

Lawn-Boy 210716

Lift Rod Assembly
(Superseded to 741178)

$

$

Not available

D

Lawn-Boy 11753

Spacer
(Superseded to 702109)

$

$

Not available

E

Lawn-Boy 36980

Stabilizer Plate
(Superseded to 703142)

$

$

Not available

F

Lawn-Boy 1268

Clevis Pin
(Superseded to 700597)

$

$

Not available

G

Lawn-Boy 12643

Clevis Pin
(Superseded to 700598)

$

$

Not available

H

Lawn-Boy 1063

Spring Clip
(Superseded to 146428)

$

$

Not available

I

Lawn-Boy 2776

Spring Clip
(Superseded to 700599)

$

$

Not available

J

Lawn-Boy 70705

Washer, 7/16 Flat Plated
(Superseded to 703143)

$

$

Not available

K

Lawn-Boy 71275

Cap Screw, Hex Hd. 1/2-20 x 1-1/2 Plated Grade 5
(Superseded to 702271)

$

$

Not available

L

Lawn-Boy 70583

Nut, Hex Jam 1/2-20 Plated
(Superseded to 701523)

$

$

Not available

M

Lawn-Boy 218165

Lift Arm Extension Assembly
(Superseded to 741180)

$

$

Not available

N

Lawn-Boy 70343

Cap Screw, Hex Hd. 1/2-13 x 1-1/2 Plated Grade 5
(Superseded to 701812)

$

$

Not available

O

Lawn-Boy 70563

Nut, Hex 1/2-13 Plated
(Superseded to 701067)

$

$

Not available

P

Lawn-Boy 70655

Washer, Spring Lock 1/2 Plated
(Superseded to 701068)

$

$

Not available
