63625 A - Lawn-Boy Sleeve Hitch (SN: K00000001 - K99999999) (1991) SLEEVE HITCH PARTS AND PARTS LIST Parts Diagram

Sleeve Hitch

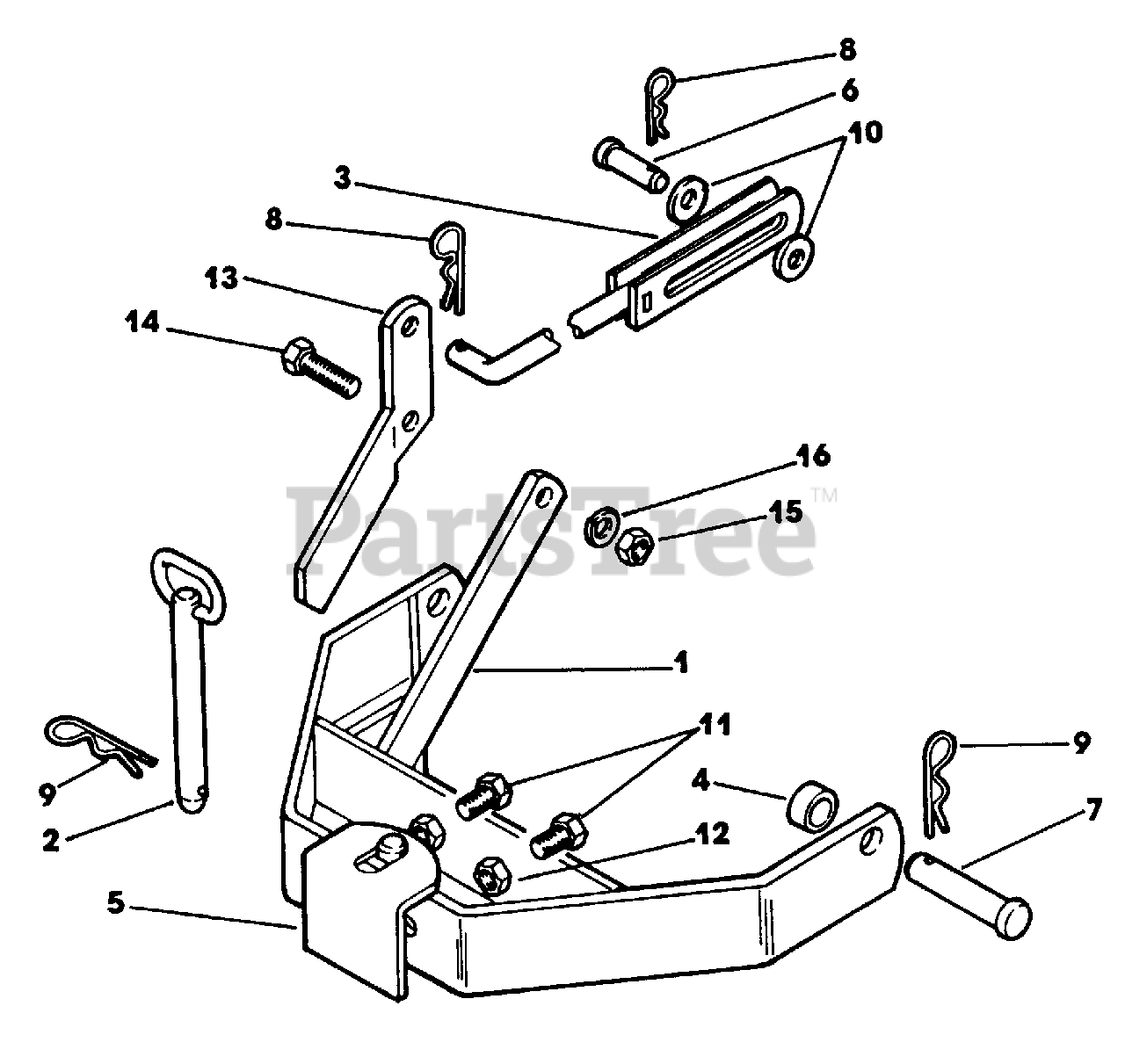

SLEEVE HITCH PARTS AND PARTS LIST Parts Diagram

  • Title
1

Lawn-Boy 741177

Sleeve Hitch Assembly

$

$

Not available

2

Lawn-Boy 741173

Hitch Pin Assembly

$159.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 741178

Lift Rod Assembly

$

$

Not available

4

$

$

Not available

5

Lawn-Boy 703142

Stabilizer Plate

$

$

Not available

6

Lawn-Boy 700597

Clevis Pin

$

$

Not available

7

Lawn-Boy 700598

Clevis Pin

$

$

Not available

8

Lawn-Boy 146428

Spring Clip

$

$

Not available

9

Lawn-Boy 700599

Spring Clip

$

$

Not available

10

Lawn-Boy 703143

Washer, Flat

$

$

Not available

11

Lawn-Boy 702271

Cap Screw, Hex Hd

$

$

Not available

12

Lawn-Boy 701523

Nut, Hex Jam

$

$

Not available

13

Lawn-Boy 741180

Lift Arm Extension Assembly

$

$

Not available

14

Lawn-Boy 701812

Cap Screw, Hex Hd

$

$

Not available

15

Lawn-Boy 701067

Nut, Hex

$

$

Not available

16

Lawn-Boy 701068

Washer, Spring Lock

$

$

Not available
