63600 - Lawn-Boy Snow Blade for 48" Precision Riding Mower (SN: 250000001 - 250999999) (2005) BLADE ASSEMBLY Parts Diagram

Snow Blade for 48" Precision Riding Mower

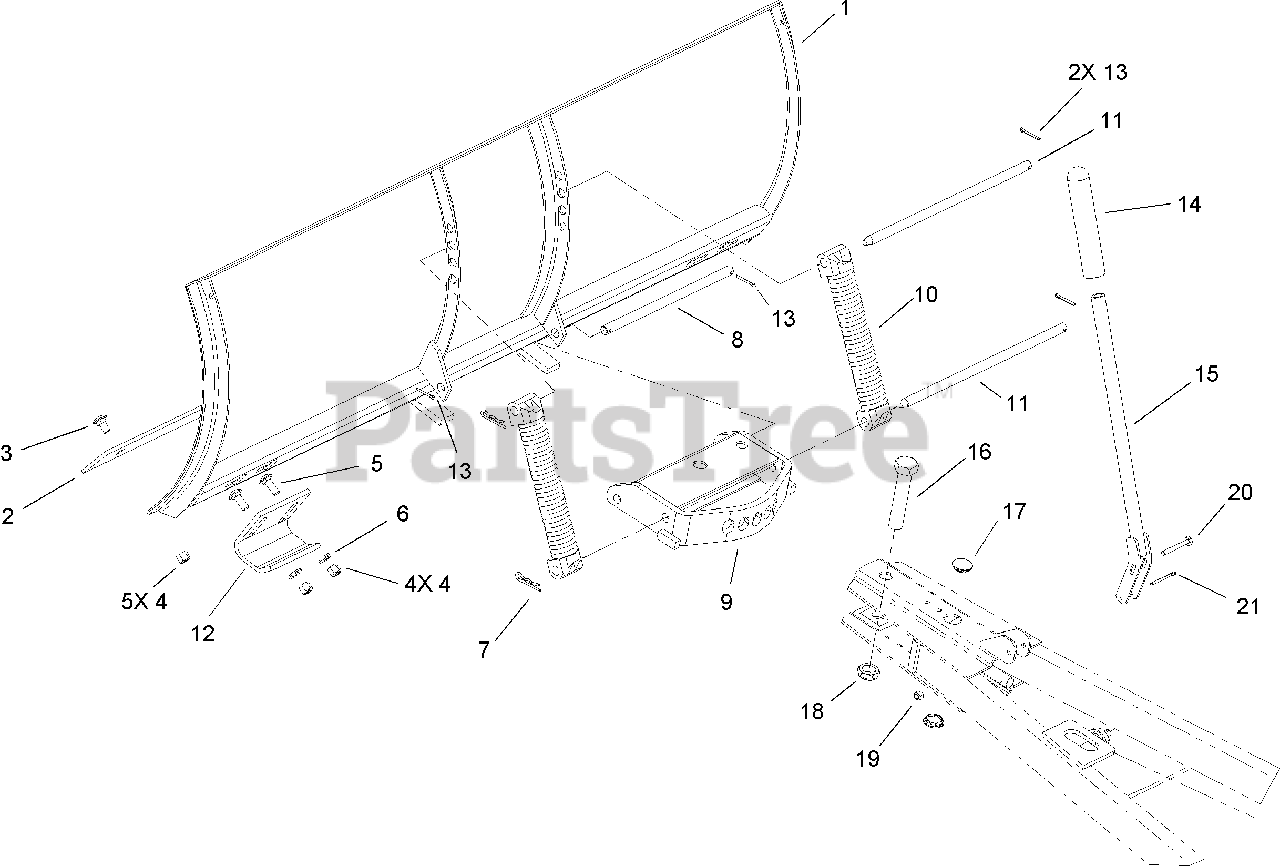

BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 78-1330-03

BLADE

$

$

Not available

2

Lawn-Boy 93-1612-03

PLATE-EDGE, BLADE

$53.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 3231-2

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

8

Lawn-Boy 4564

ROD-LOWER

$39.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 104-8053-03

QUADRANT

$

$

Not available

10

Lawn-Boy 105-1386-03

LUG / SPRING ASM

$129.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 5120

ROD-PIVOT, BLADE

$60.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 117424-03

Skid

$

$

Not available

13

Lawn-Boy 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 105-1904

GRIP-HANDLE, SNOW BLADE

$9.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 99-7787-03

LEVER-INDEX

$

$

Not available

16

Lawn-Boy 3216-7

SCREW-HH

$21.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 4944

PLUG

$8.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 9156404

NUT-LOCK
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 7

0

19

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0
