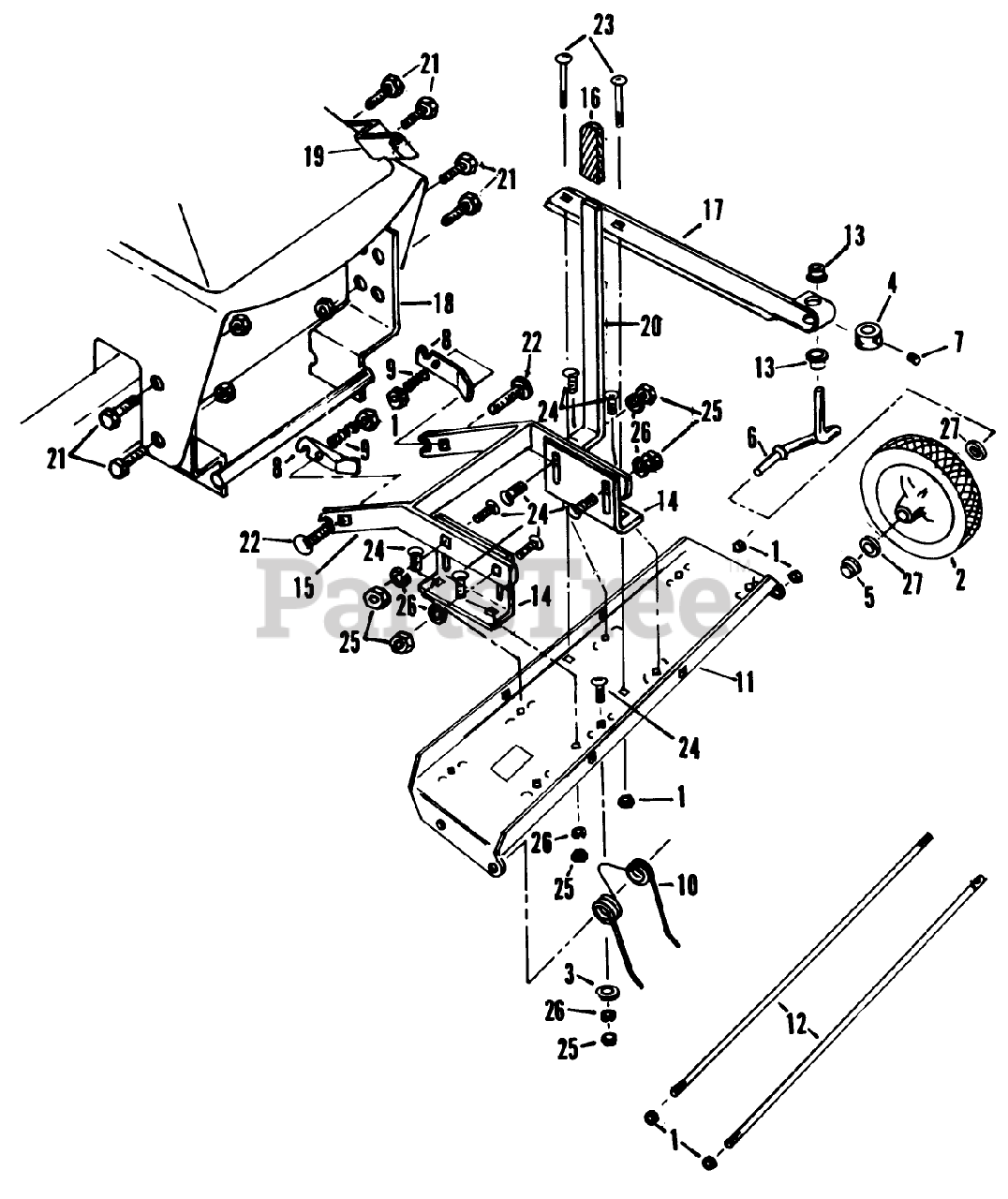

63572 A - Lawn-Boy Sleeve Hitch (SN: K00000001 - K99999999) (1991) 28" Thatcher Parts And Parts List Parts Diagram

Sleeve Hitch

28" Thatcher Parts And Parts List Parts Diagram

  • Title

1

Lawn-Boy B-1673P

1/4" Hex Lock Nut

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

2

Lawn-Boy C-123

Gauge Wheel

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

3

Lawn-Boy R-618

5/16" Special Washer

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

4

Lawn-Boy R-635

Locking Collar

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

5

Lawn-Boy R-636

Push Nut

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

6

Lawn-Boy R-637-01

Axle

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

7

Lawn-Boy R-640

5/16" Set Screw

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

8

Lawn-Boy R-644

Frame latch

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

9

Lawn-Boy R-646

Compression Spring

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

10

Lawn-Boy R-653

Thatching Tine

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

11

Lawn-Boy R-654-10

Tine tray

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

12

Lawn-Boy R-667

Safety Rod

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

13

Lawn-Boy R-704

1/2" Nylon Bearing

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

14

Lawn-Boy R-713-10

Tray Bracket

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

15

Lawn-Boy R-794-10

Main Frame

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

16

Lawn-Boy R-803

Handle Grip

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

17

Lawn-Boy R-816-10

Wheel support

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

18

Lawn-Boy R-906-10

Frame Mounting Bracket

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

19

Lawn-Boy R-909-10

Transport Lock

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

20

Lawn-Boy R-910-10

Lift Handle

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

21

Lawn-Boy 1M1216P

3/8" x 1" Hex bolt

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

22

Lawn-Boy 10M0820P

1/4" X 1 1/4" Carriage Bolt

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

23

Lawn-Boy 10M0828P

1/4" X 1 3/4" Carriage Bolt

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

24

Lawn-Boy 11M1016P

5/16"x 1" Carriage Bolt

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

25

Lawn-Boy 30M1000P

5/16" Hex Nut

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

26

Lawn-Boy 40M1000P

5/16" Lock Washer

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable

27

Lawn-Boy 45M1717P

1/2" Plain Washer

Note: ORDER REPAIR PARTS FROM: BRINLEY-HARDY CO., 340 E. Main Street, Louisville, KY 40202 (502) 585-3351

$

$

Currently unavailable
