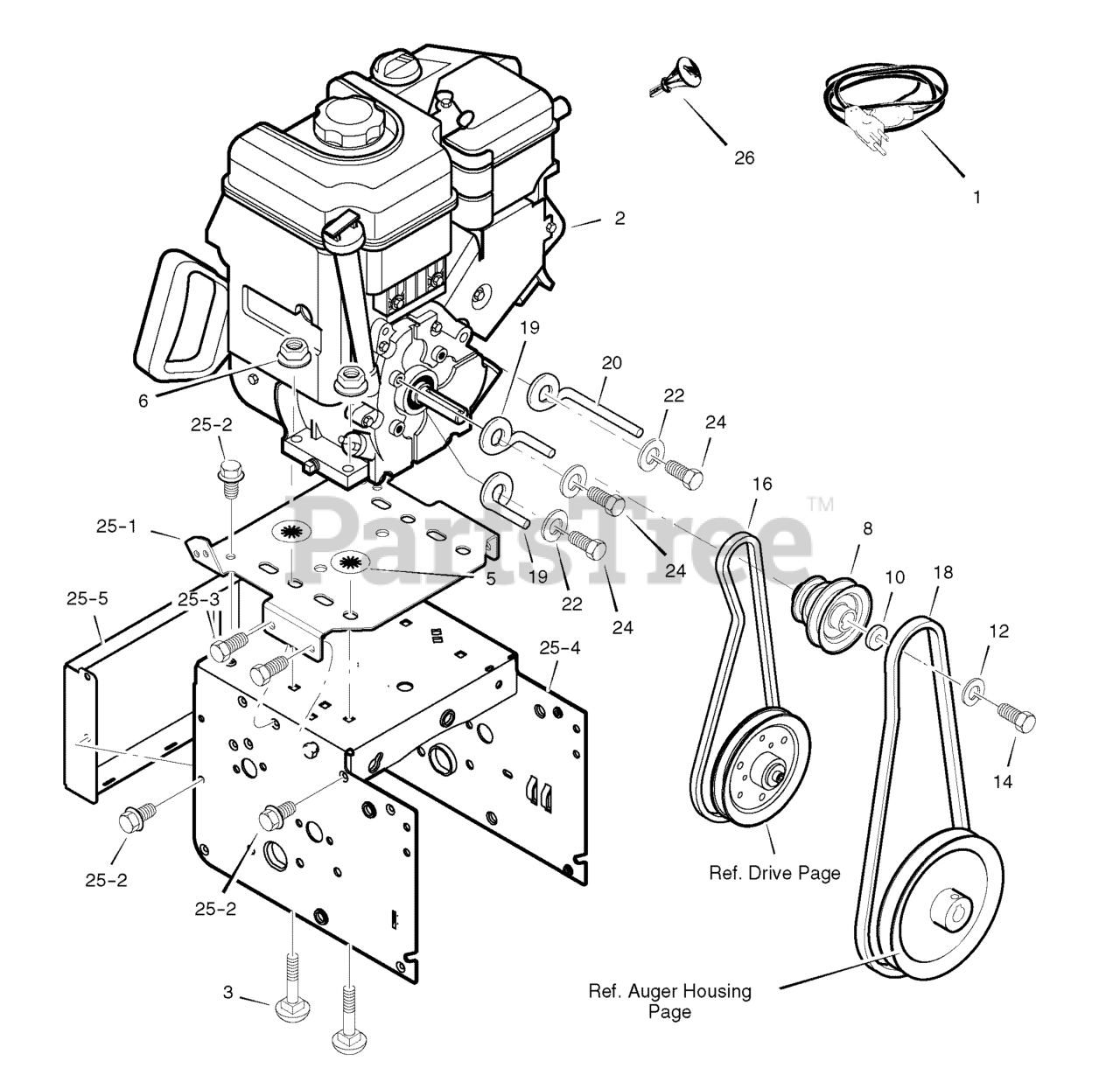

6331790x43 (1695378) - Yard King 33" Snow Thrower (2007) Engine Parts Diagram

33" Snow Thrower

Engine Parts Diagram

  • Title

1

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 2 left!

0

2

ENGINE

$

$

Not available

3

Murray 002X97MA

BOLT, CARRIAGE 5/16-18
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

5

Murray 028X76MA

RETAINER, PUSH

$4.49

$

Usually ships in 2-12 days

0

6

Murray 710026MA

NUT, HEX 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

8

Murray 1501109MA

PULLEY, ENGINE

$41.99

$

In Stock, only 2 left!

0

10

Murray 17X170MA

WASHER

$

$

Not available

12

Murray 71063MA

WASHER .38ID

$3.99

$

Usually ships in 2-12 days

0

14

Murray 001X20MA

SCREW, 3/8-24 X 1.00

$4.49

$

In Stock, only 4 left!

0

16

Murray 37X127MA

BELT, HYDRO DRIVE

$23.99

$

Usually ships in 2-12 days

0

18

Murray 1736421YP

BELT, AUGER V 4L

$30.99

$

In Stock, Qty 20+

0

19

Murray 1501368MA

GUIDE, BELT

$35.99

$

Usually ships in 2-12 days

0

20

Murray 1501201MA

GUIDE, BELT
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

22

Murray 71060MA

WASHER, SPTLK 0.31 X 0.58 X 0.08
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Murray 710097MA

SCREW, 5/16-24 x 0.75

$4.49

$

Usually ships in 2-12 days

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray 1740574LMA

PLATE, ENGINE MOUNT

$29.99

$

Usually ships in 2-12 days

0

25-2

Murray 310169MA

SCREW, TAP 1/4-20 X 0.63
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

25-3

Murray 25X020MA

SCREW, TAP 5/16-18 X 0.50

$4.99

$

In Stock, Qty 6

0

25-4

Murray 1740590LMA

FRAME, MOTOR BOX

$91.99

$

Usually ships in 2-12 days

0

25-5

Murray 1740596LMA

PANEL, BACK - HYDRO
(Superseded to 1740596AYP)

$39.99

$

Usually ships in 2-12 days

0

26

Murray 695756

KEY, ENGINE
(Superseded to 794696)

$7.49

$

In Stock, Qty 15

0

--

Murray 1741078

OWNER'S MANUAL

$

$

Currently unavailable
