6331790x43 (1695378) - Yard King 33" Snow Thrower (2007) Discharge Chute Parts Diagram

33" Snow Thrower

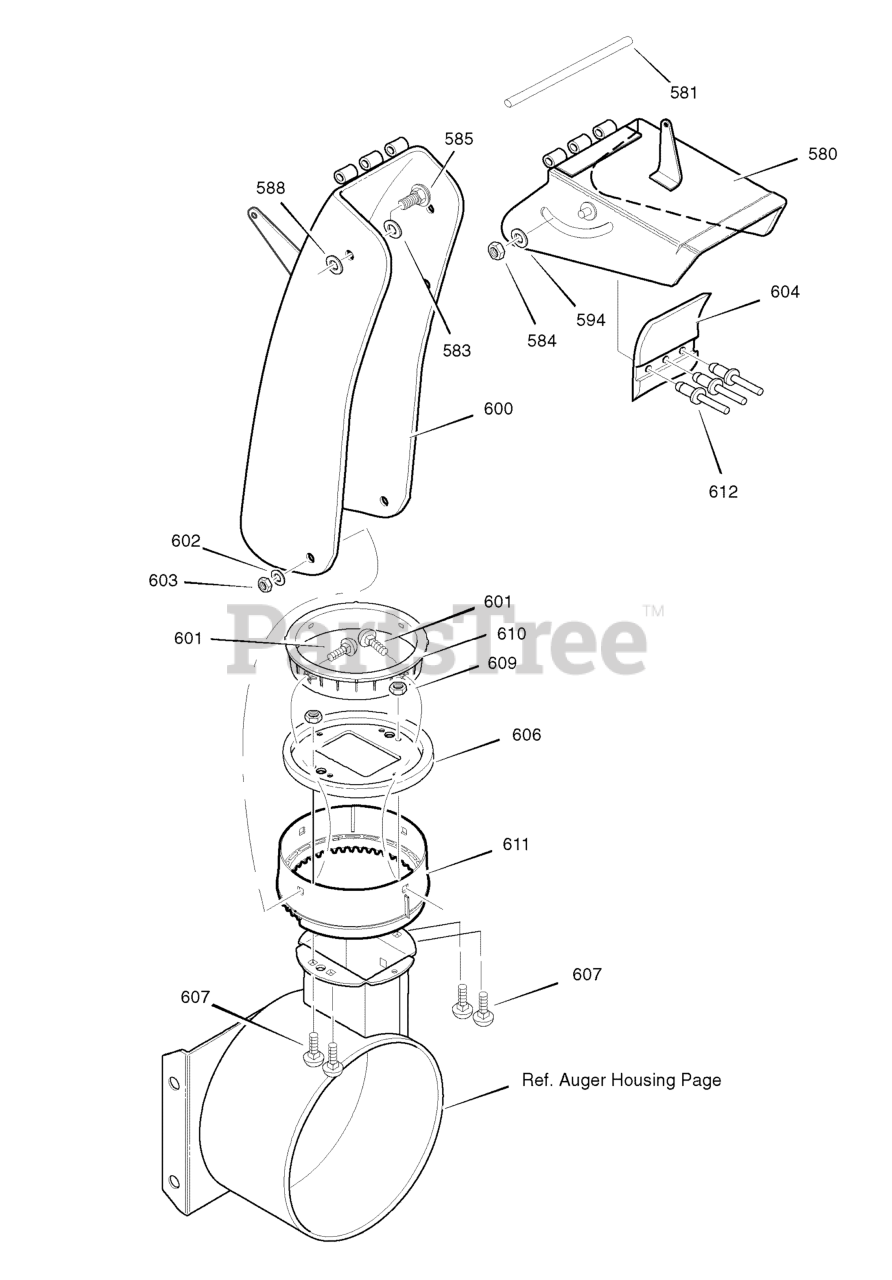

Discharge Chute Parts Diagram

  • Title
580

Murray 1741238HMA

CHUTE, UPPER

$43.99

$

Usually ships in 2-12 days

0

581

Murray 305216MA

PIN, HINGE

$6.49

$

Usually ships in 2-12 days

0

583

Murray 12021MA

WASHER, PLASTIC

$3.99

$

In Stock, only 4 left!

0

584

Murray 71038MA

NUT, 5/16-18 REGHEX NYLOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

585

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

588

Murray 6711MA

WASHER, PLASTIC

$3.99

$

Usually ships in 2-12 days

0

594

Murray 71071MA

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

600

Murray 1735017HMA

CHUTE, LOWER

$131.99

$

Usually ships in 2-12 days

0

601

Murray 2X100MA

BOLT, 5/16-18 X 1.00
(Superseded to 704217)

$

$

Not available

602

Murray 71071MA

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

603

Murray 71038MA

NUT, 5/16-18 HEXNYL
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

Murray 760268MA

FLAP, CHUTE

$10.99

$

Usually ships in 2-12 days

0

606

Murray 1501932YZMA

CHUTE COLLAR

$28.99

$

In Stock, only 1 left!

0

607

Murray 02X101MA

SCREW, 1/4-20 X 0.75
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

609

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray 337227MA

RETAINER RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501476MA

RETAINER RING OUTER

$26.99

$

Usually ships in 2-12 days

0

612

$3.99

$

In Stock, only 1 left!

0
