633138x61A - Murray 33" Snow Thrower (2000) Handle Assembly Parts Diagram

33" Snow Thrower

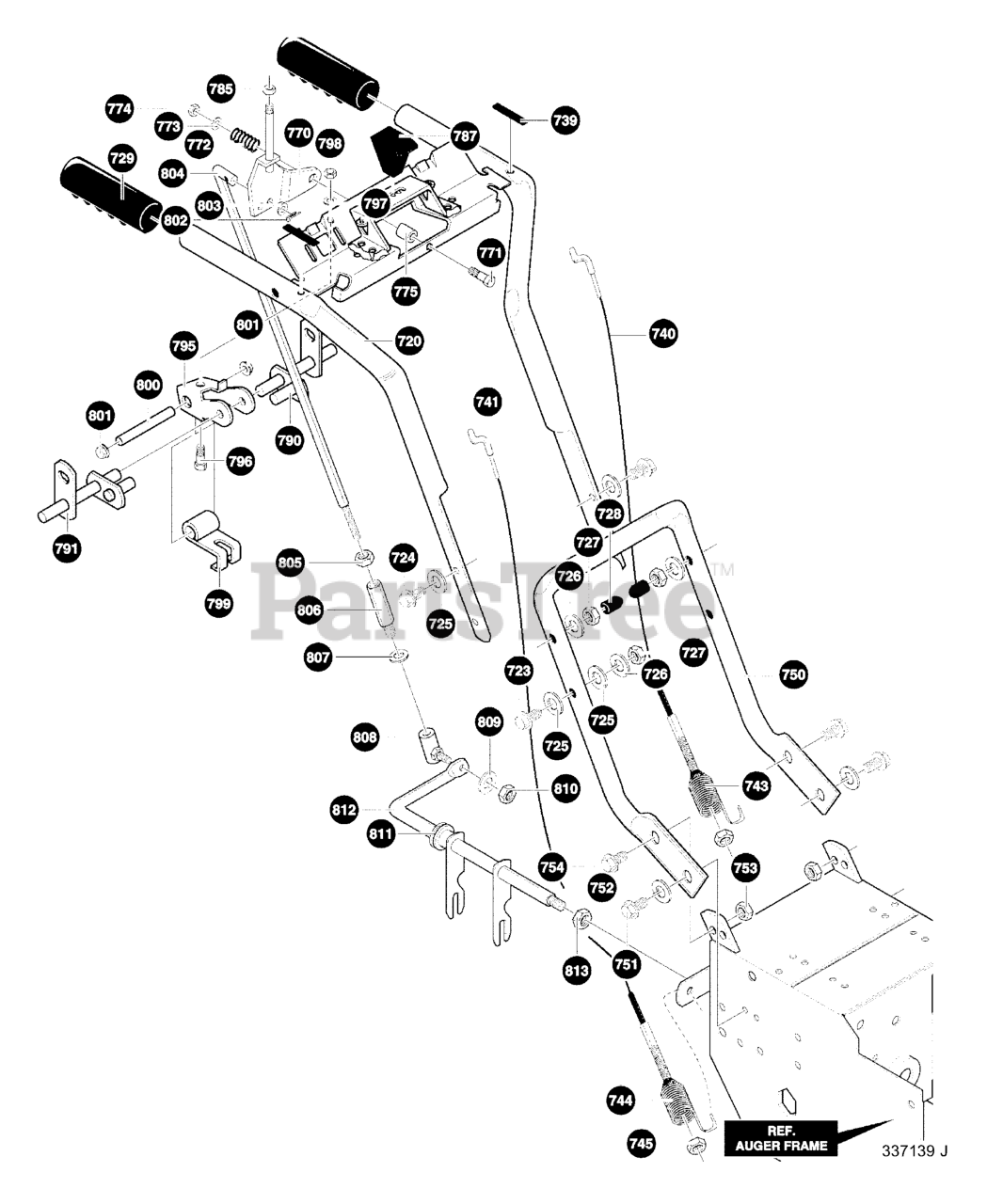

Handle Assembly Parts Diagram

  • Title

720

Murray 760192-853

HANDLE, ASSY

$

$

Currently unavailable

720

Murray 760192-853

SUPPORT, ASSY HANDLE

$

$

Currently unavailable

723

Murray 71007

SCREW, 3/8-16 x 2.00

$

$

Not available

724

Murray 7288MA

SCREW, 3/8-16 x 3.00

$4.49

$

Usually ships in 2-12 days

0

725

Murray 71072

WASHER, FLAT

$

$

Not available

726

Murray 018X31MA

WASHER, MDSPTLK

$4.49

$

Usually ships in 2-12 days

0

727

Murray 780072MA

NUT, 3/8-16 REGHEX

$3.99

$

Usually ships in 2-12 days

0

728

Murray 7289MA

STOP, PLASTIC

$4.49

$

Usually ships in 2-12 days

0

729

Murray 50792MA

GRIP, HANDLE

$5.99

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER, RECT

$

$

Not available

740

Murray 1580MA

CABLE, CLUTCH 32.19"

$16.99

$

In Stock, only 1 left!

0

741

Murray 761591MA

CABLE, AUG CLUTCH

$15.99

$

Usually ships in 2-12 days

0

743

Murray 579869MA

TENSION SPRING

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 12

0

745

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

750

Murray 5543-853

HANDLE, LOWER

$

$

Not available

751

Murray 70984

SCREW, 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

752

Murray 120638

WASHER, SPTLK

$

$

Not available

753

Murray 1498

NUT, 5/16-18

$

$

Not available

754

Murray 782967MA

SCREW, 5/16-18 x 0.75

$4.49

$

Usually ships in 2-12 days

0

770

Murray 581964

BRKT, SHIFT ACTUATOR

$

$

Currently unavailable

771

Murray 7288MA

SCREW, 3/8-16 x 3.00

$4.49

$

Usually ships in 2-12 days

0

772

Murray 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71072

WASHER, FLAT

$

$

Not available

774

Murray 71046

NUT, 3/8-16 HEXNYL
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

775

Murray 579183

SPACER, SHIFT ACTUATOR

$

$

Currently unavailable

785

Murray 120375

NUT, 1/4-20 REGHEX

$1.99

$

Usually ships in 2-12 days

0

787

Murray 585522

KNOB, SHIFT 1/420

$4.99

$

Usually ships in 2-12 days

0

790

Murray 578926

ROD, ASSY LH

$80.99

$

Usually ships in 2-12 days

0

791

Murray 578924

ROD, ASSY RH

$75.99

$

In Stock, only 1 left!

0

795

Murray 579002

BRACKET, CAM RETAINER

$

$

Currently unavailable

796

Murray 313676

SCREW, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

797

Murray 120638

WASHER, SPTLK

$

$

Not available

798

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

799

Murray 8417MA

CAM LOCK

$34.99

$

In Stock, only 4 left!

0

800

Murray 584673MA

PIN, SPRING PIVOT

$18.99

$

Usually ships in 2-12 days

0

801

Murray 73664MA

NUT, PUSH ON

$4.99

$

In Stock, only 3 left!

0

802

Murray 030X20MA

PIN, COTTER
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

803

Murray 120393

FLATWASHER

$

$

Not available

804

Murray 581079

ROD, SPEED CONTROL

$

$

Currently unavailable

805

Murray 120368

NUT, 5/16-24 REGHEX

$1.49

$

Usually ships in 2-12 days

0

806

Murray 6352MA

ADAPTOR, ROD SPEED

$95.99

$

Usually ships in 2-12 days

0

807

Murray 120638

WASHER, SPTLK

$

$

Not available

808

Murray 50782MA

JOINT, STEEL BALL

$21.99

$

In Stock, Qty 6

0

809

Murray 120638

WASHER, SPTLK

$

$

Not available

810

Murray 120368

NUT, 5/16-24 RGHEX

$1.49

$

Usually ships in 2-12 days

0

811

Murray 579944MA

BEARING, FL

$15.99

$

Usually ships in 2-12 days

0

812

Murray 337436

ROD, ASSY YOKE "PANEL"

$

$

Not available

813

Murray 071111

NUT, 38-16 HEXCTRLK

$3.99

$

Usually ships in 2-12 days

0
