33" Snow Thrower

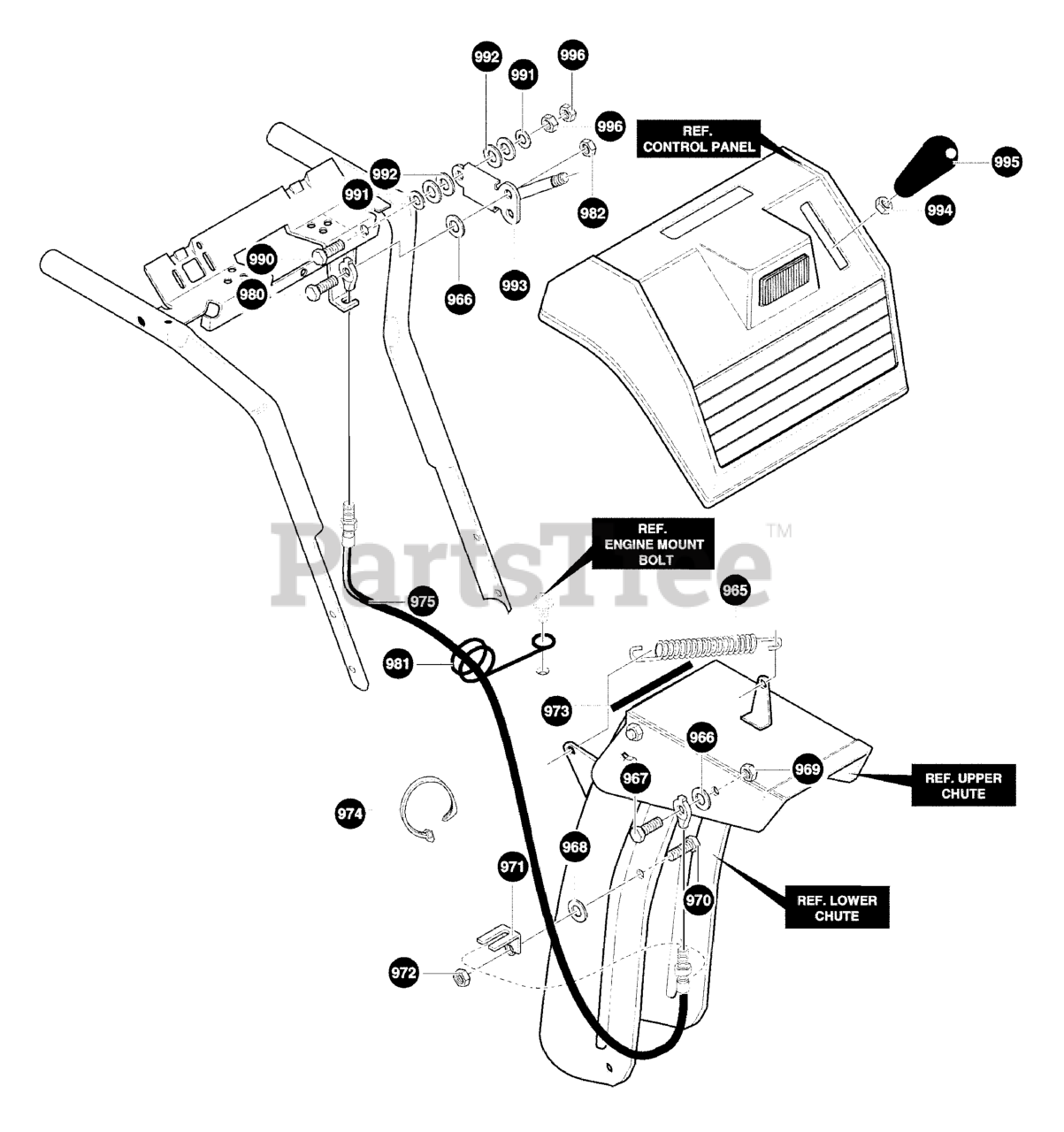

Chute Deflector Parts Diagram

  • Title

965

Murray 318468MA

SPRING, TENSION RETURN

$8.49

$

In Stock, only 1 left!

0

966

Murray 711666

WASHER, FLAT

$

$

Not available

967

Murray 310088MA

BOLT, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

968

Murray 73787MA

WASHER, FLAT

$6.99

$

Usually ships in 2-12 days

0

969

Murray 302635

NUT, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

970

Murray 313676

SCREW, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

971

Murray PER - 780066

BRACKET, CABLE CHUTE

$

$

Currently unavailable

972

Murray 1498

NUT, 5/16-18

$

$

Not available

973

Murray 055021

TRIM,STRIP, BLACK

$

$

Currently unavailable

974

Murray 760113MA

TIE, CABLE

$5.49

$

Usually ships in 2-12 days

0

975

Murray 761131MA

CABLE, CHUTE CONTROL

$49.99

$

In Stock, only 2 left!

0

980

Murray 310088MA

BOLT, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

981

Murray 780220MA

WIRE FORM

$6.99

$

Usually ships in 2-12 days

0

982

Murray 302635

NUT, 1/4-10

$4.99

$

Usually ships in 2-12 days

0

990

Murray 180128MA

SCREW, 3/8-16 x 1.75

$3.99

$

Usually ships in 2-12 days

0

991

Murray 71072

WASHER, FLAT

$

$

Not available

992

Murray 4051MA

WASHER, SPRING

$4.99

$

Usually ships in 2-12 days

0

993

Murray 579040

HANDLE ASSY, SPEED CTRL

$

$

Currently unavailable

994

Murray 780072MA

NUT, 3/8-16 REGHEX

$3.99

$

Usually ships in 2-12 days

0

995

Murray 306689MA

HANDLE, 3/8-16 MOLDED TALL

$14.99

$

Usually ships in 2-12 days

0

996

Murray 71046

NUT, 3/8-16 HEXNYL
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0
