633136x85B - Murray 33" Snow Thrower (2003) Wheels Parts Diagram

33" Snow Thrower

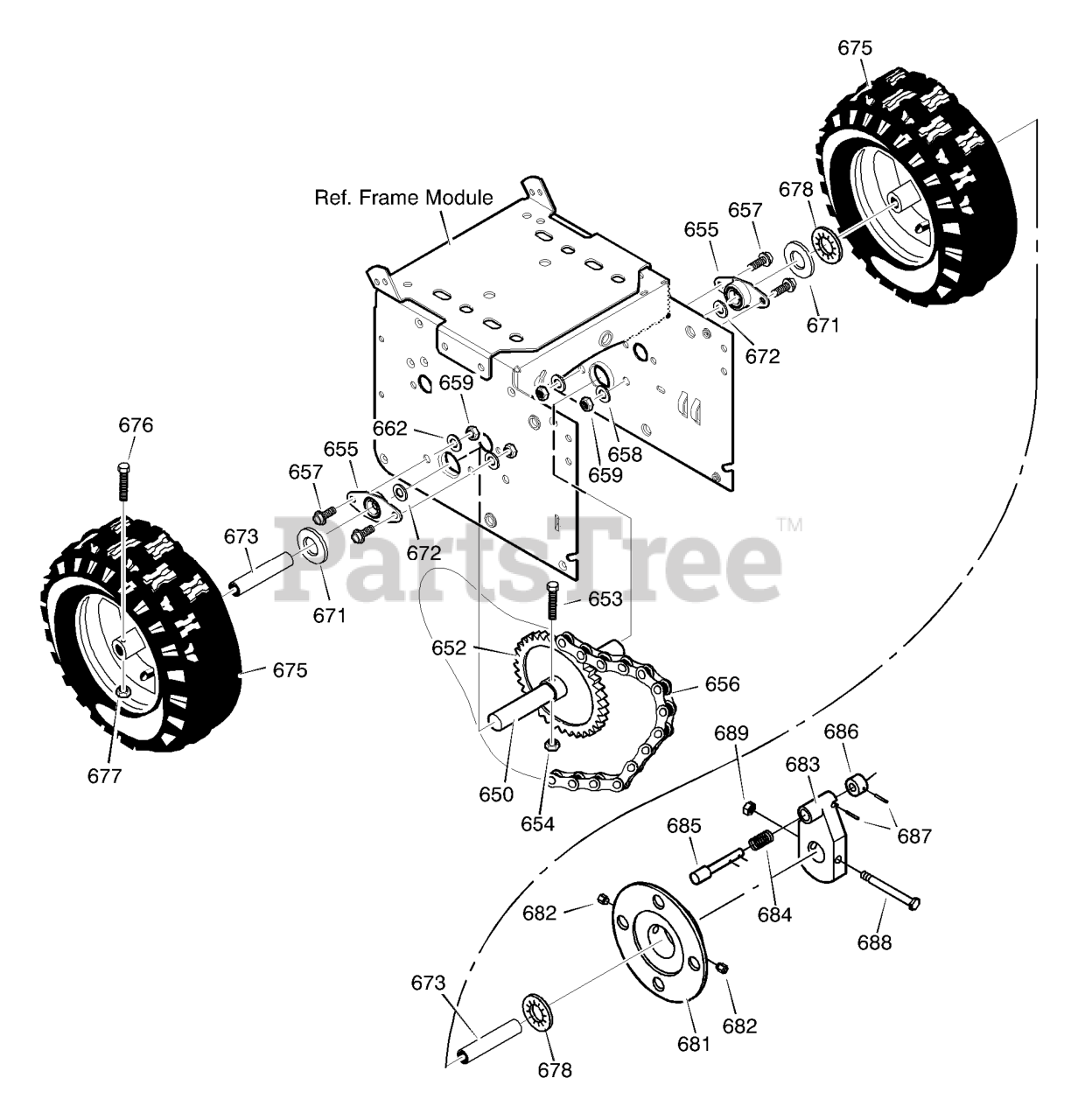

Wheels Parts Diagram

  • Title
650

Murray 1501564

SHAFT, AXLE

$

$

Currently unavailable

652

Murray 1501089

SPRKT & HUB
(Superseded to 1501089MA)

$42.99

$

In Stock, Qty 8

0

653

Murray 01X193MA

SCREW, 1/4-20X1.75
(Superseded to 704212)

$5.49

$

In Stock, Qty 20+

0

654

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

655

Murray 53266MA

RETAINER & BEARING ASSY

$48.99

$

Usually ships in 2-12 days

0

657

Murray 71003

SCREW, 3/8"-16x.75

$

$

Not available

658

Murray 71062

WASHER, LOCK

$

$

Not available

659

Murray 71044

NUT, 3/8"-16

$3.49

$

Usually ships in 2-12 days

0

671

Murray 712120MA

WASHER, FLAT

$4.99

$

In Stock, Qty 20+

0

673

Murray 1501138MA

BUSHING, WHEEL

$

$

Not available

675

Murray 1501020MA

TIRE & RIM -Right
(Superseded to 1736413YP)

$186.99

$

Usually ships in 2-12 days

0

676

Murray 577015MA

SCREW, 1/4-20X1.75 HH

$4.99

$

In Stock, Qty 5

0

677

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

678

Murray 239MA

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

680

Murray 1501019

TIRE & RIM -Left

$132.99

$

Usually ships in 2-12 days

0

681

Murray 1501032EMA

DISC, WHEEL

$32.99

$

Usually ships in 2-12 days

0

682

$5.49

$

In Stock, Qty 20+

0

683

Murray 1501644

HUB, WHEEL LOCK

$

$

Not available

684

Murray 164X34MA

SPRING, COMPRESSION

Note: (Included with Ref. No. 683)

$5.99

$

In Stock, Qty 19

0

685

Murray 1501033 YZ

PIN, LOCK

Note: (Included with Ref. No. 683)

$28.99

$

In Stock, only 2 left!

0

686

Murray 1501034MA

KNOB

Note: (Included with Ref. No. 683)

$23.99

$

Usually ships in 2-12 days

0

687

Murray 032X79

PIN

Note: (Included with Ref. No. 683)

$

$

Not available

688

$5.49

$

In Stock, only 2 left!

0

689

Murray 15X116MA

NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
