633136x85A - Murray 33" Snow Thrower (2002) Handle Assembly Parts Diagram

33" Snow Thrower

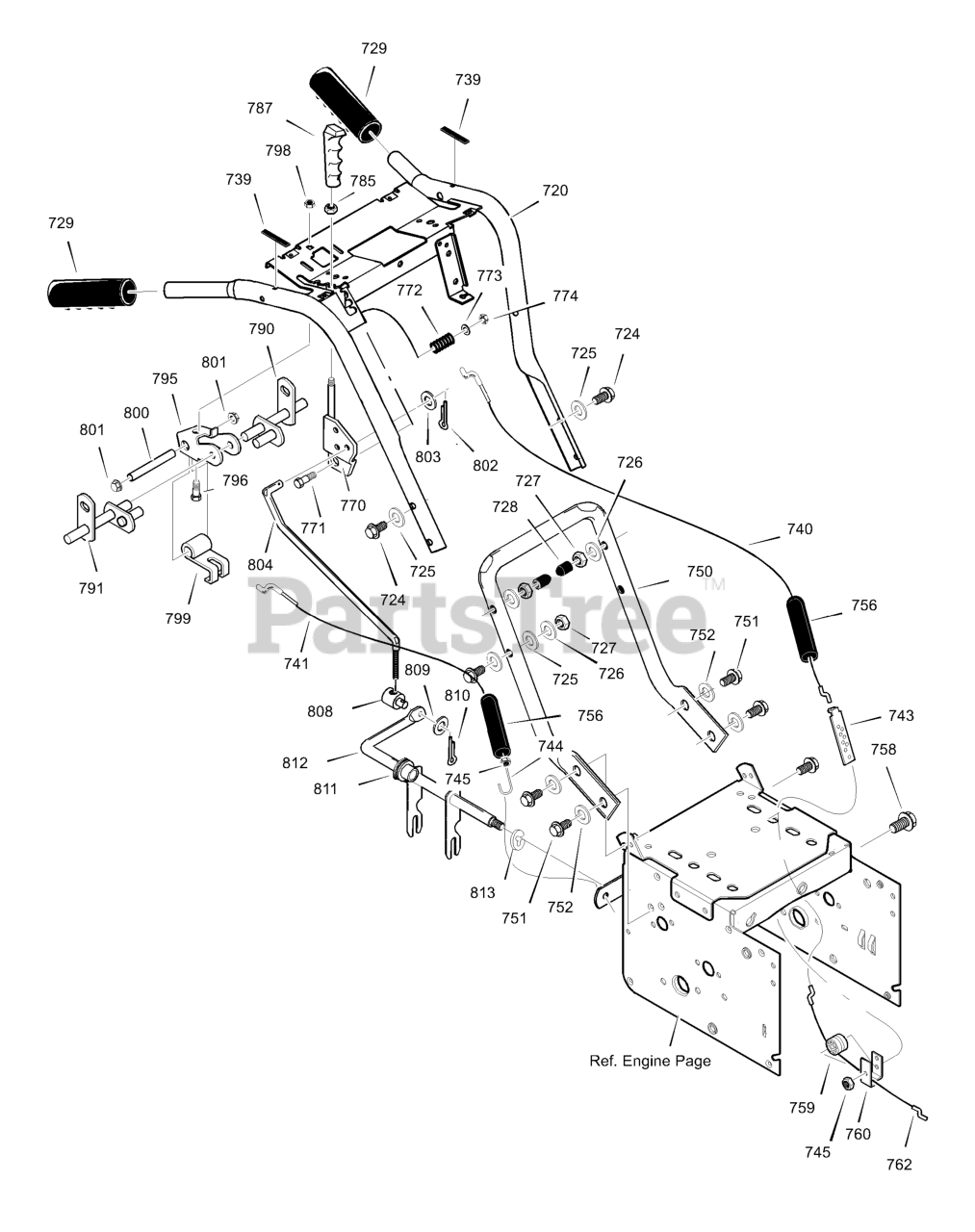

Handle Assembly Parts Diagram

  • Title
720

Murray 1501378E701MA

ASSY, HANDLE

$398.99

$

Usually ships in 2-12 days

0

724

$4.49

$

Usually ships in 2-12 days

0

725

Murray 71072

WASHER, FLAT

$

$

Not available

726

Murray 71062

WASHER

$

$

Not available

727

$3.49

$

Usually ships in 2-12 days

0

728

Murray 7289MA

STOP, PLASTIC

$4.49

$

Usually ships in 2-12 days

0

729

Murray 337399MA

GRIP, HANDLE

$5.49

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER

$

$

Not available

740

Murray 1501124MA

CABLE, CLUTCH
(Superseded to 762259MA)

$12.99

$

In Stock, only 2 left!

0

741

Murray 761590MA

CABLE, CLUTCH

$15.99

$

In Stock, only 4 left!

0

743

Murray 313441MA

BRKT, CABLE ADJ

$

$

Not available

744

Murray 1673MA

SPRING, CLUTCH

$8.99

$

In Stock, Qty 12

0

745

Murray 15X145MA

NUT, HEX
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

750

Murray 5543E701MA

HANDLE, LOWER
(Superseded to 1740626BMYP)

$

$

Not available

751

Murray 70984

SCREW

$4.49

$

In Stock, Qty 20+

0

752

Murray 071060

WASHER, SPTLK

$3.49

$

In Stock, Qty 20+

0

756

Murray 308146MA

BOOT, CABLE

$6.49

$

Usually ships in 2-12 days

0

758

Murray 1798

BOLT, HEX

$

$

Not available

759

Murray 579860MA

SPOOL, CABLE

$5.99

$

In Stock, Qty 7

0

760

Murray 1501059 YZ

BRKT, SPOOL
(Superseded to 1501059YZMA)

$3.49

$

In Stock, only 1 left!

0

762

Murray 1501122MA

CABLE, DRIVE

$8.49

$

In Stock, Qty 9

0

770

Murray 1501375 YZ

BRACKET, SHIFT
(Superseded to 1501375YZMA)

$10.99

$

Usually ships in 2-12 days

0

771

Murray 71007

SCREW

$

$

Not available

772

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71072

WASHER, FLAT

$

$

Not available

774

Murray 71046

NUT, HEX
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

785

Murray 71045

NUT, HEX

$

$

Not available

787

Murray 306689MA

KNOB, SHIFT

$14.99

$

Usually ships in 2-12 days

0

790

Murray 578926

ROD, ASSY LH

$80.99

$

Usually ships in 2-12 days

0

791

Murray 578924

ROD, ASSY RH

$75.99

$

In Stock, only 1 left!

0

795

Murray 579002

BRACKET, CAM

$

$

Currently unavailable

796

Murray 002X53MA

SCREW
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

798

Murray 71038

NUT, NYLOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

799

Murray 8417MA

CAM LOCK

$34.99

$

In Stock, only 4 left!

0

800

Murray 584673MA

PIN, SPRING PIVOT

$18.99

$

Usually ships in 2-12 days

0

801

Murray 73664MA

NUT, PUSH ON

$4.99

$

In Stock, only 3 left!

0

802

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

803

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

804

Murray 330635MA

ROD, SPEED CTRL

$

$

Not available

808

Murray 584593 YZ

NUT, TRUNNION

$

$

Not available

809

Murray 71071

WASHER
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

810

Murray 071081

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

811

Murray 579944MA

BEARING, FL

$15.99

$

Usually ships in 2-12 days

0

812

Murray 1501110 YZ

ROD, YOKE
(Superseded to 1501110YZMA)

$50.99

$

In Stock, only 1 left!

0

813

Murray 11X30MA

RETAINER, RING

$4.49

$

In Stock, Qty 11

0
