633134x85A - Murray 33" Snow Thrower (2000) Auger Housing Assembly Parts Diagram

33" Snow Thrower

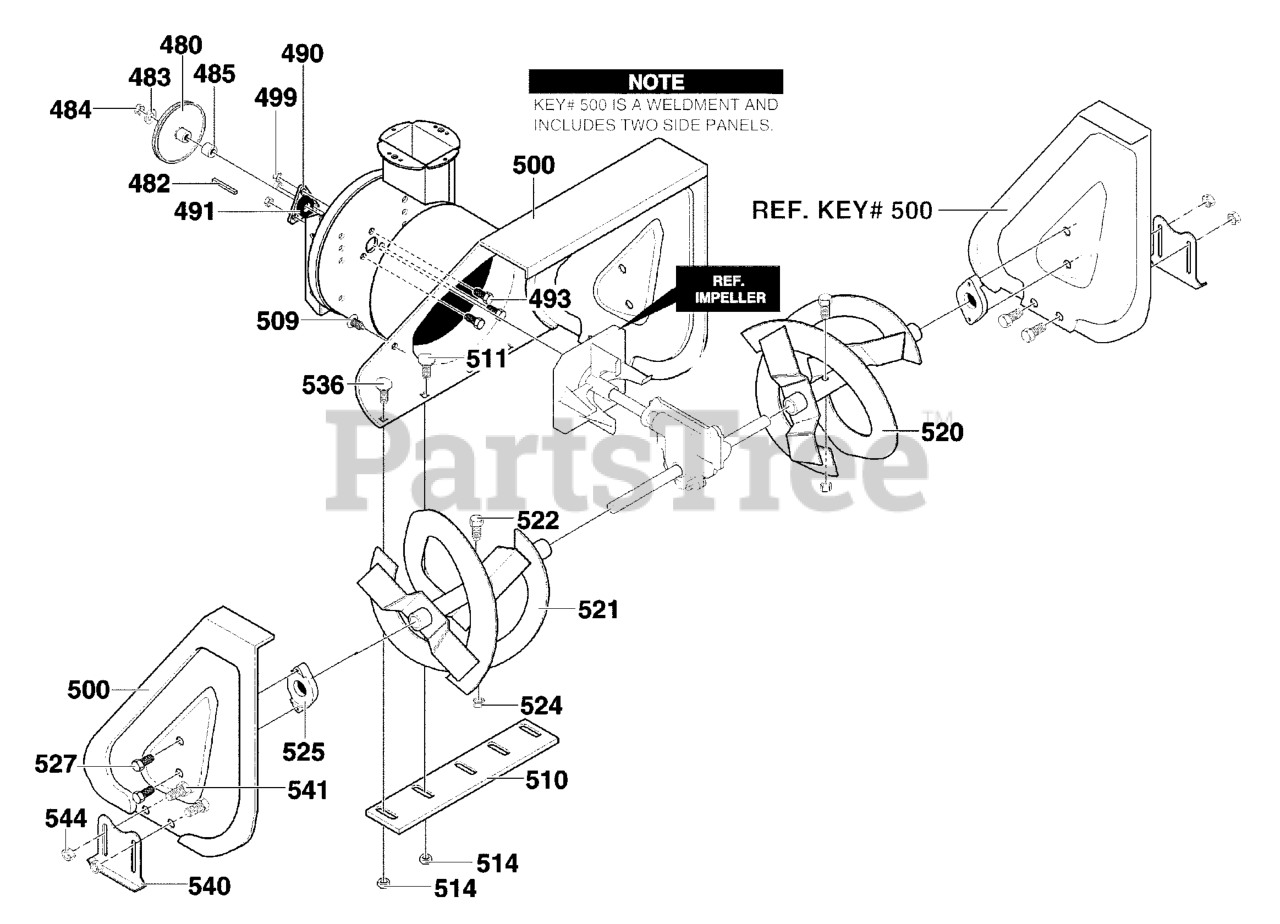

Auger Housing Assembly Parts Diagram

  • Title

480

Murray 583146MA

PULLEY, 4L 8.40

$

$

Not available

482

Murray 2001022MA

KEY, SQUARE

$4.49

$

In Stock, Qty 12

0

483

Murray 71074

WASHER, FLAT
(Superseded to 71074MA)

$

$

Not available

484

Murray 712121MA

NUT, 1/2-20 REGHXCTRLK

$4.49

$

In Stock, only 1 left!

0

485

Murray 334514MA

SPACER, SLEEVE

$7.99

$

Usually ships in 2-12 days

0

490

Murray 582960

RETAINER, BALL BRNG

$

$

Currently unavailable

491

Murray 043846

BEARING, BALL

$34.99

$

Usually ships in 2-12 days

0

493

Murray 313676

SCREW, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

499

Murray 710026

NUT, 5/16-18 HEXWDFLLK

$

$

Not available

500

Murray 761879-892

HOUSING, ASSY

$

$

Currently unavailable

509

Murray 760040MA

PLUG

$4.49

$

Usually ships in 2-12 days

0

510

Murray 760666-853

BLADE, SCRAPER

$

$

Currently unavailable

511

Murray 340720MA

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

514

Murray 710026

NUT, 5/16-18

$

$

Not available

520

Murray 760317-853

AUGER, ASSY, LH

$

$

Currently unavailable

521

Murray 760307-853

AUGER, ASSY, RH

$

$

Currently unavailable

522

Murray 578647MA

BOLT, .467X.235 HHSH 5/16-18
(Superseded to 703335)

$6.49

$

Usually ships in 2-12 days

0

524

Murray 71391

NUT, 5/16-18 REGHEXCTRLK
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

525

Murray 53757MA

AUGER SHAFT BEARING

$9.99

$

In Stock, only 2 left!

0

527

Murray 70984

SCREW, 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

536

Murray 340720MA

BOLT, 5/16-18X.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

540

Murray 762376-853

SKID, HEIGHT ADJUST

$

$

Not available

541

Murray 340720MA

CARR. BOLT, 5/16-18X.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

544

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
