633134x54A - Murray 33" Snow Thrower (2002) Wheels Parts Diagram

33" Snow Thrower

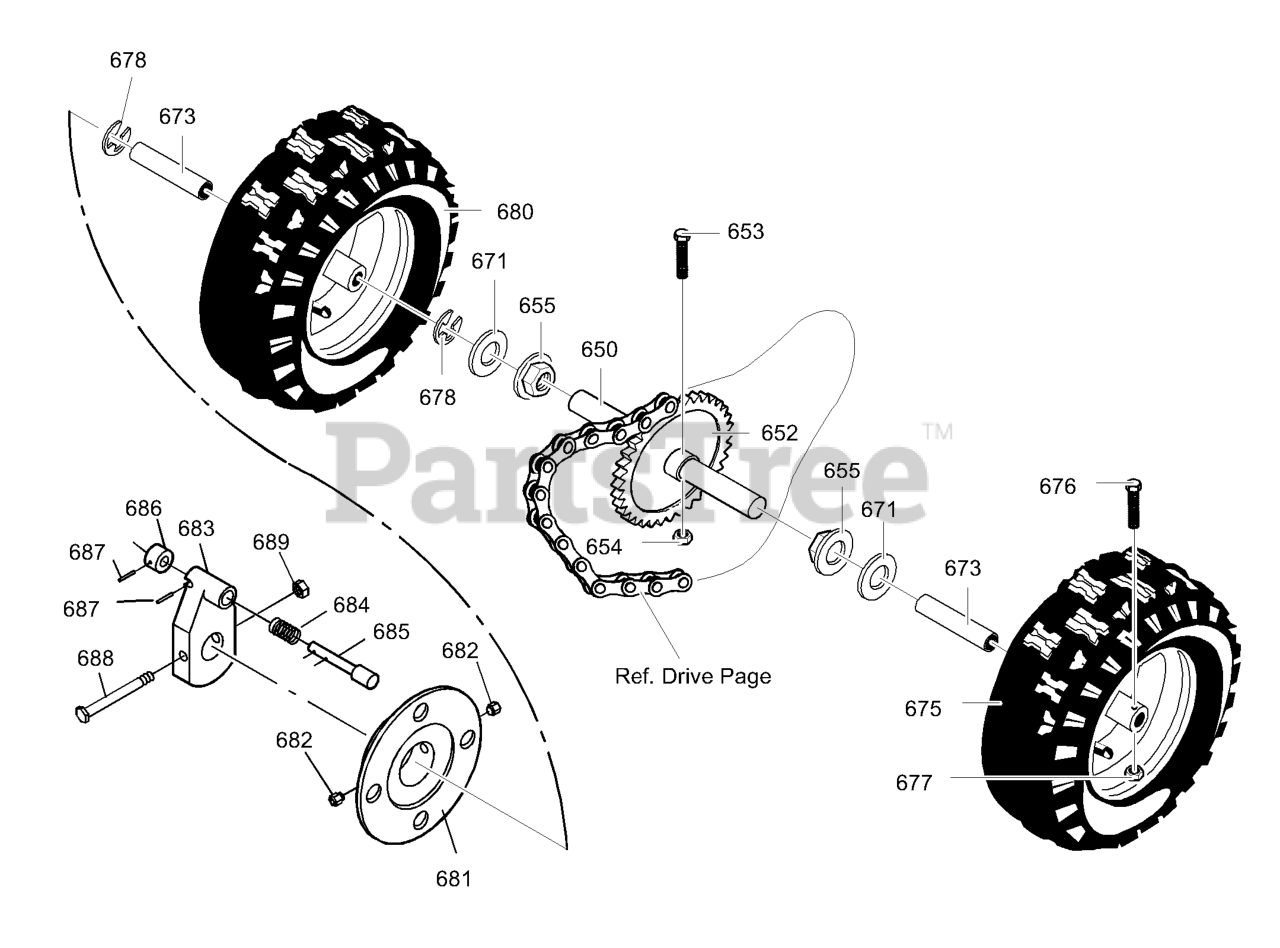

Wheels Parts Diagram

  • Title

650

Murray 1501284

SHAFT, AXLE

$21.99

$

Usually ships in 2-12 days

0

652

Murray 1501089

SPRKT & HUB
(Superseded to 1501089MA)

$42.99

$

In Stock, Qty 8

0

653

Murray 01X193MA

BOLT, HEX 1/4-20X1.75
(Superseded to 704212)

$5.49

$

In Stock, Qty 20+

0

654

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

655

Murray 1501114MA

RETAINER, BEARING

$11.99

$

In Stock, Qty 20+

0

671

Murray 712120MA

WASHER, FLAT

$4.99

$

In Stock, Qty 20+

0

673

Murray 1501138MA

BUSHING, WHEEL

$

$

Not available

675

Murray 584535MA

TIRE & RIM -RIGHT

$133.99

$

Usually ships in 2-12 days

0

676

Murray 577015MA

SCREW, 1/4-20X1.75 HH

$4.99

$

In Stock, Qty 5

0

677

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

678

Murray 239MA

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

680

Murray 584535MA

TIRE & RIM -LEFT

$133.99

$

Usually ships in 2-12 days

0

681

Murray 1501032

DISC, WHEEL

$

$

Currently unavailable

682

Murray 2001066MA

SCREW

$5.49

$

In Stock, Qty 20+

0

683

Murray 1501031MA

HUB, WHEEL LOCK

$

$

Not available

684

Murray 164X34MA

SPRING, COMPRESSION

$5.99

$

In Stock, Qty 19

0

685

Murray 1501033 YZ

PIN, LOCK

$28.99

$

In Stock, only 2 left!

0

686

Murray 1501034MA

KNOB

$23.99

$

Usually ships in 2-12 days

0

687

Murray 032X79

PIN

$

$

Not available

688

Murray 73839MA

SCREW

$5.49

$

In Stock, only 2 left!

0

689

Murray 15X145MA

NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
