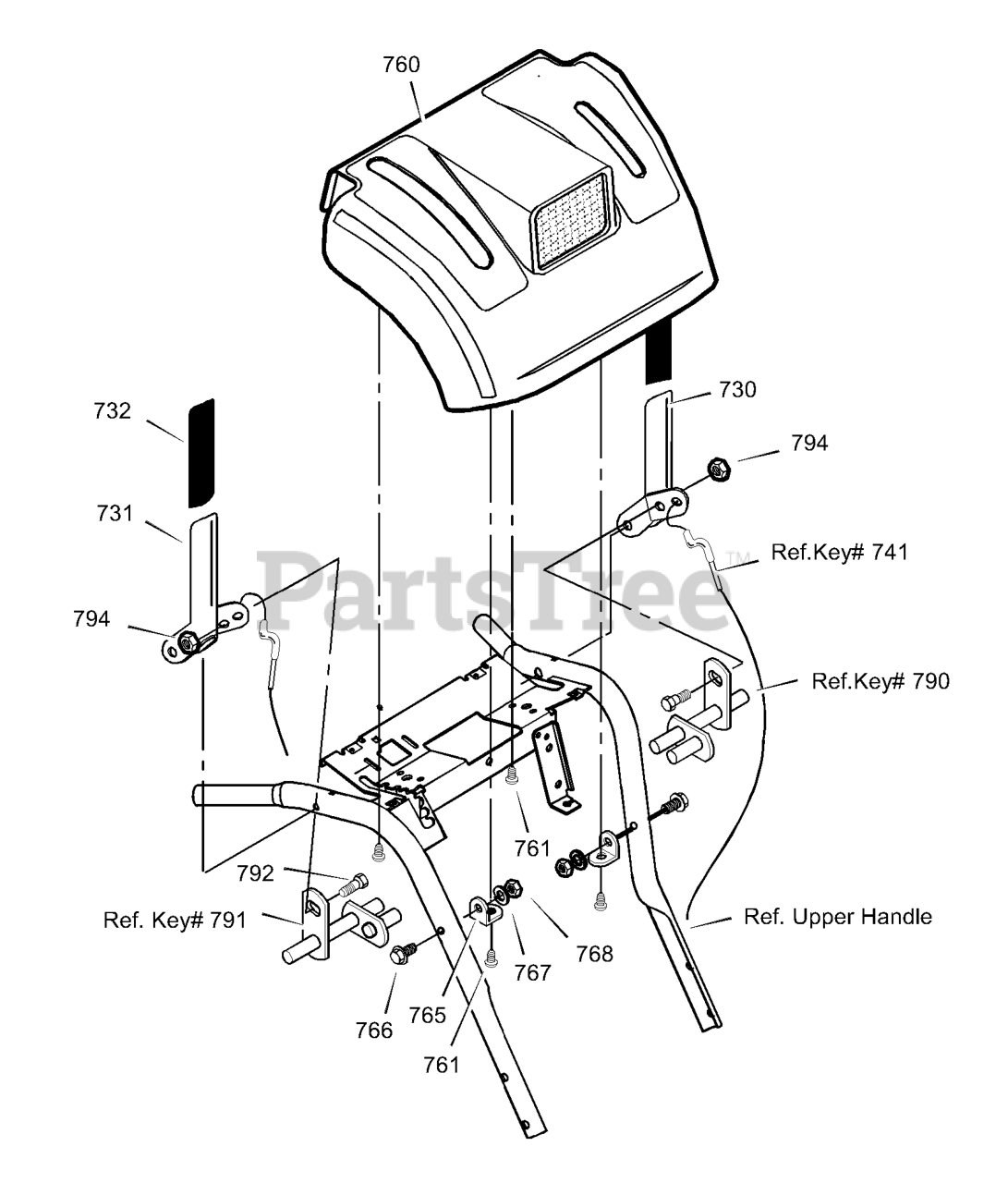

633134x54A - Murray 33" Snow Thrower (2002) Control Panel Parts Diagram

33" Snow Thrower

Control Panel Parts Diagram

  • Title

730

Murray 1501358E717

CLUTCH HANDLE LH

$

$

Currently unavailable

731

Murray 1501357E717

CLUTCH HANDLE RH

$

$

Currently unavailable

732

Murray 337380MA

GRIP, CLUTCH LEVER

$8.49

$

In Stock, only 2 left!

0

741

UNKNOWN

$

$

Not available

760

Murray 1501327

PANEL, CONTROL

$205.99

$

Usually ships in 2-12 days

0

761

Murray 316042MA

SCREW, 10 X .62

$4.49

$

Usually ships in 2-12 days

0

765

Murray 578866E717

BRACKET, PANEL

$10.99

$

Usually ships in 2-12 days

0

766

Murray 302900MA

SCREW, 5/16-18 x 1.75

$4.49

$

Usually ships in 2-12 days

0

767

Murray 071060

WASHER, HVSPTLK

$3.49

$

In Stock, Qty 20+

0

768

Murray 15X144

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

790

UNKNOWN

$

$

Not available

791

UNKNOWN

$

$

Not available

792

Murray 905531MA

BOLT, 1/4-20 X .50

$3.49

$

Usually ships in 2-12 days

0

794

Murray 908913MA

NUT, 1/4-20

$3.99

$

Usually ships in 2-12 days

0
