633134x54A - Murray 33" Snow Thrower (2002) Auger Housing Parts Diagram

33" Snow Thrower

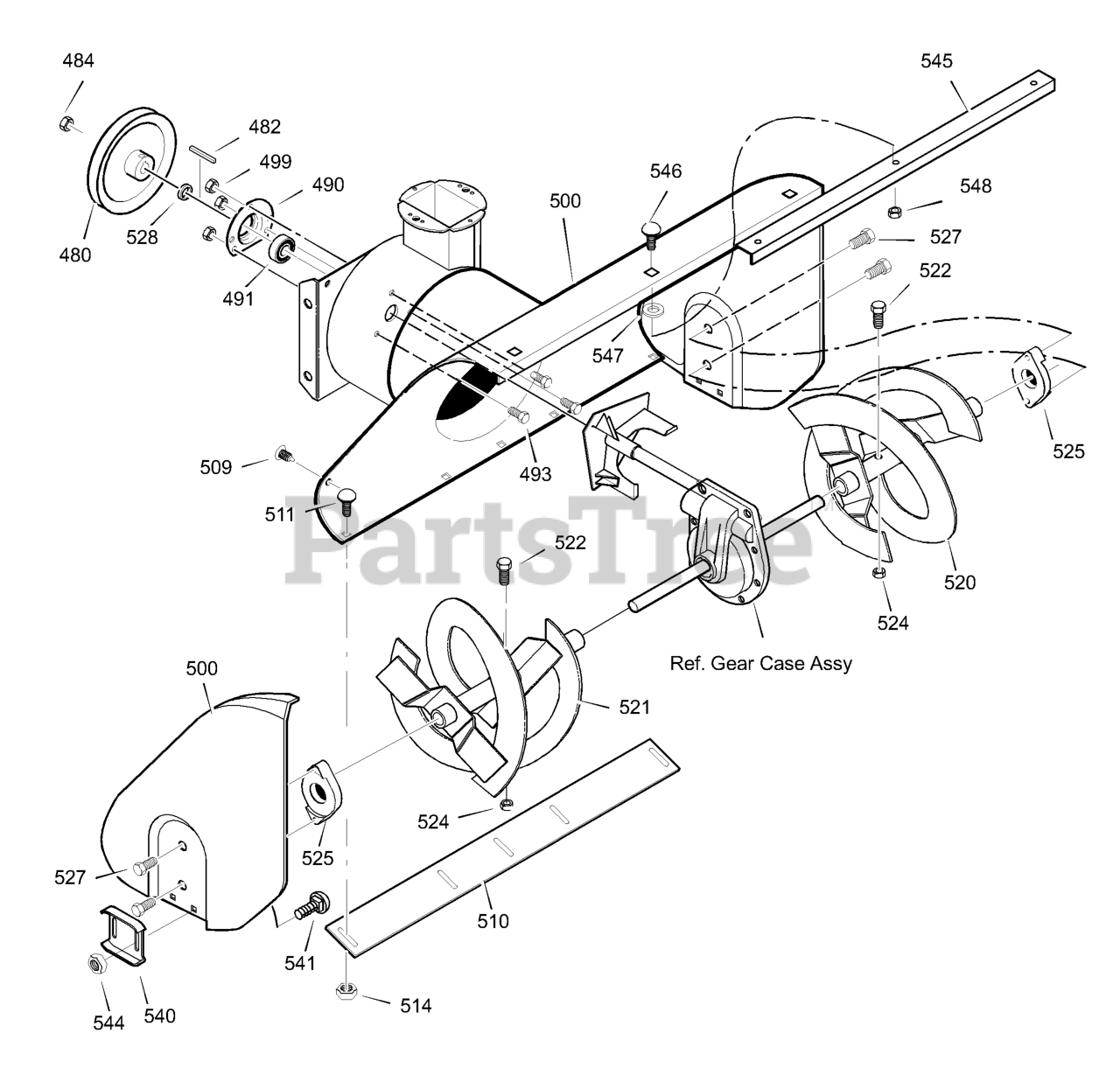

Auger Housing Parts Diagram

  • Title
480

$

$

Not available

482

Murray 2001022MA

KEY, SQUARE

$4.49

$

In Stock, Qty 11

0

484

Murray 15X112MA

NUT, 1/4-20

$5.49

$

In Stock, only 2 left!

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 10

0

490

Murray 582957 YZ

RETAINER, BALL BRNG
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 043846

BEARING, BALL

$34.99

$

In Stock, only 1 left!

0

493

Murray 001X92MA

BOLT, HEX - 0.31-18X0.50

$5.49

$

In Stock, only 3 left!

0

499

Murray 710026

NUT, 5/16-18 HEXWDFLLK

$

$

Not available

500

Murray 1501162E245

HOUSING, ASSY

$279.99

$

Usually ships in 2-12 days

0

509

Murray 760040MA

PLUG, CHRISTMAS TREE

$4.49

$

Usually ships in 2-12 days

0

510

Murray 760668E717MA

BLADE, SCRAPER
(Superseded to 760668E701MA)

$43.99

$

Usually ships in 2-12 days

0

511

Murray 340720MA

BOLT, CARRIAGE
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

514

$

$

Not available

520

Murray 760317E717

AUGER, ASSY, LH

$

$

Currently unavailable

521

Murray 760307E717

AUGER, ASSY, RH

$

$

Currently unavailable

522

Murray 578647MA

BOLT
(Superseded to 703335)

$6.49

$

Usually ships in 2-12 days

0

524

Murray 71391

NUT, 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

525

Murray 53757MA

BEARING,FLANGE

$9.99

$

In Stock, only 2 left!

0

527

Murray 70984

SCREW, 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

528

UNKNOWN

$

$

Not available

536

Murray 340720MA

BOLT
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

540

Murray 762377E717

SKID, HEIGHT ADJUST

$

$

Not available

541

Murray 340720MA

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

544

Murray 710026

NUT, 5/16-18 REGHEX

$

$

Not available

545

Murray 760717E245

STIFFENER, AUG. ASG.

$59.99

$

Usually ships in 2-12 days

0

546

Murray 340720MA

BOLT, CARR.
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

547

Murray 71071

WASHER
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

548

$

$

Not available
