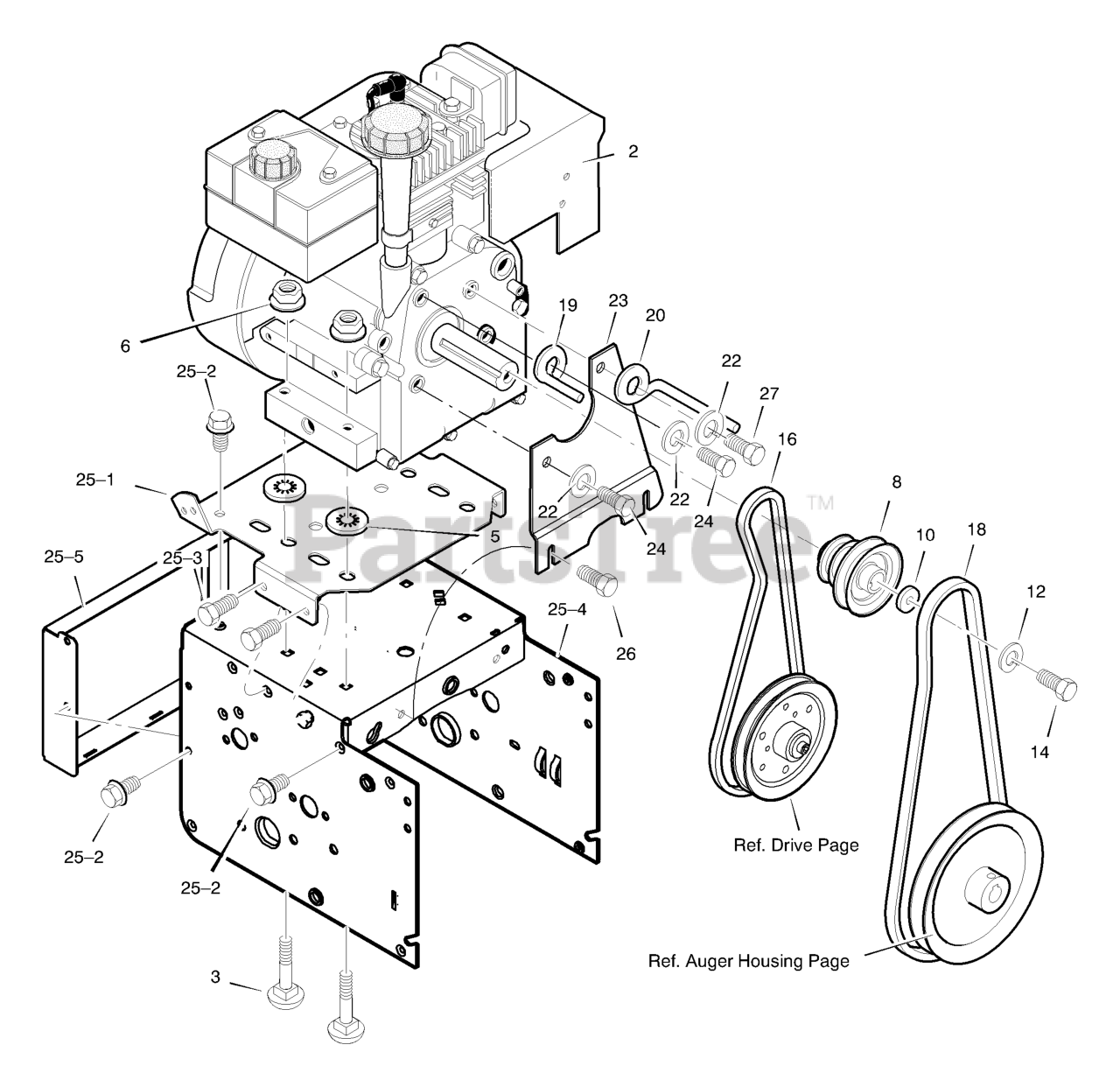

633129x5A - Murray 33" Snow Thrower (2003) Engine Parts Diagram

33" Snow Thrower

Engine Parts Diagram

  • Title

2

ENGINE

$

$

Not available

3

Murray 002X97MA

BOLT, CARRIAGE 5/16-18
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

5

Murray 028X76MA

RETAINER, PUSH

$4.49

$

Usually ships in 2-12 days

0

6

Murray 710026

NUT, HEX 5/16-18

$

$

Not available

8

Murray 1501109MA

PULLEY, ENGINE

$41.99

$

In Stock, Qty 7

0

10

Murray 710247

WASHER

$8.49

$

Usually ships in 2-12 days

0

12

Murray 71063

WASHER

$3.99

$

Usually ships in 2-12 days

0

14

Murray 71015

SCREW, 3/8-24 x 1.00

$

$

Not available

16

Murray 37X141

BELT, HYDRO DRIVE

$

$

Not available

18

Murray 761788MA

BELT, AUGER V 4L

$24.99

$

In Stock, only 2 left!

0

19

Murray 1501368

GUIDE, BELT
(Superseded to 1501368MA)

$35.99

$

Usually ships in 2-12 days

0

20

Murray 1501201MA

GUIDE, BELT
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

22

Murray 71060

WASHER, .31X.58X.08
(Superseded to 1501670MA)

$

$

Not available

23

Murray 1501754

PLATE, VIBRATION

$

$

Currently unavailable

24

Murray 710097

SCREW, 5/16-24 x 0.75

$10.99

$

In Stock, only 1 left!

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray 1501062E201

PLATE, ENGINE MOUNT

$61.99

$

Usually ships in 2-12 days

0

25-2

Murray 310169MA

SCREW, TAP 1/4-20 X .63
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0

25-3

Murray 25X020MA

SCREW, TAP 5/16-18 X .50

$4.99

$

In Stock, Qty 6

0

25-4

Murray 1501296E201

FRAME, MOTOR BOX

$

$

Currently unavailable

25-5

Murray 1501333E201

PANEL, BACK - HYDRO

$29.99

$

Usually ships in 2-12 days

0

26

Murray 26X263MA

SCREW

$4.99

$

In Stock, only 1 left!

0

27

Murray 910828MA

BOLT, HEX 5/16-24 X 1.00
(Superseded to 703301)

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-0310103L

OWNER'S MANUAL

$

$

Currently unavailable
