633129x54A - Murray 33" Snow Thrower (2001) Headlight Parts Diagram

33" Snow Thrower

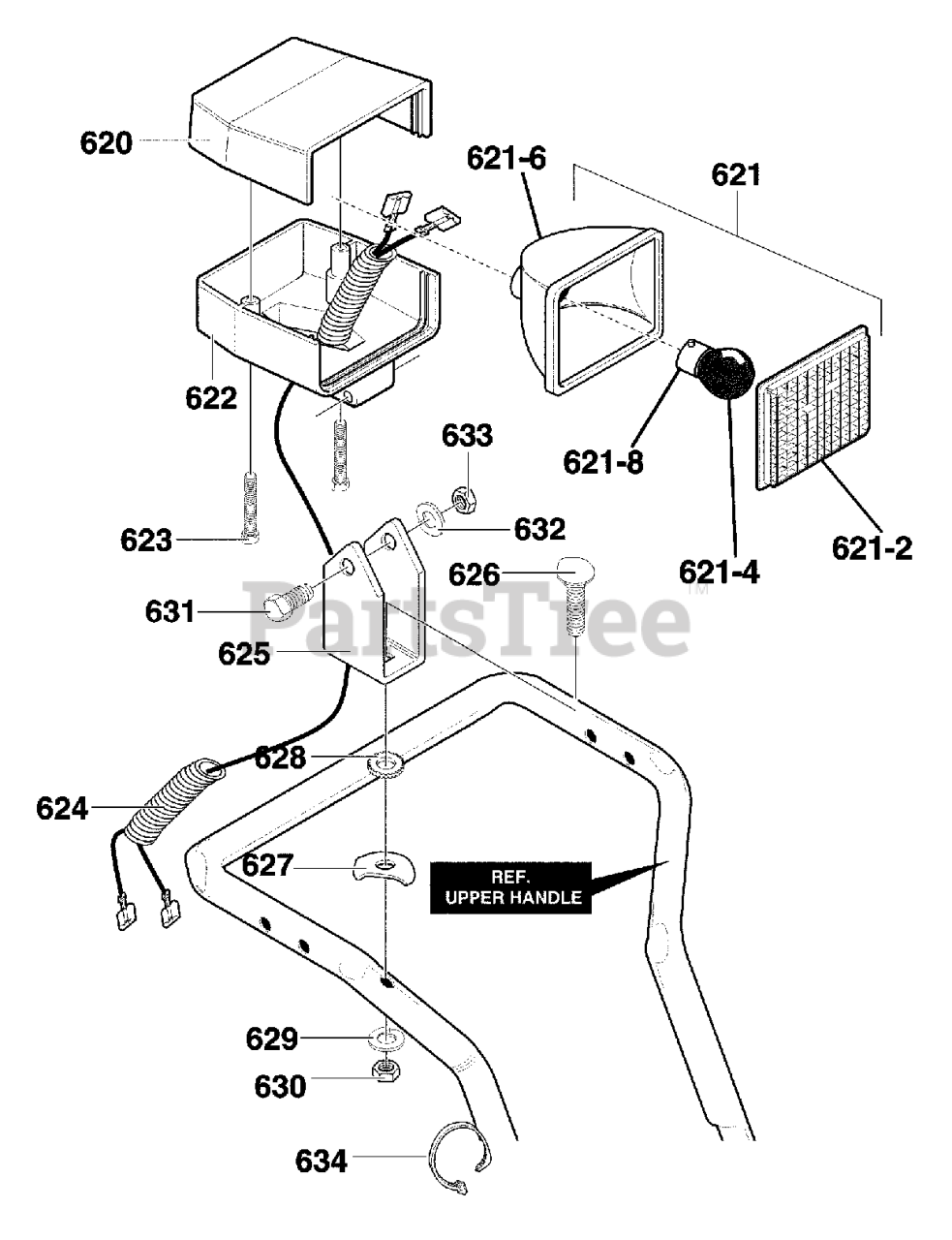

Headlight Parts Diagram

  • Title
620

Murray 307395MA

HOUSING, HEADLIGHT UPPER

$8.49

$

Usually ships in 2-12 days

0

621

Murray 581575MA

HEADLIGHT, ASSY

$46.99

$

Usually ships in 2-12 days

0

621-2

$25.99

$

Usually ships in 2-12 days

0

621-4

Murray 780216

BULB 1156

$

$

Currently unavailable

621-6

Murray 578303MA

BACK, METALIZED

$84.99

$

Usually ships in 2-12 days

0

621-8

$84.99

$

Usually ships in 2-12 days

0

622

Murray 580530

HOUSING, HEADLIGHT LOWER

$

$

Currently unavailable

623

Murray 307781MA

SCREW, #8X1.75

$3.99

$

Usually ships in 2-12 days

0

624

Murray 307767MA

WIRING HARNESS

$8.49

$

Usually ships in 2-12 days

0

625

Murray 4030

BRACKET, HEADLIGHT

$

$

Currently unavailable

626

Murray 4160

BOLT, 5/16-18X1.75 CARR.

$30.99

$

Usually ships in 2-12 days

0

627

Murray 580527MA

WASHER, SADDLE

$5.49

$

Usually ships in 2-12 days

0

628

Murray 71061

WASHER, EXLK .32X.60X.040

$

$

Not available

629

Murray 120638

WASHER, SPTLK .31X.58X.08

$

$

Not available

630

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

631

Murray 235MA

SCREW, 5/16-18 x 2.00

$4.49

$

Usually ships in 2-12 days

0

632

Murray 120638

WASHER, SPTLK

$

$

Not available

633

Murray 71037

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

634

Murray 57444

TIE, CABLE

$

$

Not available
