633129x54A - Murray 33" Snow Thrower (2001) Control Panel Parts Diagram

33" Snow Thrower

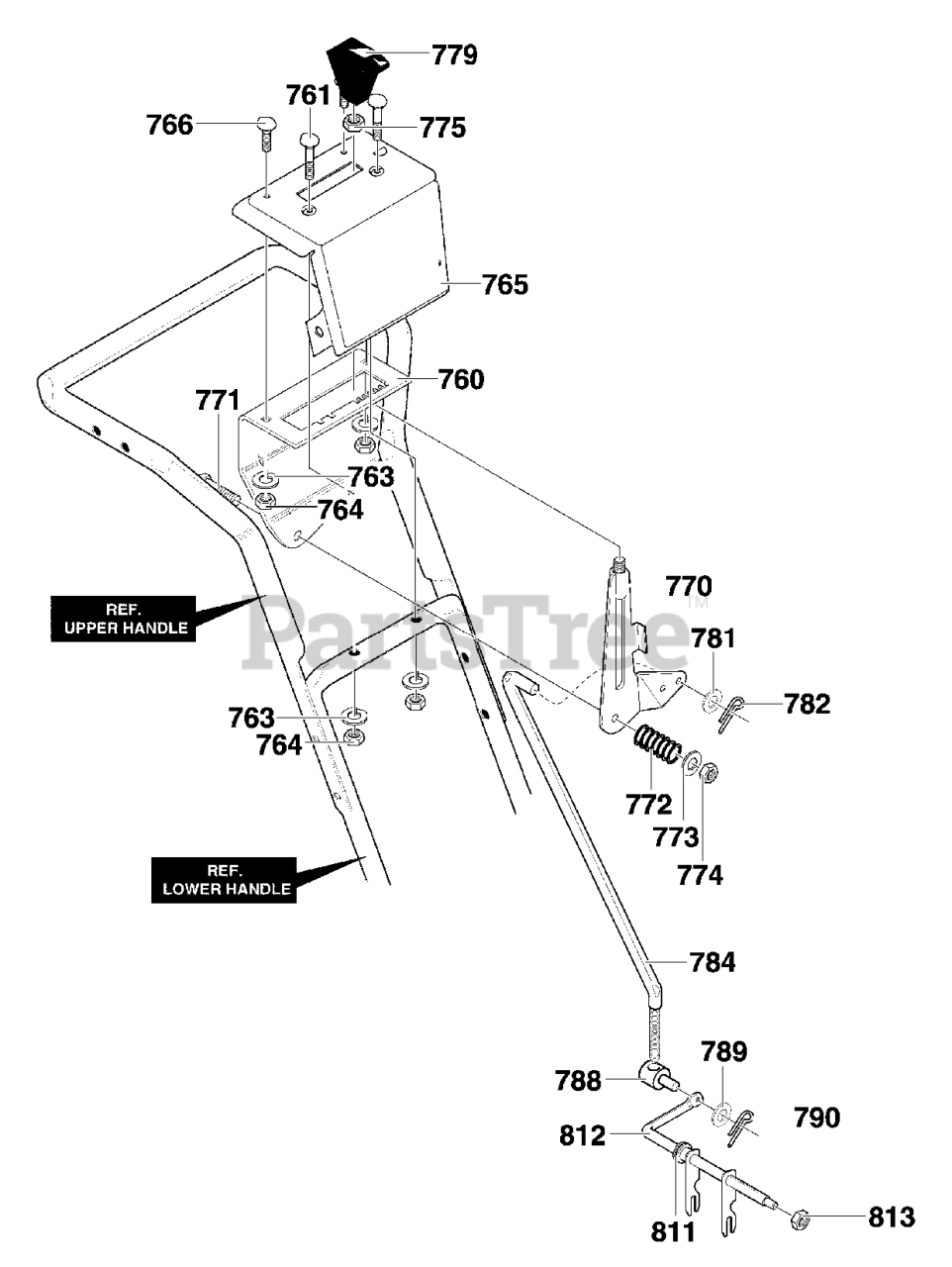

Control Panel Parts Diagram

  • Title

760

Murray 308905-821

BRACKET, SHIFT CONTROL

$

$

Currently unavailable

761

Murray 340715

CARR. BOLT, 1/4-20X.63
(Superseded to 340715MA)

$5.49

$

Usually ships in 2-12 days

0

763

Murray 071059MA

WASHER

$

$

Not available

764

Murray 120375

NUT, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

765

Murray 761973-821

CONTROL PANEL

$

$

Currently unavailable

766

Murray 762148

CARR. BOLT, 1/4-20X2.00

$

$

Not available

770

Murray 305260-821

SHIFT LEVER ASSY

$

$

Currently unavailable

771

Murray 302900MA

SCREW, 5/16-18 x 1.75

$4.49

$

Usually ships in 2-12 days

0

772

Murray 313842

SPRING

$

$

Currently unavailable

773

Murray 120393

WASHER, FLAT

$

$

Not available

774

Murray 71038

NUT, 5/16-18 HEXNYL
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

775

Murray 124829

NUT, 3/8-16 HEXJAM

$

$

Not available

779

Murray 306689MA

KNOB, SHIFT

$14.99

$

Usually ships in 2-12 days

0

781

Murray 120393

WASHER, FLAT

$

$

Not available

782

Murray 030X20MA

PIN, COTTER
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

784

Murray 761668MA

ROD, SPEED CONTROL

$10.99

$

Usually ships in 2-12 days

0

788

Murray 584593

NUT, TRUNNION 5/16-24

$5.49

$

Usually ships in 2-12 days

0

789

Murray 120393

WASHER, FLAT

$

$

Not available

790

Murray 030X20MA

PIN, COTTER
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

811

Murray 579944MA

FLANGED BEARING

$15.99

$

Usually ships in 2-12 days

0

812

Murray 337436

ROD ASSY, YOKE PANEL

$

$

Not available

813

Murray 071111

NUT, 3/8-16 HEX

$3.99

$

Usually ships in 2-12 days

0
