633128x43A - Yard King 33" Snow Thrower (2003) Gear Case Parts Diagram

33" Snow Thrower

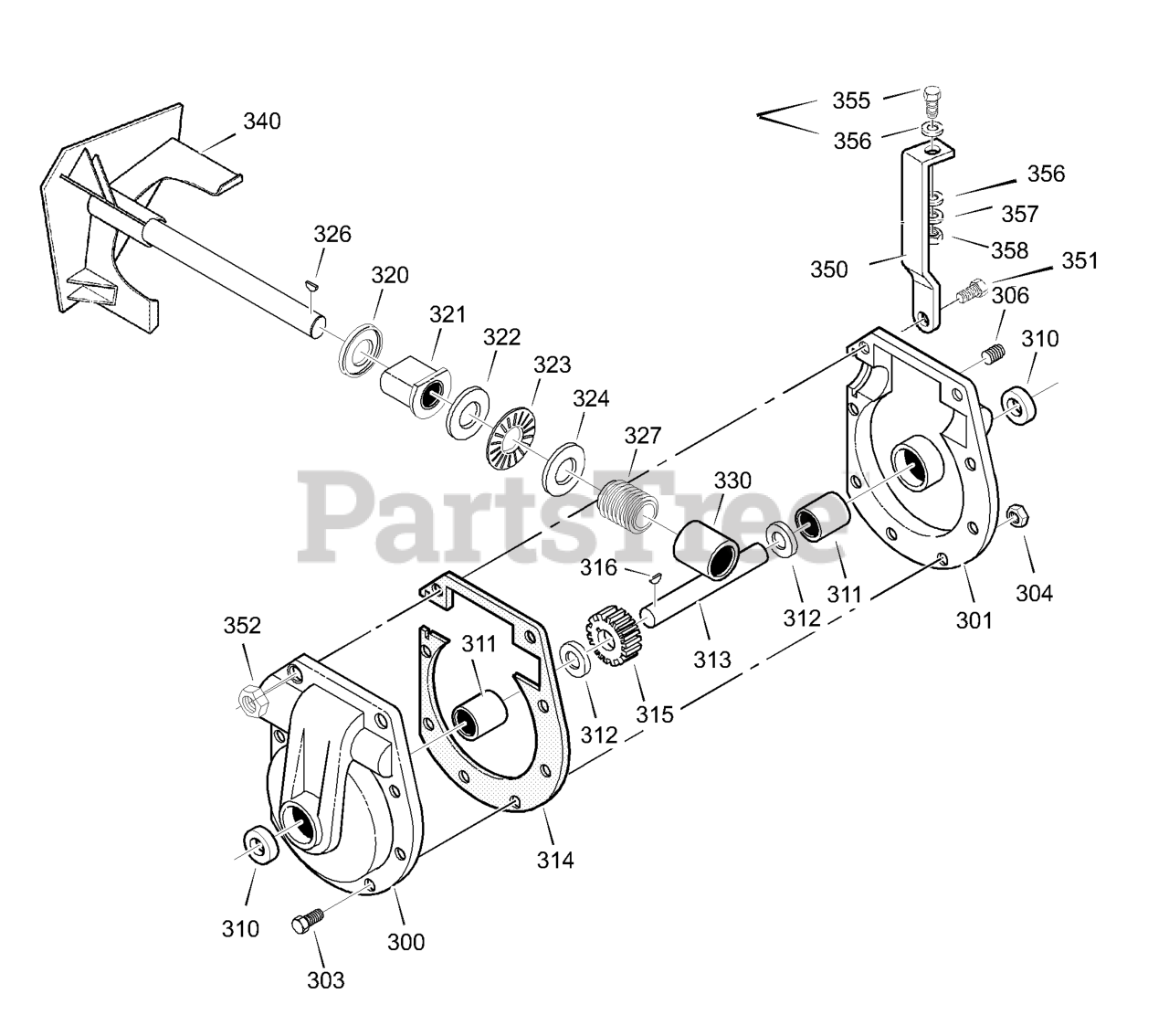

Gear Case Parts Diagram

  • Title
300

Murray 896MA

CASE, GEAR, RH

$32.99

$

In Stock, only 4 left!

0

301

Murray 895MA

CASE, GEAR, LH

$

$

Not available

303

Murray 910828MA

SCREW, 5/16-24 x 1.00
(Superseded to 703301)

$3.99

$

In Stock, only 3 left!

0

304

Murray 71100MA

NUT, 5/'16-24
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

306

Murray 53749MA

PLUG, PIPE 0.25-18
(Superseded to 703122)

$3.49

$

Usually ships in 2-12 days

0

310

Murray 780151MA

SEAL, OIL

$10.99

$

In Stock, Qty 6

0

311

Murray 53743

BEARING, SLEEVE
(Superseded to 53743MA)

$9.99

$

Usually ships in 2-12 days

0

312

Murray 53748MA

WASHER, FLAT

$9.99

$

In Stock, only 2 left!

0

313

Murray 760411MA

SHAFT, AUGER OUTPUT

$93.99

$

Usually ships in 2-12 days

0

314

Murray 897MA

GASKET, GEAR BOX

$

$

Not available

315

Murray 53730MA

WORM GEAR
(Superseded to 1752500YP)

$79.99

$

In Stock, Qty 5

0

316

Murray 73905MA

KEY, WOODRUFF #91
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

320

Murray 53737MA

RING, QUAD 0.924 ID

$4.99

$

In Stock, Qty 8

0

321

Murray 583126MA

BEARING, FLANGE

$13.99

$

In Stock, Qty 6

0

322

Murray 48275MA

WASHER, FLAT

$6.49

$

In Stock, Qty 6

0

323

Murray 50684MA

BEARING, ROLLER

$6.49

$

In Stock, only 1 left!

0

324

Murray 48275MA

WASHER, FLAT

$6.49

$

In Stock, Qty 6

0

326

$5.99

$

In Stock, only 1 left!

0

327

$49.99

$

In Stock, only 1 left!

0

330

Murray 53731MA

BEARING, SLEEVE

$5.49

$

In Stock, Qty 11

0

340

$

$

Not available

350

Murray 1442 YZ

BRACE, GEAR BOX

$9.49

$

Usually ships in 2-12 days

0

351

Murray 1441MA

SCREW, 5/16-24 x 1.75

$4.49

$

Usually ships in 2-12 days

0

352

Murray 71100MA

NUT, HEX 5/16-24
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

355

Murray 302636MA

SCREW, 5/16-18 x 1.25

$4.99

$

Usually ships in 2-12 days

0

356

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

357

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

358

Murray 15X144

NUT, REGHEX 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

--

Murray 333431MA

LUBRIPLATE, GR132, 14oz
(Superseded to 770622)

$31.99

$

Usually ships in 2-12 days

0
