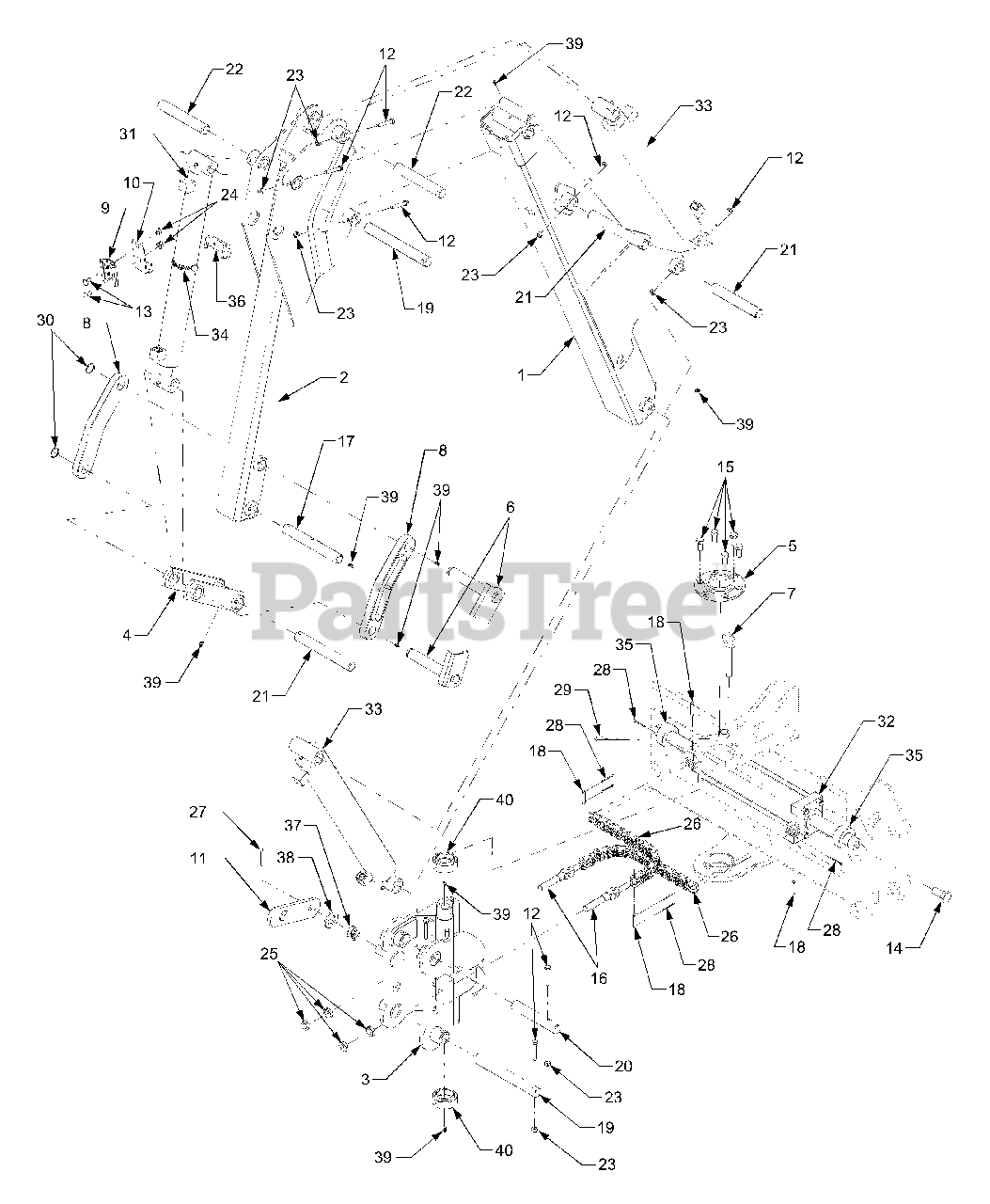

633 (590-633-100) - Cub Cadet 7.5' Backhoe Boom And Dipper Arm Parts Diagram

7.5' Backhoe

Boom And Dipper Arm Parts Diagram

  • Title

1

Cub Cadet 603-0943

Boom Assembly, Backhoe

$

$

Not available

Cub Cadet 777D06480

Graphic, Cub Cadet - Left Side

$

$

Not available

Cub Cadet 777D06481

Graphic, Cub Cadet - Right Side

$

$

Not available

2

Cub Cadet 603-0944

Arm Assembly, Dipper

$

$

Not available

3

Cub Cadet 603-0917

Pivot, Boom

$

$

Not available

4

Cub Cadet 603-0919

Crank, Bucket

$

$

Not available

5

Cub Cadet 603-0920

Cap, Bearing

$

$

Not available

6

Cub Cadet 603-0923

Pin Assembly. Wrist
(Superseded to 903-0923)

$

$

Not available

7

Cub Cadet 603-0935

Pin, Boom Swing Lock
(Superseded to 903-0935)

$

$

Not available

8

Cub Cadet 619-3082

Link, Bucket Guide

$

$

Not available

9

Cub Cadet 703-3814

Bracket, SMV Female

$

$

Not available

10

Cub Cadet 703-4073

Bracket, SMV Mounting

$

$

Not available

11

Cub Cadet 703-4075

Plate, Boom Lock

$

$

Not available

Cub Cadet 777I20927

Graphic, Lock

$

$

Not available

12

Cub Cadet 710-1684

Screw, Hex Cap, M8-1.25 x 50 Hardened

$5.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-1884

Screw, Carriage, M8-1.25 x 16

$

$

Not available

14

Cub Cadet 710-1886

Screw, Hex Cap, M20-2.5 x 40

$

$

Not available

15

Cub Cadet 710-1891

Screw, Hex Cap, M12-1.5 x 25 GR8.8

$22.99

$

In Stock, only 1 left!

0

16

Cub Cadet 711-1651

Pin, Chain Adjustment
(Superseded to 911-1651)

$205.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 711-1671

Pin, Wrist
(Superseded to 911-1671)

$101.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 711-1726

Pin, Chain Clevis
(Superseded to 911-1726)

$

$

Not available

19

Cub Cadet 711-1863

Pin, Wrist - Boom Pivot

$

$

Not available

20

Cub Cadet 711-1864

Pin, Wrist - Boom Cylinder
(Superseded to 911-1864)

$

$

Not available

21

Cub Cadet 711-1865

Pin, Wrist
(Superseded to 911-1865)

$

$

Not available

22

Cub Cadet 711-1869

Pin, Wrist - Dipper Pivot
(Superseded to 911-1869)

$

$

Not available

23

Cub Cadet 712-0692

Nut, Hex Nylon Lock, M8-1.25

$6.99

$

In Stock, only 2 left!

0

24

Cub Cadet 712-0714

Nut, Hex Flange Lock, M8-1.25

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-0719

Nut, Hex Jam, M16-2.0
(Superseded to 912-0719)

$

$

Not available

26

Cub Cadet 713-0601

Chain, Boom Swing
(Superseded to 913-0601)

$

$

Not available

27

Cub Cadet 714-0142

Pin, Cotter, 3/16 x 1.5

$6.49

$

In Stock, only 1 left!

0

28

Cub Cadet 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 714-3020

Pin, Internal Cotter

$4.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 716-0197

Ring, Retaining, 25mm

$6.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 717-3235

Cylinder, Bucket

$

$

Not available

32

Cub Cadet 717-3237

Cylinder, Boom Angle
(Superseded to 917-3237)

$

$

Not available

33

Cub Cadet 717-3324

Cylinder, Boom

$

$

Not available

34

Cub Cadet 726-3033

Clamp, Hose

$

$

Not available

35

Cub Cadet 731-3356

Bumper, Swing Cylinder

$

$

Not available

36

Cub Cadet 731-3373

Clamp, Hose

$

$

Not available

37

Cub Cadet 732-1179

Spring, Compression

$

$

Not available

38

Cub Cadet 736-0274

Washer, Special

$8.99

$

In Stock, Qty 14

0

39

Cub Cadet 737-0475

Fitting, Lube

$11.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 741-3117

Bearing, Spherical, 62mm x 40mm
(Superseded to 941-3117)

$

$

Not available
