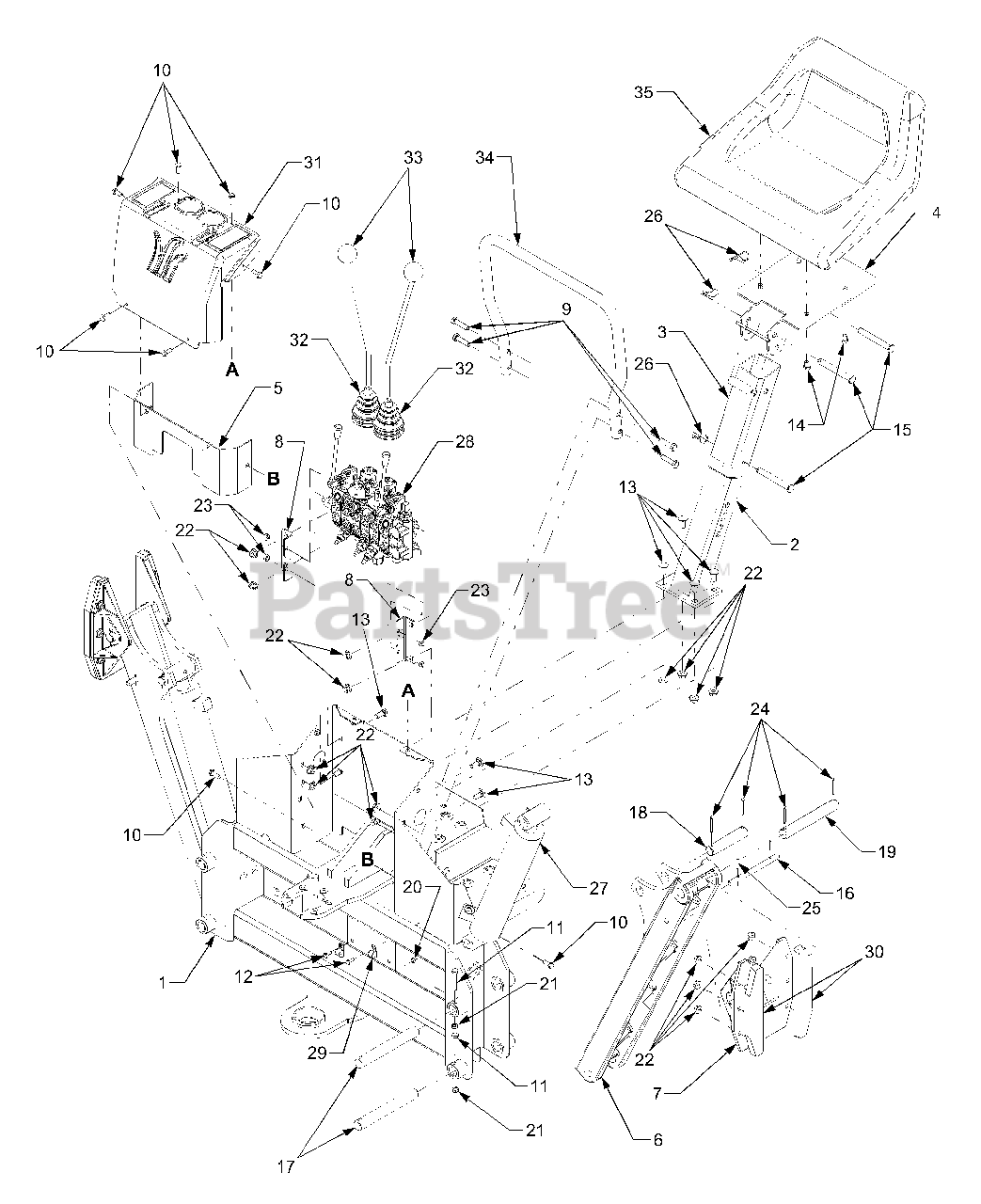

633 (590-633-100) - Cub Cadet 7.5' Backhoe Backhoe Base And Stabilizer Arms Parts Diagram

7.5' Backhoe

Backhoe Base And Stabilizer Arms Parts Diagram

  • Title

1

Cub Cadet 603-0918

Base Assembly

$

$

Not available

Cub Cadet 777S30614

Graphic, Warning

$

$

Not available

Cub Cadet 777S30615

Graphic, Danger/Warning

$

$

Not available

2

Cub Cadet 603-0922

Mount Assembly, Seat

$

$

Not available

3

Cub Cadet 603-0927

Pedestal, Seat

$

$

Not available

4

Cub Cadet 603-0928

Hinge Plate, Seat

$

$

Not available

5

Cub Cadet 603-0939

Bracket, Hose Guard

$

$

Not available

6

Cub Cadet 619-3080

Arm, Stabilizer

$

$

Not available

7

Cub Cadet 619-3081

Pad, Stabilizer

$

$

Not available

8

Cub Cadet 703-4039

Bracket, Valve Mounting

$

$

Not available

9

Cub Cadet 710-1641

Screw, Hex Cap, M10 -1.5 x 40 Gr10.9

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-1681

Screw, Hex Cap, M8-1.25 x 20 Hardened

$5.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-1684

Screw, Hex Cap, M8-1.25 x 50 Hardened

$5.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-1690

Screw, Hex Cap, M6-1.0 x 16 Hardened

$2.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-1885

Screw, Carriage, M10-1.5 x 25

$

$

Not available

14

Cub Cadet 710-0168

Screw, Hex Cap, 3/8-16 x .5 GR5

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 711-1668

Pin, Seat Pivot
(Superseded to 911-1668)

$

$

Not available

16

Cub Cadet 711-1727

Pin, Stablizer Pad
(Superseded to 911-1727)

$

$

Not available

17

Cub Cadet 711-1865

Pin, Stabilizer Wrist
(Superseded to 911-1865)

$

$

Not available

18

Cub Cadet 711-1867

Pin, Stabilizer Pad Wrist
(Superseded to 911-1867)

$

$

Not available

19

Cub Cadet 711-1868

Pin, Stabilizer Pad Wrist
(Superseded to 911-1868)

$

$

Not available

20

Cub Cadet 712-0691

Nut, Hex Nylon Lock, M6-1.0

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-0692

Nut, Hex Nylon Lock, M8-1.25

$6.99

$

In Stock, only 1 left!

0

22

Cub Cadet 712-0718

Nut, Hex Flange, M10-1.5
(Superseded to 712-04052)

$

$

Not available

23

Cub Cadet 712-3077

Nut, Hex, M8-1.25 GR 8.8

$

$

Not available

24

Cub Cadet 714-0142

Pin, Cotter, 3/16 x 1.5

$6.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 714-3004

Pin, Cotter, 3/32 x 1.25

$4.99

$

In Stock, Qty 9

0

26

Cub Cadet 714-3020

Pin, Internal Cotter

$4.49

$

In Stock, only 2 left!

0

27

Cub Cadet 717-3236

Cylinder, Stabilizer Arm
(Superseded to 917-3236)

$

$

Not available

28

Cub Cadet 718-3142

Valve, Hydraulic Control

$

$

Not available

29

Cub Cadet 726-0272

Clamp, Hose, 9/16 Dia

$7.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-3354

Pad, Stabilizer

$

$

Not available

31

Cub Cadet 731-3357

Cover, Valve

$

$

Not available

Cub Cadet 777I20925

Graphic, Boom Control

$

$

Not available

Cub Cadet 777I20926

Graphic, Dipper Arm/Bucket

$

$

Not available

32

Cub Cadet 731-3358

Boot, Valve Handle

$

$

Not available

33

Cub Cadet 747-3476

Lever, Valve Control

$

$

Not available

34

Cub Cadet 749-3104

Handle, Backhoe

$

$

Not available

35

Cub Cadet 757-0360A

Seat, Medium Back
(Superseded to 957-0360A)

$

$

Not available
