633 (590-633-100) - Cub Cadet 7.5' Backhoe att Backhoe Buckets Parts Diagram

7.5' Backhoe

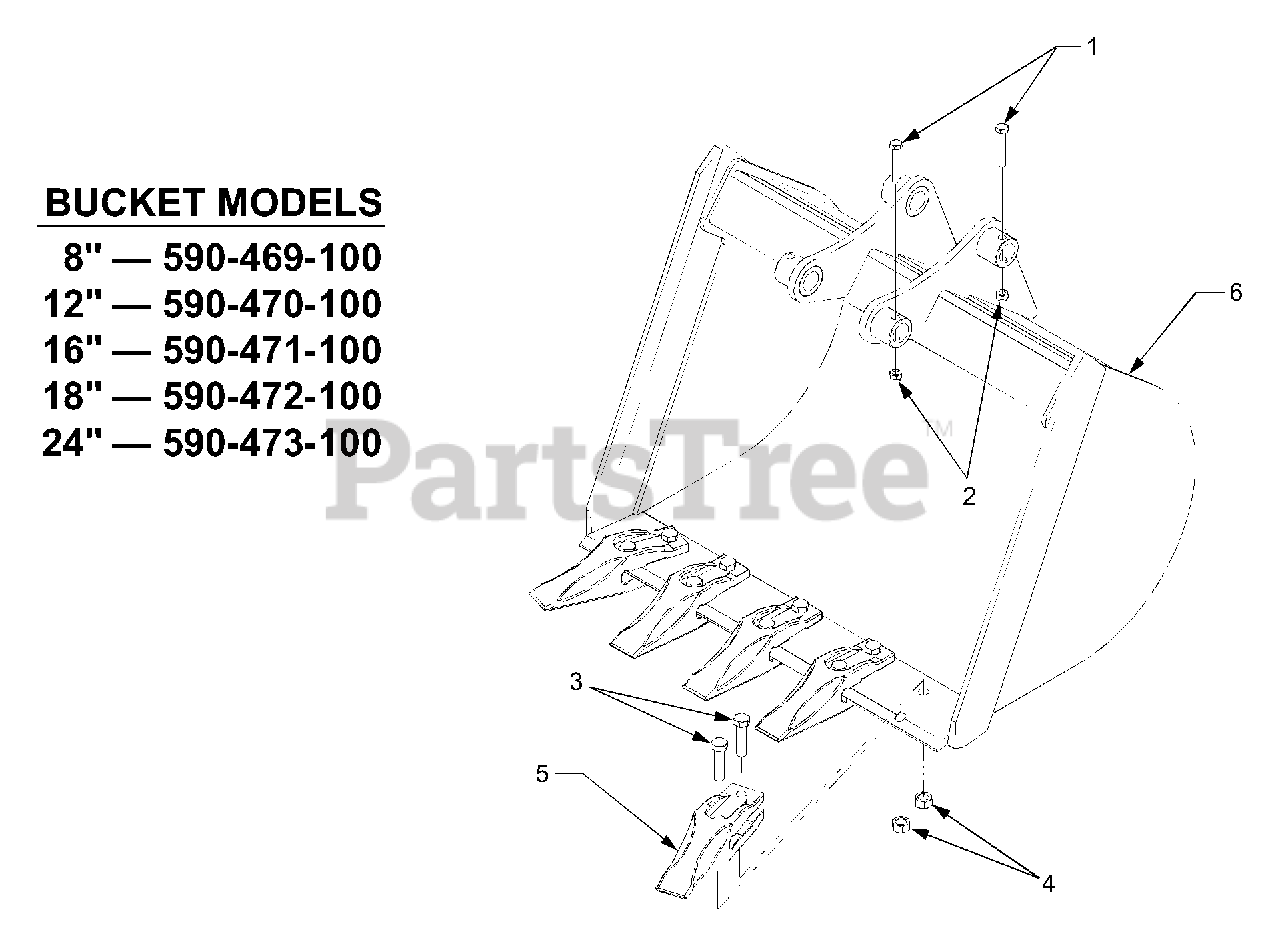

Backhoe Buckets Parts Diagram

  • Title

1

Cub Cadet 710-1684

Screw, Hex Cap, M8-1.25 x 50 Hardened

$5.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-0692

Nut, Hex Nylon Lock, M8-1.25

$6.99

$

In Stock, only 2 left!

0

3

Cub Cadet 710-1890

Screw,Hex Cap, M12-1.75 x 45 GR8.8 8" and 12" Bucket

$

$

Not available

Cub Cadet 710-1890

Screw,Hex Cap, M12-1.75 x 45 GR8.8 16" and 18" Bucket

$

$

Not available

Cub Cadet 710-1890

Screw,Hex Cap, M12-1.75 x 45 GR8.8 24" Bucket

$

$

Not available

4

Cub Cadet 712-0630

Nut, Hex, M12-1.75 8" and 12" Bucket

$

$

Not available

Cub Cadet 712-0630

Nut, Hex, M12-1.75 16" and 18" Bucket

$

$

Not available

Cub Cadet 712-0630

Nut, Hex, M12-1.75 24" Bucket

$

$

Not available

5

Cub Cadet 619-3083

Tine, Backhoe 8" and 12" Bucket

$

$

Not available

Cub Cadet 619-3083

Tine, Backhoe 16" and 18" Bucket

$

$

Not available

Cub Cadet 619-3083

Tine, Backhoe 24" Bucket

$

$

Not available

6

Cub Cadet 603-0921

8" Bucket Assembly

$

$

Currently unavailable

Cub Cadet 603-0929

12" Bucket Assembly

$

$

Currently unavailable

Cub Cadet 603-0930

16" Bucket Assembly

$

$

Currently unavailable

Cub Cadet 603-0931

18" Bucket Assembly

$

$

Currently unavailable

Cub Cadet 603-0932

24" Bucket Assembly

$

$

Currently unavailable
