631109x54A - Murray 31" Snow Thrower (2001) Auger Housing Assembly Parts Diagram

31" Snow Thrower

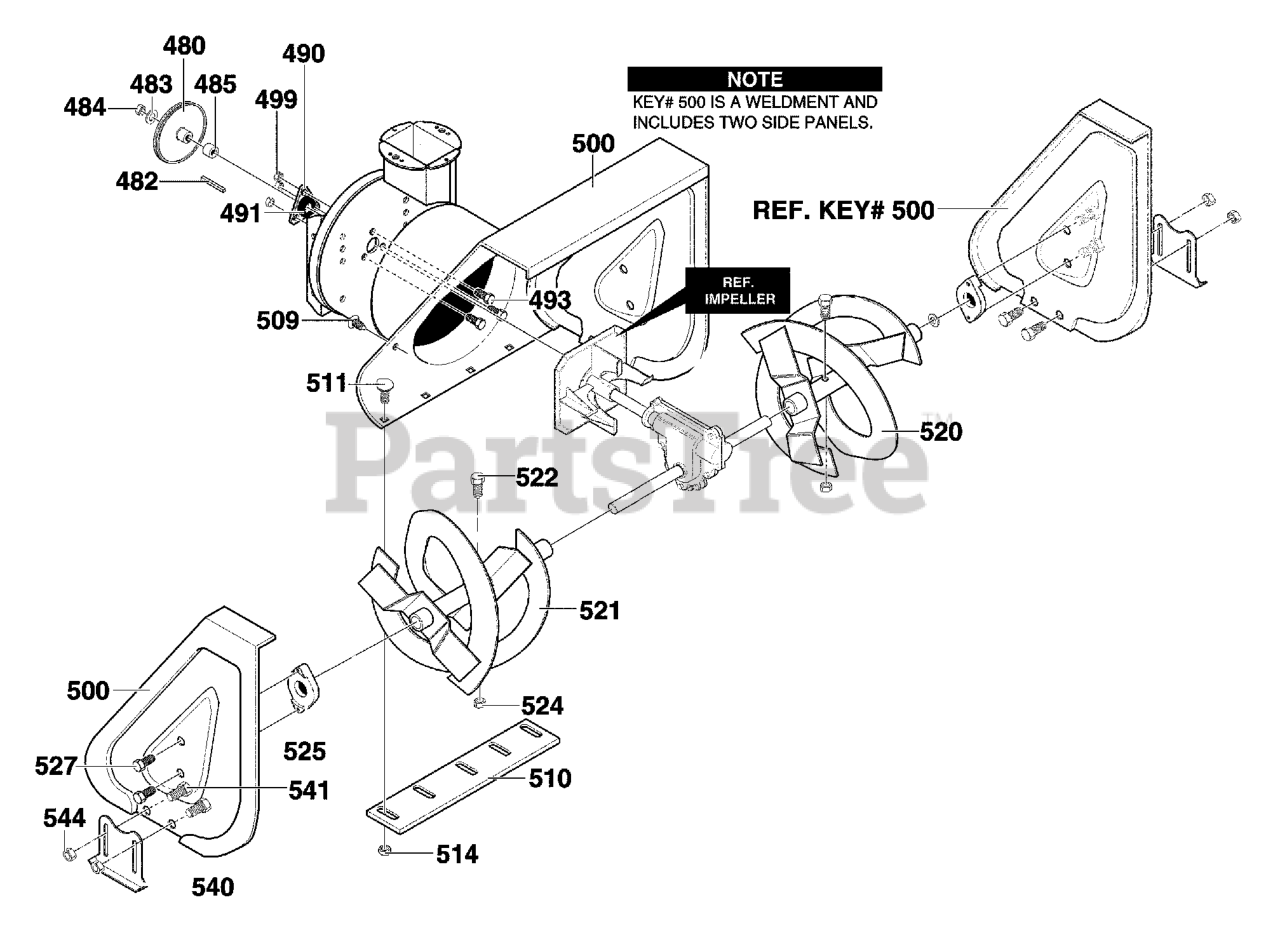

Auger Housing Assembly Parts Diagram

  • Title
480

Murray 583146MA

PULLEY, V4L

$

$

Not available

482

Murray 2001022MA

KEY, SQUARE

$4.49

$

In Stock, Qty 12

0

483

Murray 71074

WASHER, FLAT .53X1.00X.063
(Superseded to 71074MA)

$

$

Not available

484

Murray 712121MA

NUT, 1/2-20 REGHEXCTRLK

$4.49

$

In Stock, only 1 left!

0

485

Murray 334514MA

SPACER, SLEEVE

$7.99

$

Usually ships in 2-12 days

0

490

Murray 582960

RETAINER, BALL

$

$

Currently unavailable

491

Murray 043846

BEARING, BALL

$34.99

$

Usually ships in 2-12 days

0

493

Murray 313676

SCREW, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

499

Murray 710026

NUT, 5/16-18

$

$

Not available

500

Murray 761876-860

HOUSING, ASSY

$

$

Currently unavailable

509

Murray 760040MA

PLUG, CHRISTMAS TREE

$4.49

$

Usually ships in 2-12 days

0

510

Murray 760667-821

SCRAPER BLADE

$

$

Not available

511

Murray 340720MA

BOLT, 1/4-20X.75 CARR.
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

514

Murray 710026

NUT, 5/16-18 HEXWDFLLK WHIZ

$

$

Not available

520

Murray 760322-821

AUGER, LH

$

$

Currently unavailable

521

Murray 760312-821

AUGER, RH

$

$

Currently unavailable

522

Murray 578647MA

BOLT
(Superseded to 703335)

$6.49

$

Usually ships in 2-12 days

0

524

Murray 1498

NUT, 5/16-18 REGHXCTRLK

$

$

Not available

525

Murray 53757MA

BEARING, AUGER SHAFT

$9.99

$

In Stock, only 2 left!

0

527

Murray 782967MA

SCREW, 5/16-18 x 0.75

$4.49

$

Usually ships in 2-12 days

0

540

Murray 762379-821

SKID, HEIGHT ADJUST

$

$

Currently unavailable

541

Murray 340720MA

BOLT, 5/16-18X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

544

Murray 710026

NUT, 5/16-18

$

$

Not available

545

Murray 760718-860

STIFFENER

$

$

Currently unavailable

546

Murray 340720MA

BOLT, 5/16-18
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

547

Murray 120393

FLATWASHER

$

$

Not available

549

Murray 710026

NUT 5/16-18

$

$

Not available
