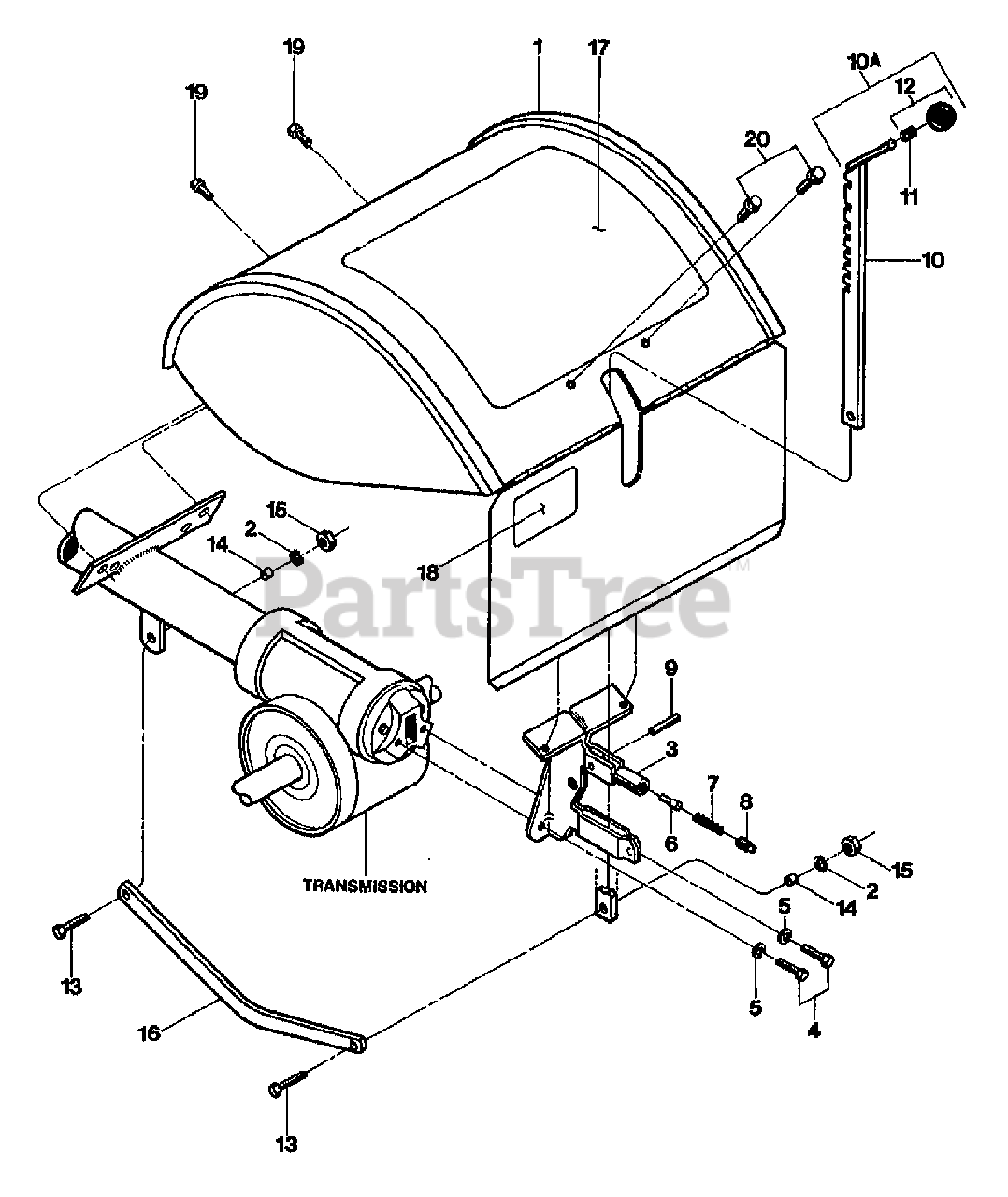

6311 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: E0001001 - E0008843) HOOD & DEPTH Parts Diagram

Econo-Horse Rear-Tine Tiller

HOOD & DEPTH Parts Diagram

  • Title
1

Troy-Bilt 11020

HOOD W/DECALS-ECONO(INCL. DECALS 2503 & 2504)

$

$

Currently unavailable

2

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

3

Troy-Bilt 2255

KIT-REAR HOOD BRKT

$

$

Currently unavailable

4

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 ZP (BRACKET TO REAR BEARING CAP)

$

$

Currently unavailable

5

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

6

Troy-Bilt 1119

PLUNGER

$

$

Currently unavailable

7

Troy-Bilt 1120

SPRING .406 X 1.25

$

$

Currently unavailable

8

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$4.49

$

In Stock, only 3 left!

0

9

Troy-Bilt 9308

PIN-ROLL .25 X 1 (SPIRAL)
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 15

0

10

0

BAR - DEPTH ADJUSTMENT (NOT AVAIL. SEP. SEE 10A)

$

$

Not available

10A

Troy-Bilt 1117A

DEPTH REGULATOR W/KNOB (INCL. 10,11,12)
(Superseded to 1900864)

$86.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$6.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 9119

KNOB-CONTROL (INCL. 11)
(Superseded to GW-9119)

$11.99

$

In Stock, Qty 8

0

13

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable

14

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

16

Troy-Bilt 20775

DRAG BAR-BENT
(Superseded to 1916185001)

$

$

Not available

17

Troy-Bilt 2503

DECAL-OPER INST

$

$

Currently unavailable

18

Troy-Bilt 2504

DECAL-HOOD LOGO ECONO (MODEL NAME DECAL)

$

$

Currently unavailable

19

Troy-Bilt 9553

SCR-HWH 5/16-18 X .5 STH
(Superseded to 710-0607)

$6.99

$

In Stock, Qty 11

0

20

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH (ATTACHES HOOD TO DEPTH REGULATOR BRACKET)
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0
