631 (590-631-100) - Cub Cadet 60" Mower Deck, Rear Mount att 60" Mower PTO Shaft Parts Diagram

60" Mower Deck, Rear Mount

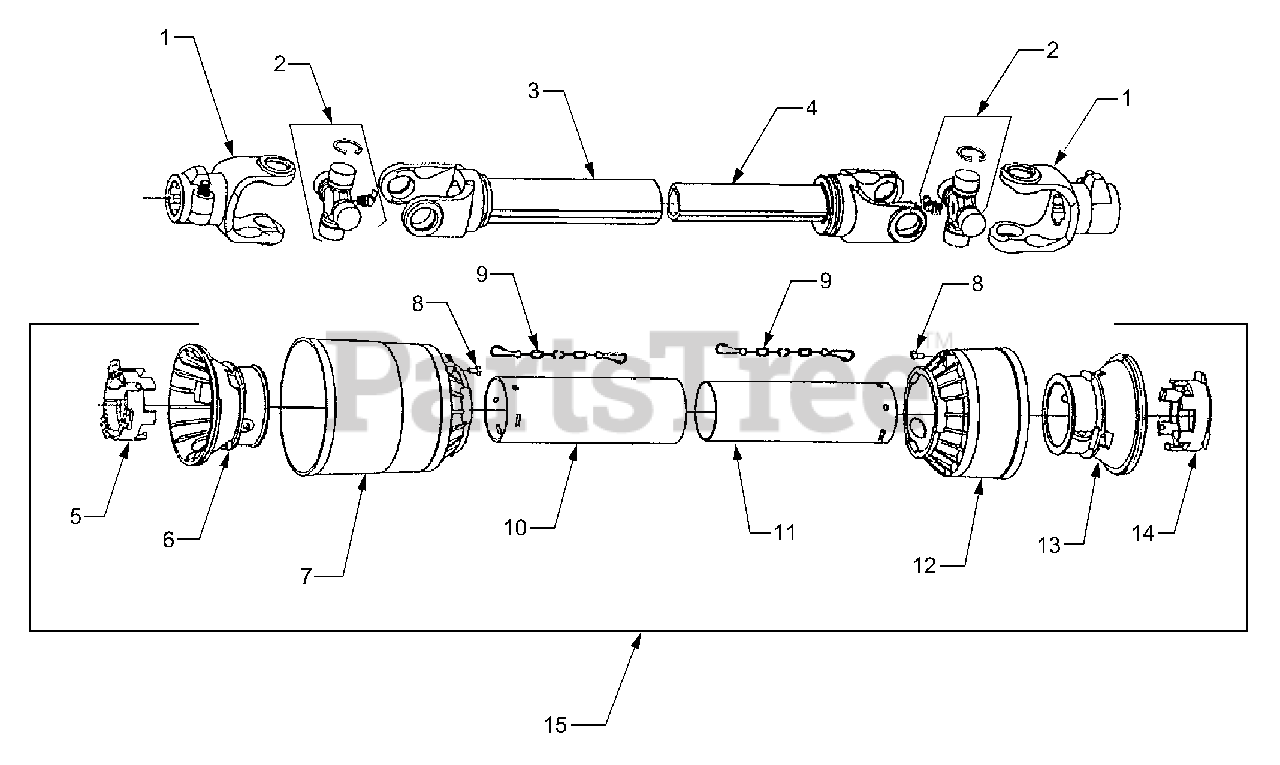

60" Mower PTO Shaft Parts Diagram

  • Title

Cub Cadet BF-050-0414

PTO Shaft Complete

$

$

Not available

1

Cub Cadet BF-023-001E

Yoke Assembly

$

$

Not available

2

Cub Cadet BF-013-130E

Cross and Bearing

$

$

Not available

3

Cub Cadet BF-1943055C

Outside Tube w/Yoke

$

$

Not available

4

Cub Cadet BF-1953057C

Inside Tube w/Yoke

$

$

Not available

5

Cub Cadet BF-1784210C

Collar

$

$

Not available

6

Cub Cadet BF-1784201C

Outer Tube Ridged Cone

$26.99

$

In Stock, only 1 left!

0

7

Cub Cadet BF-1784205C

Soft Cone

$

$

Not available

8

Cub Cadet BF-1784212C

Pin

$

$

Not available

9

Cub Cadet BF-016-025E

Chain

$

$

Not available

10

Cub Cadet BF-1773053C

Outer Shield

$

$

Not available

11

Cub Cadet BF-1872053C

Inner Shield

$

$

Not available

12

Cub Cadet BF-1784203C

Soft Cone

$

$

Not available

13

Cub Cadet BF-1784202C

Inner Tube Ridged Cone

$

$

Not available

14

Cub Cadet BF-1784211C

Collar

$

$

Not available

15

Cub Cadet BF-9443453C

Complete PTO Shaft Shield

$

$

Not available
