6302 - Lawn-Boy Walk-Behind Mower (SN: C00000001 - C99999999) (1984) Housing And Shroud Group Model: 6262 (standard Housing) Parts Diagram

Walk-Behind Mower

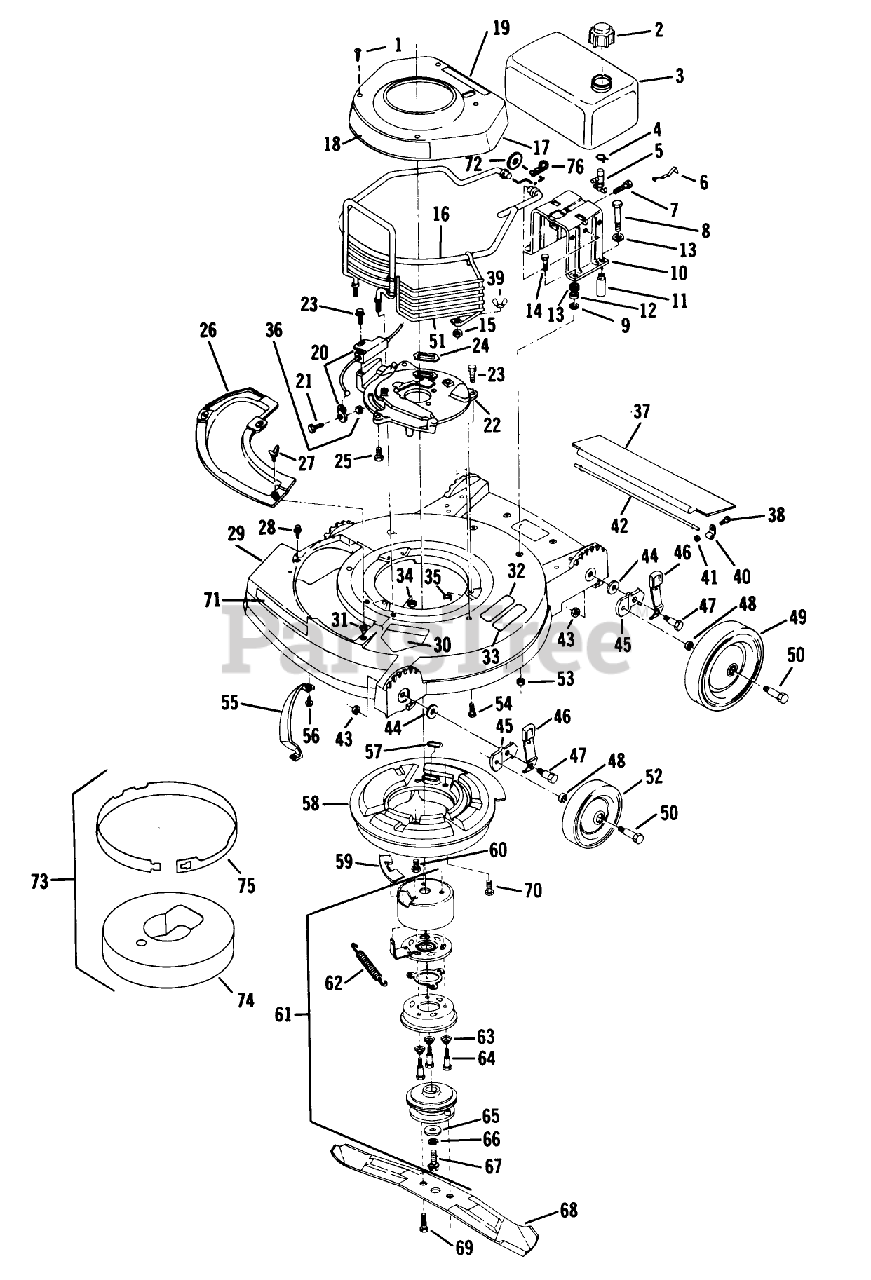

Housing And Shroud Group Model: 6262 (standard Housing) Parts Diagram

  • Title

1

Lawn-Boy 611395

SCREW - SELF TAPPING
(Superseded to 611543)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 6

0

2

Lawn-Boy 682755

FUEL CAP & INSERT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$21.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 609829

See Supercession: 145476
(Superseded to 145476)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 312387

CLAMP - HOSE S

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 8

0

5

Lawn-Boy 677052

VALVE&SCREEN SM

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 609830

SPRING

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 6

0

7

Lawn-Boy 602192

SCREW S

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 609763

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 602945

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 611260

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$108.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 609762

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 604995

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 609923

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 606144

BOLT PIONEER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 682691

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 611513

SHROUD S

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$271.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 610520

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 611292

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 682751

See Supercession: 682997
(Superseded to 682997)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$357.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 611318

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 611373

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 611774

SCREW-HH

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 5

0

25

Lawn-Boy 607601

SCREW V

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$30.99

$

In Stock, only 1 left!

0

27

Lawn-Boy 606733

WING SCREW LAWRE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$8.99

$

In Stock, Qty 6

0

28

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 16

0

29

Lawn-Boy 682754

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 6

0

31

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 14

0

32

Lawn-Boy 609993

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 609961

PAD FOOT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

37

Lawn-Boy 611016

T/SHIELD GEAUGA

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$95.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 611235

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 608161

CLAMP ROD KMC

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

42

Lawn-Boy 608174

ROD 21" ADVANCE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 607733

Nut

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Currently unavailable

44

Lawn-Boy 608834

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

45

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

46

Lawn-Boy 681229

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 610646

BOLT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

48

Lawn-Boy 603620

WASHER WROUGHT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

49

Lawn-Boy 681980

WHL & TIRE AY

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$68.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 603567

BOLT-SHOULDER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$13.99

$

In Stock, only 2 left!

0

51

Lawn-Boy 611241

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 681979

WHEEL & TIRE ASSY

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

54

Lawn-Boy 306409

Screw

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Currently unavailable

55

Lawn-Boy 608175

BAR-TOE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$75.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

57

Lawn-Boy 611397

SEAL

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 682798

DISCONTINUED
(Superseded to 684089)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 611507

DISCONTINUED
(Superseded to 683279)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 611507

DISCONTINUED
(Superseded to 683279)

Note: Item 59 Not Used With Items 74 and 75

$

$

Not available

60

Lawn-Boy 609471

SCREW

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

61

Lawn-Boy 683098

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 611415

SPRING

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$58.99

$

Usually ships in 3-6 days

0

63

Lawn-Boy 611418

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

64

Lawn-Boy 611399

SCREW,SHOULDER SM

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

65

Lawn-Boy 611412

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$30.99

$

Usually ships in 3-6 days

0

66

Lawn-Boy 611413

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

67

Lawn-Boy 611417

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

68

Lawn-Boy 682917

See Supercession: 612540-03
(Superseded to 612540-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$38.99

$

Usually ships in 3-6 days

0

69

Lawn-Boy 611398

SCREW SEMS

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

70

Lawn-Boy 611394

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

71

Lawn-Boy 611581

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

72

Lawn-Boy 606116

WASHER SPRING LAR

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

73

Lawn-Boy 683279

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

74

Lawn-Boy 611969

DISCONTINUED

Note: Item 59 Not Used With Items 74 and 75

$

$

Not available

74

Lawn-Boy 611969

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

75

Lawn-Boy 611970

DISCONTINUED

Note: Item 59 Not Used With Items 74 and 75

$

$

Not available

75

Lawn-Boy 611970

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

76

Lawn-Boy 605803

HAIR PIN

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available
