6301 - Lawn-Boy Walk-Behind Mower (SN: B00000001 - B99999999) (1983) Deck And Shroud Group Model: 8402 (light Housing) Parts Diagram

Walk-Behind Mower

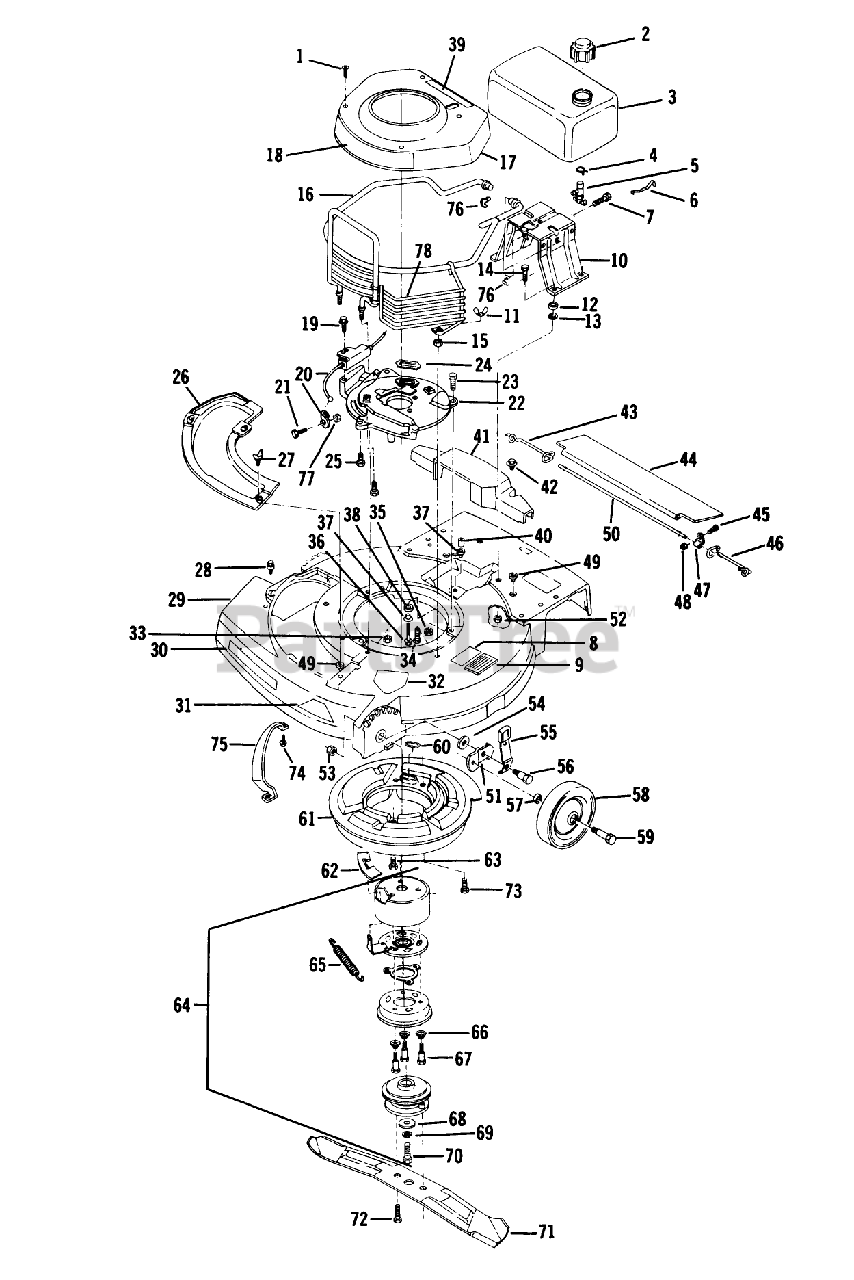

Deck And Shroud Group Model: 8402 (light Housing) Parts Diagram

  • Title
1

Lawn-Boy 611395

SCREW - SELF TAPPING
(Superseded to 611543)

$4.49

$

In Stock, Qty 6

0

2

Lawn-Boy 682755

FUEL CAP & INSERT

$25.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 609829

See Supercession: 145476
(Superseded to 145476)

$

$

Not available

4

Lawn-Boy 312387

CLAMP - HOSE S

$1.49

$

In Stock, Qty 8

0

5

Lawn-Boy 677052

VALVE&SCREEN SM

$23.99

$

In Stock, only 2 left!

0

6

$5.49

$

In Stock, Qty 6

0

7

Lawn-Boy 602192

SCREW S

$

$

Not available

8

Lawn-Boy 145252

DISCONTINUED

$

$

Not available

9

Lawn-Boy 609961

PAD FOOT

$

$

Not available

10

Lawn-Boy 610433

See Supercession: 612686
(Superseded to 612686)

$

$

Not available

11

Lawn-Boy 611235

DISCONTINUED

$

$

Not available

12

Lawn-Boy 604995

DISCONTINUED

$

$

Not available

13

$

$

Not available

14

Lawn-Boy 606144

BOLT PIONEER

$

$

Not available

15

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 682691

DISCONTINUED

$

$

Not available

17

Lawn-Boy 611513

SHROUD S

$316.99

$

Usually ships in 3-6 days

0

18

$

$

Currently unavailable

19

$

$

Not available

20

Lawn-Boy 682751

See Supercession: 682997
(Superseded to 682997)

$357.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 611318

DISCONTINUED

$

$

Not available

22

Lawn-Boy 611373

DISCONTINUED

$

$

Not available

23

$

$

Not available

24

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

$1.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 607601

SCREW V

$4.49

$

In Stock, only 2 left!

0

26

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

$36.99

$

In Stock, only 3 left!

0

27

Lawn-Boy 606733

WING SCREW LAWRE

$9.99

$

In Stock, Qty 6

0

28

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

$4.49

$

In Stock, Qty 12

0

29

Lawn-Boy 611187

Housing-21" Push

$

$

Currently unavailable

30

Lawn-Boy 611581

DISCONTINUED

$

$

Not available

31

Lawn-Boy 609803

DISCONTINUED

$

$

Not available

32

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

$6.99

$

In Stock, Qty 6

0

33

Lawn-Boy 608311

NUT-LOCK F

$3.49

$

In Stock, only 3 left!

0

34

$

$

Currently unavailable

35

Lawn-Boy 608311

NUT-LOCK F

$3.49

$

In Stock, only 3 left!

0

36

Lawn-Boy 609587

DISCONTINUED

$

$

Not available

37

Lawn-Boy 607605

SPACER ECK PRES

$

$

Not available

38

Lawn-Boy 307417

GROMMET

$6.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 611292

DISCONTINUED

$

$

Not available

40

$5.49

$

Usually ships in 3-6 days

0

41

$

$

Not available

42

Lawn-Boy 606452

SCREW SEMS TRM HEX HD

$

$

Not available

43

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

$

$

Not available

44

$36.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

$

$

Not available

46

Lawn-Boy 608498

SPRIG T/SHLD ASOC

$

$

Not available

47

Lawn-Boy 608161

CLAMP ROD KMC

$11.99

$

Usually ships in 3-6 days

0

48

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

49

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 20+

0

50

Lawn-Boy 608174

ROD 21" ADVANCE

$

$

Not available

51

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

$27.99

$

In Stock, only 2 left!

0

52

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

53

Lawn-Boy 603773

LOCKNUT

$2.99

$

In Stock, Qty 20+

0

54

$14.99

$

In Stock, only 2 left!

0

55

Lawn-Boy 681229

DISCONTINUED

$

$

Not available

56

Lawn-Boy 608835

See Supercession: 610646
(Superseded to 610646)

$7.49

$

Usually ships in 3-6 days

0

57

Lawn-Boy 603620

WASHER WROUGHT

$5.99

$

In Stock, Qty 20+

0

58

Lawn-Boy 681979

WHEEL & TIRE ASSY

$

$

Not available

59

Lawn-Boy 603567

BOLT-SHOULDER

$15.99

$

In Stock, only 2 left!

0

60

$

$

Not available

61

Lawn-Boy 682798

DISCONTINUED
(Superseded to 684089)

$

$

Not available

62

Lawn-Boy 611507

DISCONTINUED
(Superseded to 683279)

$

$

Not available

63

$4.99

$

In Stock, Qty 14

0

64

Lawn-Boy 682820

DISCONTINUED
(Superseded to 683098)

$

$

Not available

65

$67.99

$

Usually ships in 3-6 days

0

66

Lawn-Boy 611418

DISCONTINUED

$

$

Not available

67

Lawn-Boy 611399

SCREW,SHOULDER SM

$

$

Not available

68

$34.99

$

Usually ships in 3-6 days

0

69

Lawn-Boy 611413

DISCONTINUED

$

$

Not available

70

Lawn-Boy 611417

DISCONTINUED

$

$

Not available

71

Lawn-Boy 682917

See Supercession: 612540-03
(Superseded to 612540-03)

$43.99

$

Usually ships in 3-6 days

0

72

Lawn-Boy 611398

SCREW SEMS

$16.99

$

Usually ships in 3-6 days

0

73

Lawn-Boy 611394

DISCONTINUED

$

$

Not available

74

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

$3.49

$

In Stock, only 3 left!

0

75

Lawn-Boy 608175

BAR-TOE

$77.99

$

Usually ships in 3-6 days

0

76

Lawn-Boy 319808

DISCONTINUED

$

$

Not available

77

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

78

Lawn-Boy 611241

DISCONTINUED

$

$

Not available
