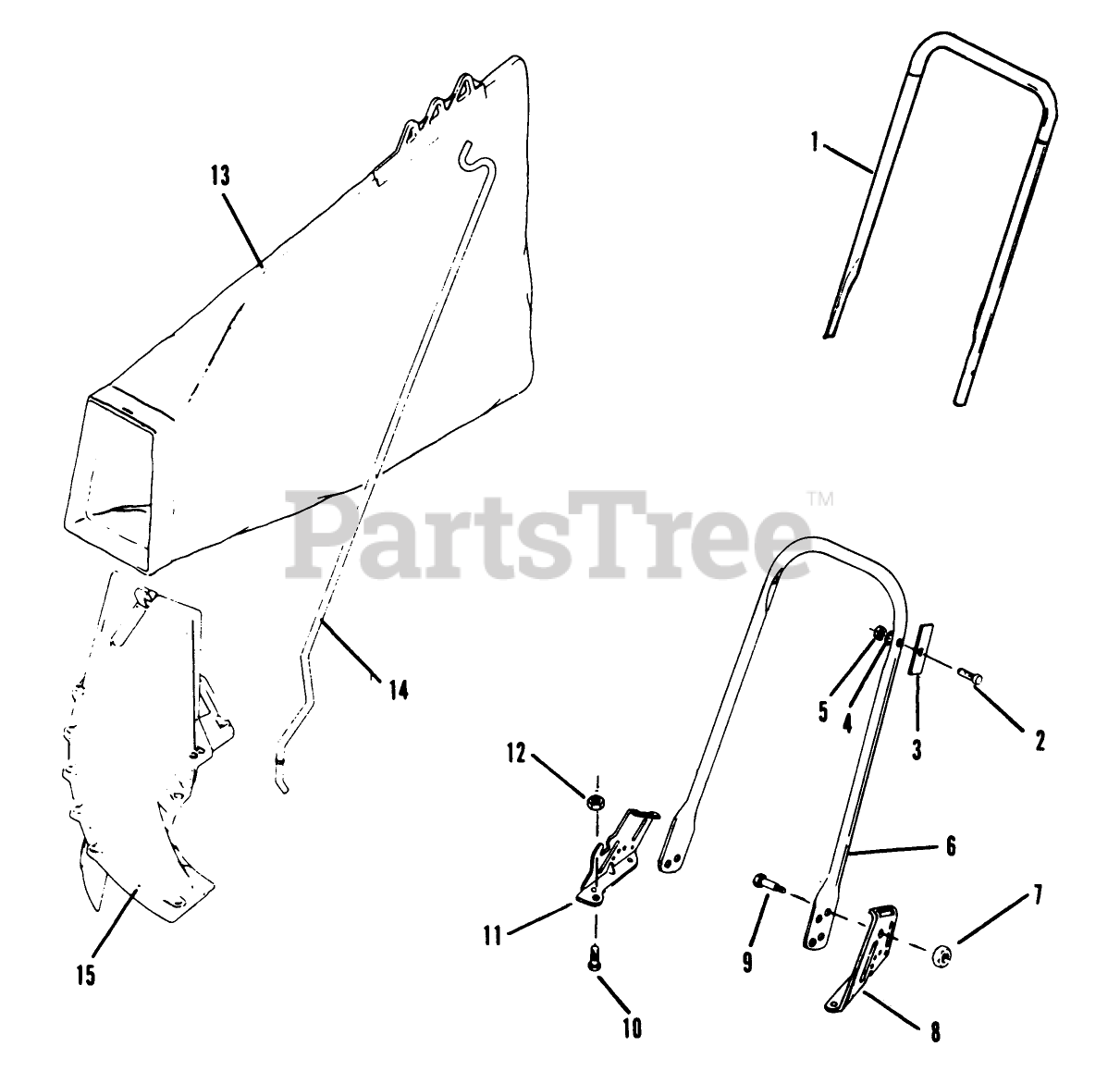

6300 - Lawn-Boy Walk-Behind Mower (SN: A00000001 - A99999999) (1982) Handle And Grasscatcher Group Models: 6259, 6291, 6300, 6350 Parts Diagram

Walk-Behind Mower

Handle And Grasscatcher Group Models: 6259, 6291, 6300, 6350 Parts Diagram

  • Title
1

Lawn-Boy 682098

DISCONTINUED
(Superseded to 608094)

$

$

Not available

2

Lawn-Boy 610359

DISCONTINUED

$

$

Not available

3

Lawn-Boy 610024

DISCONTINUED

$

$

Not available

4

Lawn-Boy 609739

WASHER-CURVED

$3.49

$

In Stock, Qty 8

0

5

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 610351

DISCONTINUED

$

$

Not available

7

Lawn-Boy 610358

NUT-JAM, LOCKING

$2.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 610353

See Supercession: 613587
(Superseded to 613587)

$

$

Not available

$

$

Not available

10

Lawn-Boy 610356

DISCONTINUED

$

$

Not available

11

Lawn-Boy 610350

See Supercession: 683599
(Superseded to 683599)

$

$

Not available

12

Lawn-Boy 608311

NUT-LOCK F

$3.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 679966

89802 LB WHOLE GOODS

Note: Model 6291, 6350 Only

$

$

Not available

14

Lawn-Boy 607561

ROD GRASSBAG

Note: Model 6291, 6350 Only

$

$

Not available

15

Lawn-Boy 679487

See Supercession: 99-6411
(Superseded to 99-6411)

Note: Model 6291, 6350 Only

$

$

Not available
