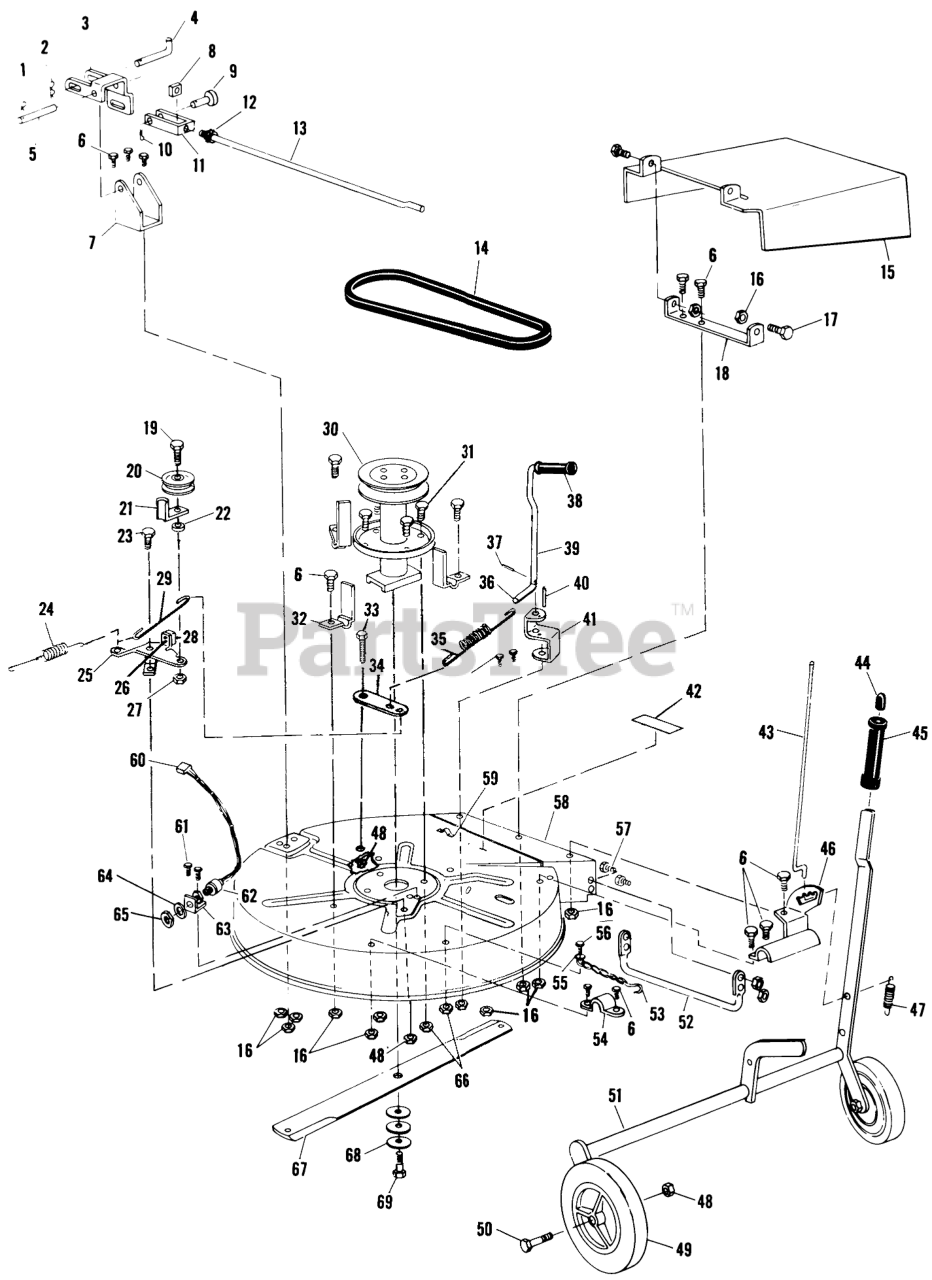

63-08BP01 (A-70) - Toro 30" Rear-Engine Riding Mower (1976) A-70 RIDING MOWER PARTS LIST Parts Diagram

30" Rear-Engine Riding Mower

A-70 RIDING MOWER PARTS LIST Parts Diagram

  • Title

1

Toro 932007-4

Pin-cotter 3/32 X 1/2

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

2

Toro 225069

Hairpin Cotter

$

$

Not available

3

Toro 225162

Lifting Yoke

$

$

Not available

4

Toro 225137

Washer

$

$

Not available

5

Toro 225154

Pin, Level Control

$

$

Not available

6

Toro 9080164

Screw, Hex Hd, 5/16-18 x 5/8 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

7

Toro 225168

Pivot Bracket

$

$

Currently unavailable

8

Toro 915182-4

Nut

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

9

Toro 932121-4

Pin

$

$

Currently unavailable

10

Toro 933504-4

Hairpin

$

$

Currently unavailable

11

Toro 225060

Clevis

$

$

Not available

12

Toro 9159684

Nut, Hex, 1/4-20 Thd

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

13

Toro 225171

Rod, Level Control

$

$

Not available

14

Toro 225385

V-Belt 4L-52.5

$

$

Not available

15

Toro 225515

Chute Deflector

$

$

Not available

16

Toro 915112-6

Nut-Nylok

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

17

Toro 225514

Shoulder Bolt

$

$

Not available

18

Toro 225098

Bracket, Chute Deflector Pivot

$

$

Not available

19

Toro 908037-4

Bolt Hex 3/8-16

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

20

Toro 225388

Idler Pulley

$

$

Not available

21

Toro 225076

Arm, Idler

$

$

Not available

22

Toro 225228

Spacer

$

$

Not available

23

Toro 225037

Shoulder Bolt

$

$

Not available

24

Toro 225051

Spring, Brake

$

$

Not available

25

Toro 225481

Blade Idler Arm Assembly Includes Items 26 & 28)

$

$

Not available

26

Toro 225107

Rivet

$

$

Not available

27

Toro 915236-6

Nut-Jam 3/8-16

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

28

Toro 225102

Pad Brake

$

$

Not available

29

Toro 225373

Rod, Engagement

$

$

Not available

30

Toro 225384

Quill Assembly

$

$

Not available

31

Toro 9264964

SCREW-HWH, THREAD CUT

Note: Standard Hardware Items-May Be Purchased Locally.

$1.49

$

Usually ships in 3-6 days

0

32

Toro 225372

Deck Belt Guide

$

$

Currently unavailable

33

Toro 225038

Idler Stud

$

$

Not available

34

Toro 225371

Bell Crank Assembly

$

$

Not available

35

Toro 225378

Spring, Blade Idler & Rod Assy

$

$

Not available

36

Toro 225061

Lever, Lower Blade Throwout

$

$

Not available

37

Toro 225482

Roll Pin, 1/8 x 9/16 In.

$

$

Not available

38

Toro 225068

Hand Grip
(Superseded to 9038)

$6.99

$

In Stock, only 1 left!

0

39

Toro 225170

Clip-Wire

$

$

Not available

40

Toro 933196

SPIROL PIN

$

$

Not available

41

Toro 225161

Bracket, Blade Throwout

$

$

Currently unavailable

42

Toro 225465

Decal, Mower Deck

$

$

Currently unavailable

43

Toro 225100

Control Rod, Quadrant

$

$

Not available

44

Toro 225104

Thumb Button

$

$

Not available

45

Toro 225009

Hand Grip

$

$

Not available

46

Toro 225164

Quadrant, Height Adjust

$

$

Currently unavailable

47

Toro 225101

Spring, Height Control Rod

$

$

Not available

48

Toro 915113-6

Nut

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

49

Toro 225105

Wheel & Tire Assembly

$

$

Not available

50

Toro 225029

Shoulder Bolt

$

$

Not available

51

Toro 225377

Support Shaft Assembly

$

$

Not available

52

Toro 225045

Chute Guard

$

$

Currently unavailable

53

Toro 225184

Safety Chain Assembly

$

$

Not available

54

Toro 225152

"U" Bracket

$

$

Not available

55

Toro 920206-4

Flatwasher, 1/4 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

56

Toro 908003-4

Bolt 1/4-20 X 3/4

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

57

Toro 908002-4

Bolt-1/4-20 x 5/8

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

58

Toro 225381

Mower Deck

$

$

Not available

59

Toro 225103

Press Clip

$

$

Not available

60

Toro 225219

Wire Assembly, Deck

$

$

Not available

61

Toro 908001-4

Bolt, 1/4-x 1/2

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

62

Toro 225097

Safety Switch

$

$

Not available

63

Toro 225153

Bracket, Safety Switch

$

$

Currently unavailable

64

Toro 225399

Lockwasher (Switch Part)

$

$

Currently unavailable

65

Toro 225398

Nut (Switch Part)

$

$

Currently unavailable

66

Toro 915111-6

Nut-Nylok

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

67

Toro 225138

Blade, 30 In.

$

$

Not available

68

Toro 225003

Spring Washer

$

$

Not available

69

Toro 908183-6

Bolt-Nylok 3/8-24 x 1

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

96

Toro 225336

Service Rod (Not Illust.)

$

$

Currently unavailable
