63-08BP01 (A-70) - Toro 30" Rear-Engine Riding Mower (1976) A-70 RIDING MOWER PARTS LIST Parts Diagram

30" Rear-Engine Riding Mower

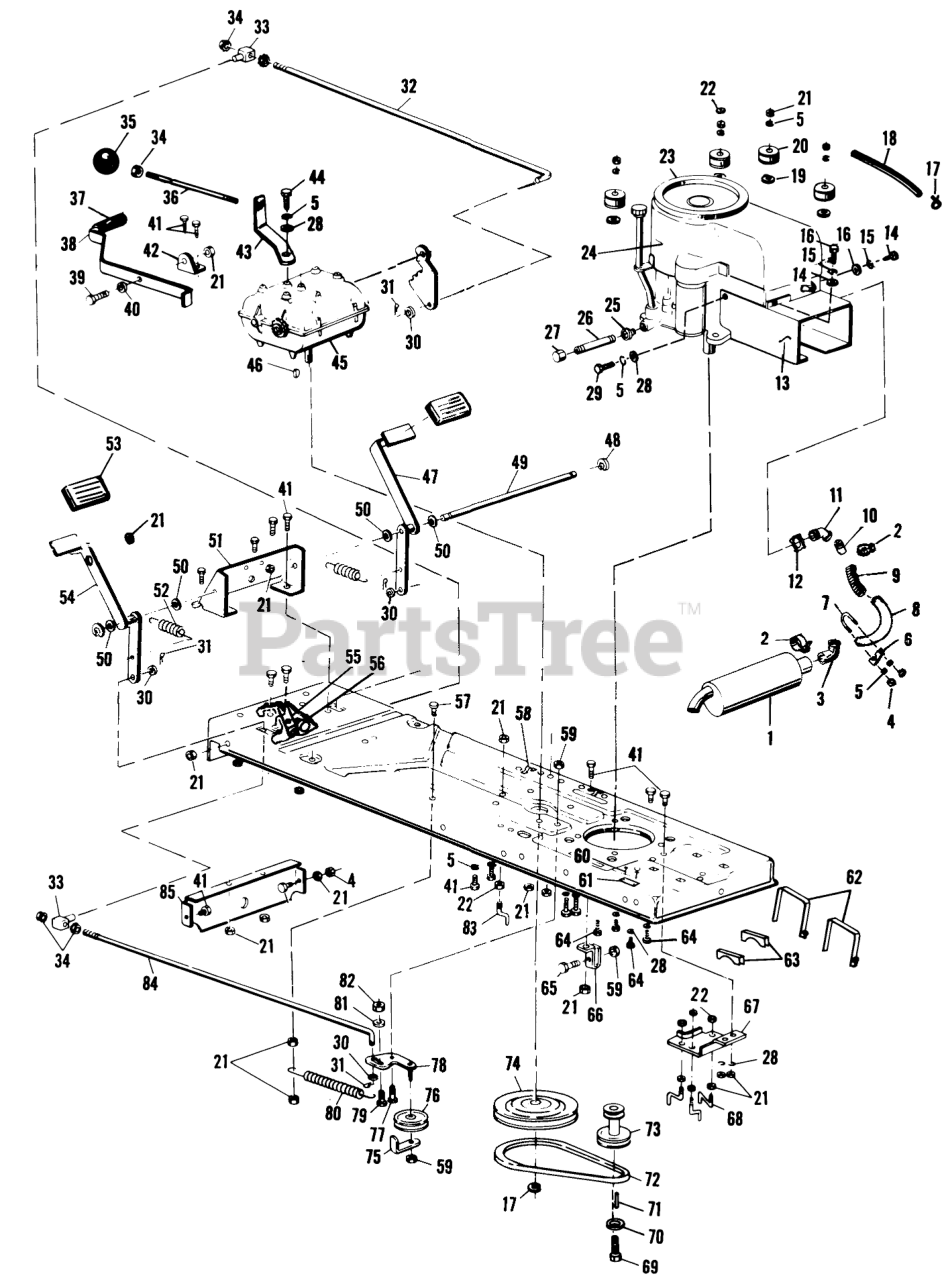

A-70 RIDING MOWER PARTS LIST Parts Diagram

  • Title

1

Toro 225159

Muffler

$

$

Not available

2

Toro 225236

Clamp, Muffler

$

$

Currently unavailable

3

Toro 225200

Elbow, Muffler

$

$

Currently unavailable

4

Toro 9151124

Nut
(Superseded to 3296-29)

Note: Standard Hardware Items-May Be Purchased Locally.

$2.49

$

In Stock, Qty 20+

0

5

Toro 92008-4

Lockwasher, 5/16 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

6

Toro 225201

Saddle, Muffler Clamp

$

$

Not available

7

Toro 225202

U-Bolt, Muffler Clamp

$

$

Not available

8

Toro 225386

Pipe, U-Bend, Exhaust

$

$

Currently unavailable

9

Toro 225179

Exhaust Tube, Flexible

$

$

Not available

10

Toro 225204

Nipple, 3/4 In.

$

$

Not available

11

Toro 225203

Street Elbow, 45 Degrees

$

$

Not available

12

Toro 225032

Lock Ring, Exhaust

$

$

Not available

13

Toro 225175

Housing-Blower (Inner)

$

$

Currently unavailable

14

Toro 908002-4

Bolt-1/4-20 x 5/8

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

15

Toro 920081-4

Lockwasher

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

16

Toro 920037-4

Washer

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

17

Toro 225025

Snap Ring

$

$

Not available

18

Toro 225047

Tube, Drain

$

$

Not available

19

Toro 225003

Spring Washer

$

$

Not available

20

Toro 225244

Spacer, Engine

$

$

Currently unavailable

21

Toro 915112-6

Nut-Nylok

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

22

Toro 915972-4

Nut 5/16-18 Keps

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

23

Toro 225189

Gasket, Air Intake

$

$

Not available

24

Toro 225013

Engine

$

$

Currently unavailable

25

Toro 225225

Reducer

$

$

Not available

26

Toro 225224

Extension, Oil Drain

$

$

Not available

27

Toro 225226

Plug, Pipe

$

$

Not available

28

Toro 920084

LOCKWASHER

Note: Standard Hardware Items-May Be Purchased Locally.

$0.99

$

Usually ships in 3-6 days

0

29

Toro 9080164

Screw, Hex Hd, 5/16-18 x 5/8 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

30

Toro 920009-4

Washer

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

31

Toro 934761-4

Cotter Key

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

32

Toro 225133

Rod, Brake

$

$

Not available

33

Toro 225041

Pivot Block

$

$

Not available

34

Toro 915974-4

Nut, Jam, 3/8-24 Thd

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

35

Toro 225188

Knob

$

$

Not available

36

Toro 225310

Rod, Shift Handle

$

$

Not available

37

Toro 225004

Hand Grip

$

$

Currently unavailable

38

Toro 225314

Parking Brake Arm

$

$

Currently unavailable

39

Toro 225034

Shoulder Bolt

$

$

Not available

40

Toro 225042

Spring Washer

$

$

Currently unavailable

41

Toro 908017-4

Bolt 5/16-18 x

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

42

Toro 225130

Bracket, Parking Brake

$

$

Currently unavailable

43

Toro 225334

Shift Handle

$

$

Not available

44

Toro 9081664

Screw, Hex Hd, 5/16-24 x 3/4 In.

$

$

Currently unavailable

45

Toro 225335

Transmission, 4 speed (See Seperate List pages 4 & 5)

$

$

Currently unavailable

46

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, only 4 left!

0

47

Toro 225127

Pedal Assembly, R.H.

$

$

Currently unavailable

48

Toro 225022

"E" Ring

$

$

Not available

49

Toro 225126

Pedal Shaft

$

$

Not available

50

Toro 225005

Washer

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Not available

51

Toro 225116

Bracket, Pedal Support

$

$

Currently unavailable

52

Toro 225151

Spring

$

$

Not available

53

Toro 225023

Pedal Pad

$

$

Not available

54

Toro 225128

Pedal Assembly, L.H.

$

$

Currently unavailable

55

Toro 225306

Bracket, Pedal Switch

$

$

Currently unavailable

56

Toro 225097

Safety Switch

$

$

Not available

57

Toro 908020-4

Bolt 5/16-18 x 11/4

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

58

Toro 225103

Press Clip

$

$

Not available

59

Toro 915113-6

Nut

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

60

Toro 225479

Drive Screw, No. 6 x 5/16 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Not available

61

Toro 225436

Plate, Model Number

$

$

Currently unavailable

62

Toro 225301

Strap, Muffler

$

$

Not available

63

Toro 225145

Bracket, Muffler Spacer

$

$

Not available

64

Toro 908023-4

Bolt-Hex 3/8-16 x 2

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

65

Toro 225026

Shoulder Bolt

$

$

Currently unavailable

66

Toro 225163

Bracket, Mower Deck Guide

$

$

Not available

67

Toro 225125

Spacer, Pivot Bolt

$

$

Not available

68

Toro 225205

Belt Guide, Engine

$

$

Not available

69

Toro 908195-4

Screw, Hex Hd, 7/16-20 x 1 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

70

Toro 920084-4

Lockwasher 3/8

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

71

Toro 225036

Key, Square, 1/4 x 1/4 x 2 1/2 In.

$

$

Not available

72

Toro 225187

V-Belt, 4L-38.8

$

$

Not available

73

Toro 225379

Engine Pulley

$

$

Not available

74

Toro 225120

Transmission Pulley

$

$

Not available

75

Toro 225076

Arm, Idler

$

$

Not available

76

Toro 225050

Idler Pulley

$

$

Not available

77

Toro 225029

Shoulder Bolt

$

$

Not available

78

Toro 225139

Belt Idler Assembly

$

$

Not available

79

Toro 908008-4

Bolt Hex 1/4-20 x 1 3/4

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

80

Toro 225084

Clutch Spring

$

$

Not available

81

Toro 915968-4

Nut 1/4-20 Keps

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

82

Toro 915111-6

Nut-Nylok

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

83

Toro 225250

Belt Guide, Transmission

$

$

Not available

84

Toro 225169

Rod, Clutch

$

$

Not available

85

Toro 225115

Plate, Front Axle Support

$

$

Currently unavailable

96

Toro 225336

Service Rod (Not Illust.)

$

$

Currently unavailable
