63-05BF01 (A-60) - Toro 26" Rear-Engine Riding Mower (1976) A-60 RIDING MOWER PARTS LISTS Parts Diagram

26" Rear-Engine Riding Mower

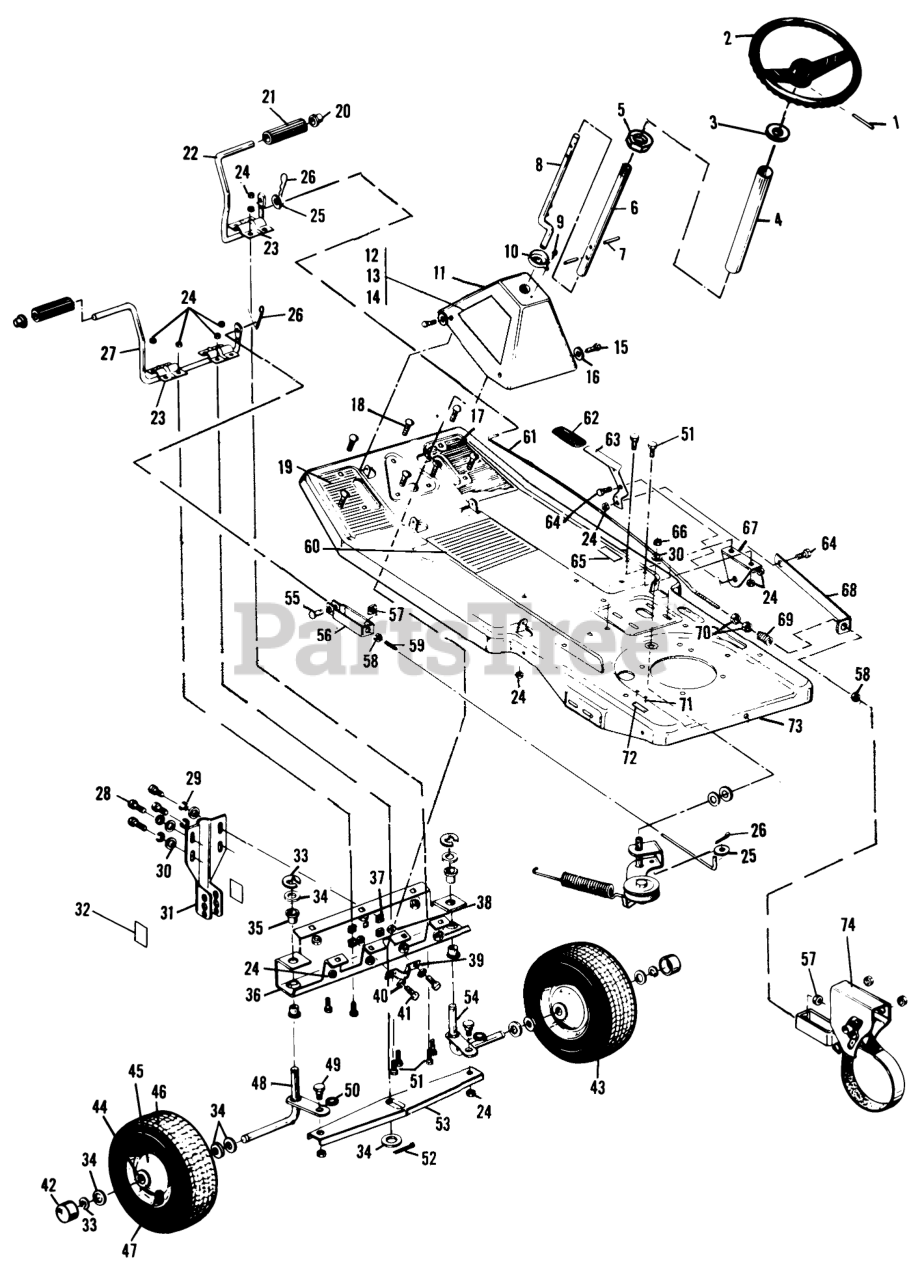

A-60 RIDING MOWER PARTS LISTS Parts Diagram

  • Title

1

Toro 933222

Roll Pin

$

$

Currently unavailable

2

Toro 225146

Steering Wheel

$

$

Not available

3

Toro 225433

Washer, Plastic

$

$

Not available

4

Toro 225408

Housing, Steering Tube

$

$

Not available

5

Toro 225434

Nut, Speed

$

$

Not available

6

Toro 225407

Tube, Steering

$

$

Not available

7

Toro 225487

Pin, Spiral

$

$

Not available

8

Toro 225266

Shaft, Steering

$

$

Not available

9

Toro 926565-4

Screw, S.M. Type, AB No. 10-16 x 1/2 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

10

Toro 225271

Bushing, Steering Tube

$

$

Not available

11

Toro 225351

Quadrant

$

$

Currently unavailable

12

Toro 225466

Decal, Cover Plate

$

$

Not available

13

Toro 225447

Decal, Console, L.H.

$

$

Not available

14

Toro 225448

Decal, Console, Front

$

$

Currently unavailable

15

Toro 926487-4

Screw, Taptite, 1/4-20 x 5/8 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

16

Toro 920081-4

Lockwasher

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

17

Toro 225410

Pad, Footrest, Right

$

$

Not available

18

Toro 900036-4

Bolt 5/16-18 x 5/8 Carriage

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

19

Toro 225411

Pad, Footrest, Left

$

$

Not available

20

Toro 225324

Speed Nut, Push

$

$

Not available

21

Toro 225325

Pad, PedaI

$

$

Not available

22

Toro 225268

Arm, Brake Pedal

$

$

Not available

23

Toro 225263

Bracket, Pedal Rod

$

$

Currently unavailable

24

Toro 915112-6

Nut-Nylok

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

25

Toro 920210-4

Washer

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

26

Toro 934761-4

Cotter Key

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

27

Toro 225269

Arm, Clutch Pedal

$

$

Not available

28

Toro 908034-4

Bolt 3/8-16 x 1

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

29

Toro 920083-4

Lockwasher

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

30

Toro 920009-4

Washer

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

31

Toro 225406

Bracket, Deck Hanger

$

$

Currently unavailable

32

Toro 225467

Decal, Deck Hanger

$

$

Currently unavailable

33

Toro 225021

"E" Ring

$

$

Not available

34

Toro 225008

Flatwasher, 5/8 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Not available

35

Toro 225262

Bushing, Spindle

$

$

Not available

36

Toro 225289

Bracket, Front Axle

$

$

Currently unavailable

37

Toro 225321

Nut, Speed Grip, 3/8-16 Thd

$

$

Currently unavailable

38

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

39

Toro 225152

"U" Bracket

$

$

Not available

40

Toro 920082-4

Lockwasher

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

41

Toro 908032-4

Bolt 3/8-16 x 3/4

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

42

Toro 225087

Hub Cap

$

$

Not available

43

Toro 225422

Wheel & Tire Assy, Front, Complete Includes Items 43, 44, 45 & 46

$

$

Not available

44

Toro 225366

Bushing

$

$

Not available

45

Toro 225426

Wheel with Bearings

$

$

Not available

46

Toro 225367

Tire, 4.10-3.50 x 4

$

$

Not available

47

Toro 225031

Valve Stem

$

$

Not available

48

Toro 225279

Spindle, Steering Left

$

$

Not available

49

Toro 225028

Shoulder Bolt

$

$

Not available

50

Toro 225007

Washer, Spring

$

$

Not available

51

Toro 908016-4

Bolt Hex 5/16-18

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

52

Toro 934826-4

Cotter Pin, 3/16 x 1 1/4 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

53

Toro 225283

Link, Steering

$

$

Not available

54

Toro 225278

Spindle, Steering Right

$

$

Not available

55

Toro 932121-4

Pin

$

$

Currently unavailable

56

Toro 225060

Clevis

$

$

Not available

57

Toro 915182-4

Nut

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

58

Toro 915968-4

Nut 1/4-20 Keps

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

59

Toro 225281

Rod, Clutch

$

$

Not available

60

Toro 225409

Pad, Footrest Center

$

$

Currently unavailable

61

Toro 225265

Rod, Brake

$

$

Not available

62

Toro 225332

Grip, Parking Brake

$

$

Not available

63

Toro 225329

Lever, Parking Brake

$

$

Not available

64

Toro 225020

Shoulder Bolt

$

$

Not available

65

Toro 225452

Decal, Parking Brake

$

$

Currently unavailable

66

Toro 915113-6

Nut

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

67

Toro 225327

Bracket, Parking Brake

$

$

Currently unavailable

68

Toro 225328

Strap, Parking Brake

$

$

Not available

69

Toro 225035

Spring

$

$

Not available

70

Toro 915111-4

Nut 1/4-20

$

$

Currently unavailable

71

Toro 225479

Drive Screw, No. 6 x 5/16 In.

$

$

Not available

72

Toro 225435

Plate, Model Number

$

$

Currently unavailable

73

Toro 225387

Main Frame

$

$

Currently unavailable

74

Toro 225363

Brake, Assembly, Complete

$

$

Not available
