63-05BF01 (A-60) - Toro 26" Rear-Engine Riding Mower (1976) A-60 RIDING MOWER PARTS LIST Parts Diagram

26" Rear-Engine Riding Mower

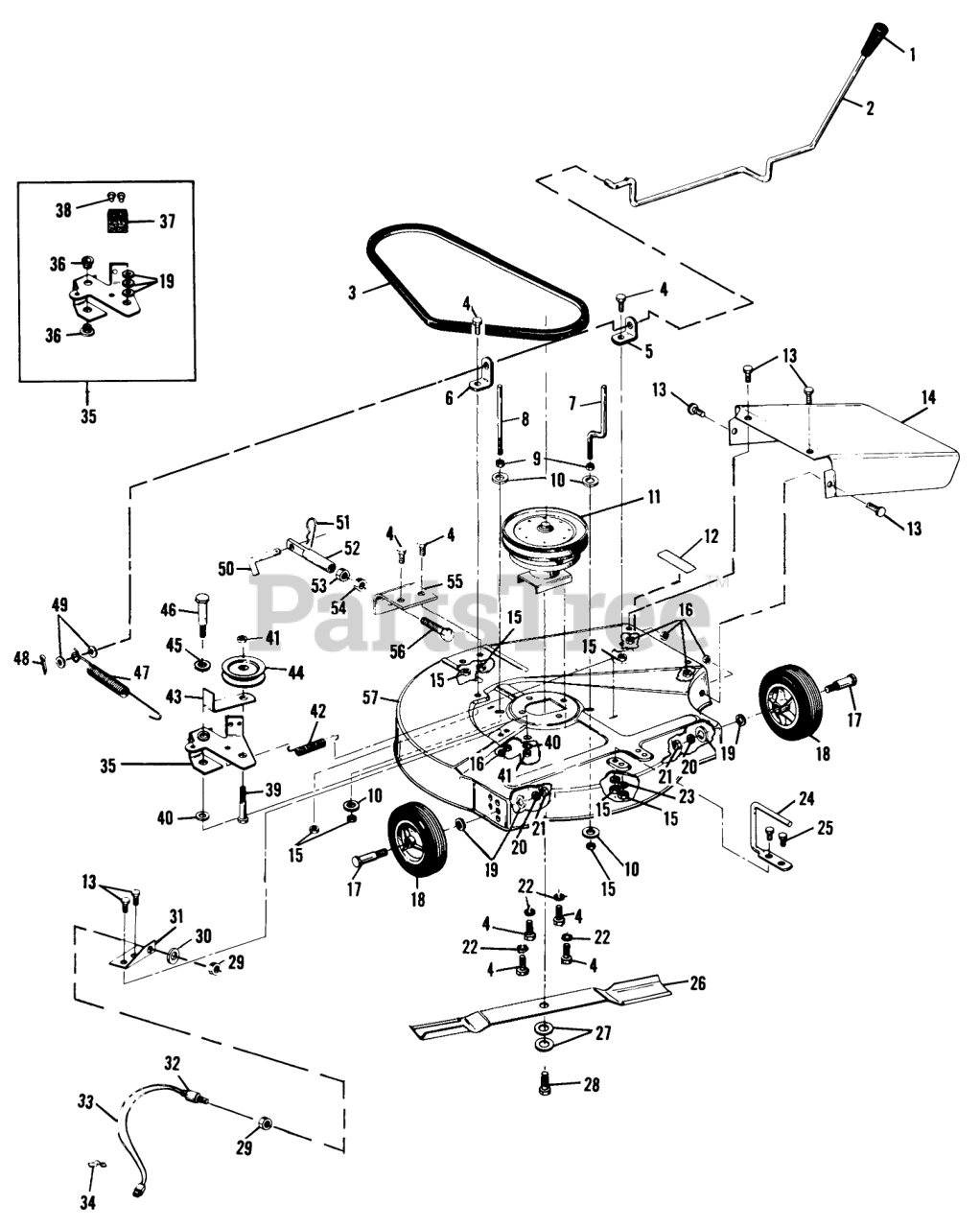

A-60 RIDING MOWER PARTS LIST Parts Diagram

  • Title

1

Toro 225006

Knob

$

$

Not available

2

Toro 225280

Rod, Clutch

$

$

Not available

3

Toro 225360

V-Belt, 4L-63

$

$

Not available

4

Toro 908016-4

Bolt Hex 5/16-18

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

5

Toro 225275

Bracket, Rod

$

$

Currently unavailable

6

Toro 225274

Bracket Assy, Clutch Lever

$

$

Not available

7

Toro 225108

Belt Guide

$

$

Not available

8

Toro 225254

Guide, Belt

$

$

Not available

9

Toro 915972-4

Nut 5/16-18 Keps

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

10

Toro 920210-4

Washer

$

$

Currently unavailable

11

Toro 225251

Quill Assembly

$

$

Not available

12

Toro 225455

Decal, Caution, Blade Engage

$

$

Currently unavailable

13

Toro 908001-4

Bolt, 1/4-x 1/2

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

14

Toro 225249

Chute Deflector

$

$

Not available

15

Toro 915112-6

Nut-Nylok

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

16

Toro 911511-6

Locknut, Hex, 1/4-20 Thd

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

17

Toro 225029

Shoulder Bolt

$

$

Not available

18

Toro 225079

Wheel

$

$

Not available

19

Toro 920009-4

Washer

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

20

Toro 920083-4

Lockwasher

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

21

Toro 915113-4

Nut

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

22

Toro 920082-4

Lockwasher

$

$

Currently unavailable

23

Toro 9200384

Washer
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

24

Toro 225272

Guide, Rear

$

$

Not available

25

Toro 908018-4

Bolt, 5/16-18 X 7/8

$

$

Currently unavailable

26

Toro 225077

Blade, 26 In.

$

$

Not available

27

Toro 225003

Spring Washer

$

$

Not available

28

Toro 908183-6

Bolt-Nylok 3/8-24 x 1

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

29

Toro 225398

Nut (Switch Part)

$

$

Currently unavailable

30

Toro 225399

Lockwasher (Switch Part)

$

$

Currently unavailable

31

Toro 225255

Bracket, Safety Switch

$

$

Currently unavailable

32

Toro 225097

Safety Switch

$

$

Not available

33

Toro 225109

Wire Assy, Deck Switch

$

$

Not available

34

Toro 225103

Press Clip

$

$

Not available

35

Toro 225256

Arm Assembly, Idler

$

$

Not available

36

Toro 225044

Bushing

$

$

Not available

37

Toro 225102

Pad Brake

$

$

Not available

38

Toro 225107

Rivet

$

$

Not available

39

Toro 908038-4

Bolt, 3/8 16 x 2

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

40

Toro 225488

Flatwasher, 3/8 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

41

Toro 915113-6

Nut

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

42

Toro 225051

Spring, Brake

$

$

Not available

43

Toro 225076

Arm, Idler

$

$

Not available

44

Toro 225357

Pulley, Idler

$

$

Not available

45

Toro 920011-4

Washer

$

$

Currently unavailable

46

Toro 225002

Shoulder Bolt

$

$

Not available

47

Toro 225270

Spring, Mower Clutch

$

$

Not available

48

Toro 934761-4

Cotter Key

$

$

Currently unavailable

49

Toro 225048

Washer

$

$

Not available

50

Toro 225062

Pull Pin

$

$

Not available

51

Toro 225069

Hairpin Cotter

$

$

Not available

52

Toro 225253

Hitch, Deck Front

$

$

Not available

53

Toro 915240-6

Locknut, Hex, 5/8-11 Thd

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

54

Toro 225258

Locknut, Jam, Hex, 5/8-11 Thd

$

$

Not available

55

Toro 225252

Plate, Front

$

$

Not available

56

Toro 225259

Bolt, Hex Hd, 5/8-11 x 3 1/2 In.

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Not available

57

Toro 225248

Mower Deck

$

$

Not available
