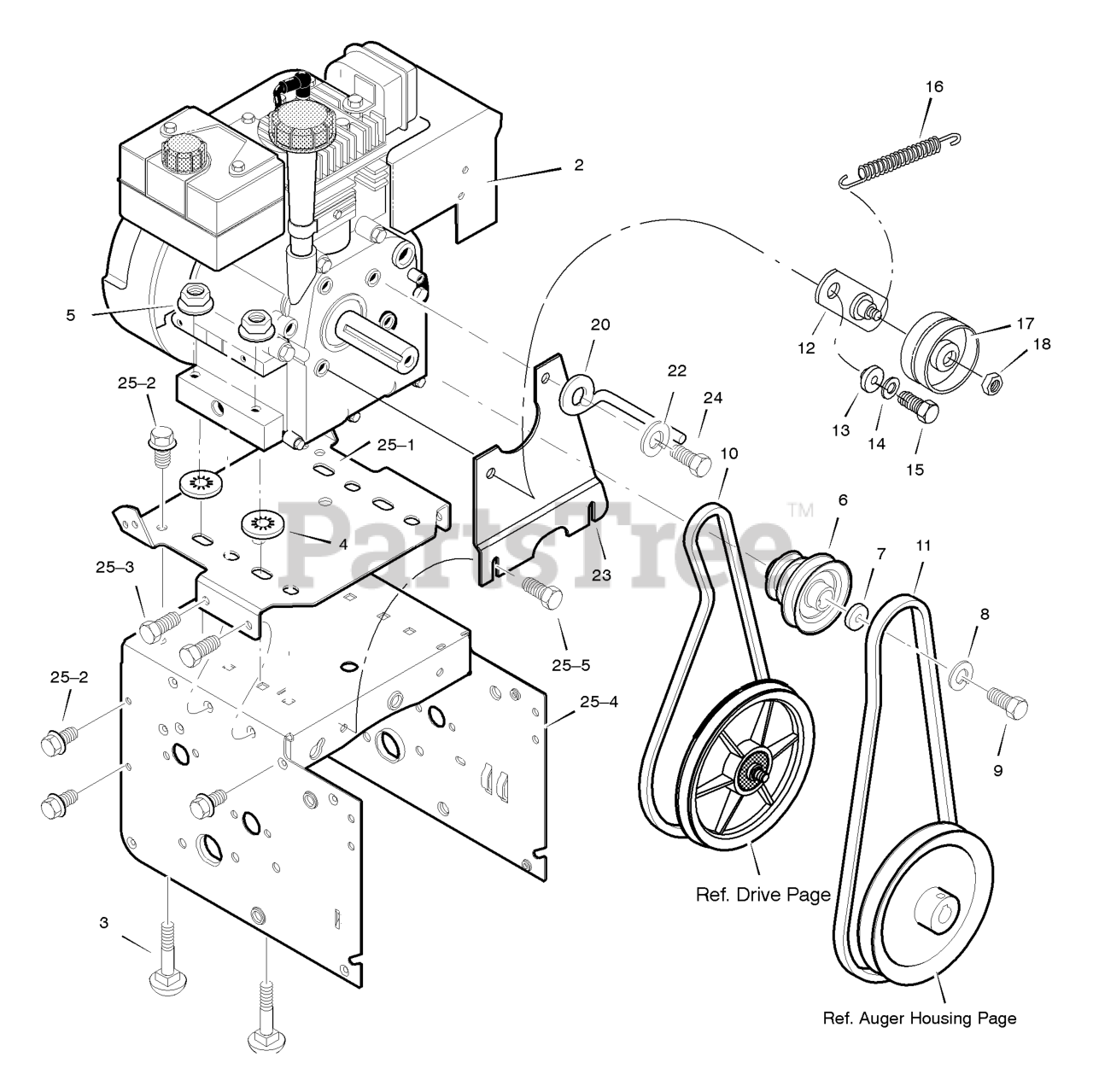

629924x0A - Briggs & Stratton 29" Snow Thrower (2003) Engine Parts Diagram

29" Snow Thrower

Engine Parts Diagram

  • Title
2

ENGINE

$

$

Not available

3

Murray 002X97MA

BOLT, CARRIAGE 5/16-18
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

4

Murray 028X76MA

RETAINER, PUSH

$4.49

$

Usually ships in 2-12 days

0

5

Murray 710026

NUT, HEX 5/16-18

$

$

Not available

6

Murray 1501109MA

PULLEY, ENGINE

$41.99

$

In Stock, only 2 left!

0

7

Murray 710247

WASHER

$8.49

$

Usually ships in 2-12 days

0

8

Murray 71063

WASHER .38ID

$3.99

$

Usually ships in 2-12 days

0

9

Murray 71015

SCREW, 3/8-24 x 1.00

$

$

Not available

10

Murray 579932MA

BELT, DRIVE V 3L
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

11

Murray 585416MA

BELT, AUGER V 4L

$22.99

$

In Stock, Qty 20+

0

12

Murray 1501112 YZ

BRACKET ASSEMBLY, IDLER
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

13

Murray 1501065MA

BUSHING, IDLER BRACKET

$5.49

$

In Stock, only 2 left!

0

14

Murray 71060

WASHER, SPLIT
(Superseded to 1501670MA)

$

$

Not available

15

Murray 910828MA

SCREW 5/16-24 X 1.00
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

16

Murray 165X164MA

SPRING, IDLER TRACTION DRIVE

$7.49

$

In Stock, only 3 left!

0

17

Murray 50793MA

PULLEY, IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 6

0

18

Murray 590

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

20

Murray 1501201MA

GUIDE, BELT
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

22

Murray 71060

WASHER, SPTLK .31X.58X.08
(Superseded to 1501670MA)

$

$

Not available

23

Murray 1501482MA

PLATE, ANTI VIBRATION

$21.99

$

Usually ships in 2-12 days

0

24

Murray 910828MA

SCREW, 5/16-24 x 1.00
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray 1501062E245

PLATE, ENGINE MOUNT

$94.99

$

Usually ships in 2-12 days

0

25-2

Murray 310169MA

SCREW, TAP 1/4-20 X .63
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

25-3

Murray 25X020MA

SCREW, TAP 5/16-18 X .50

$4.99

$

In Stock, Qty 6

0

25-4

Murray 1501049E245

FRAME, MOTOR BOX

$94.99

$

Usually ships in 2-12 days

0

25-5

$4.99

$

In Stock, only 1 left!

0

--

Murray F-0310104L

OWNER'S MANUAL

$

$

Currently unavailable
