629909x64B - Murray 29" Snow Thrower (2003) Handle Assembly Parts Diagram

29" Snow Thrower

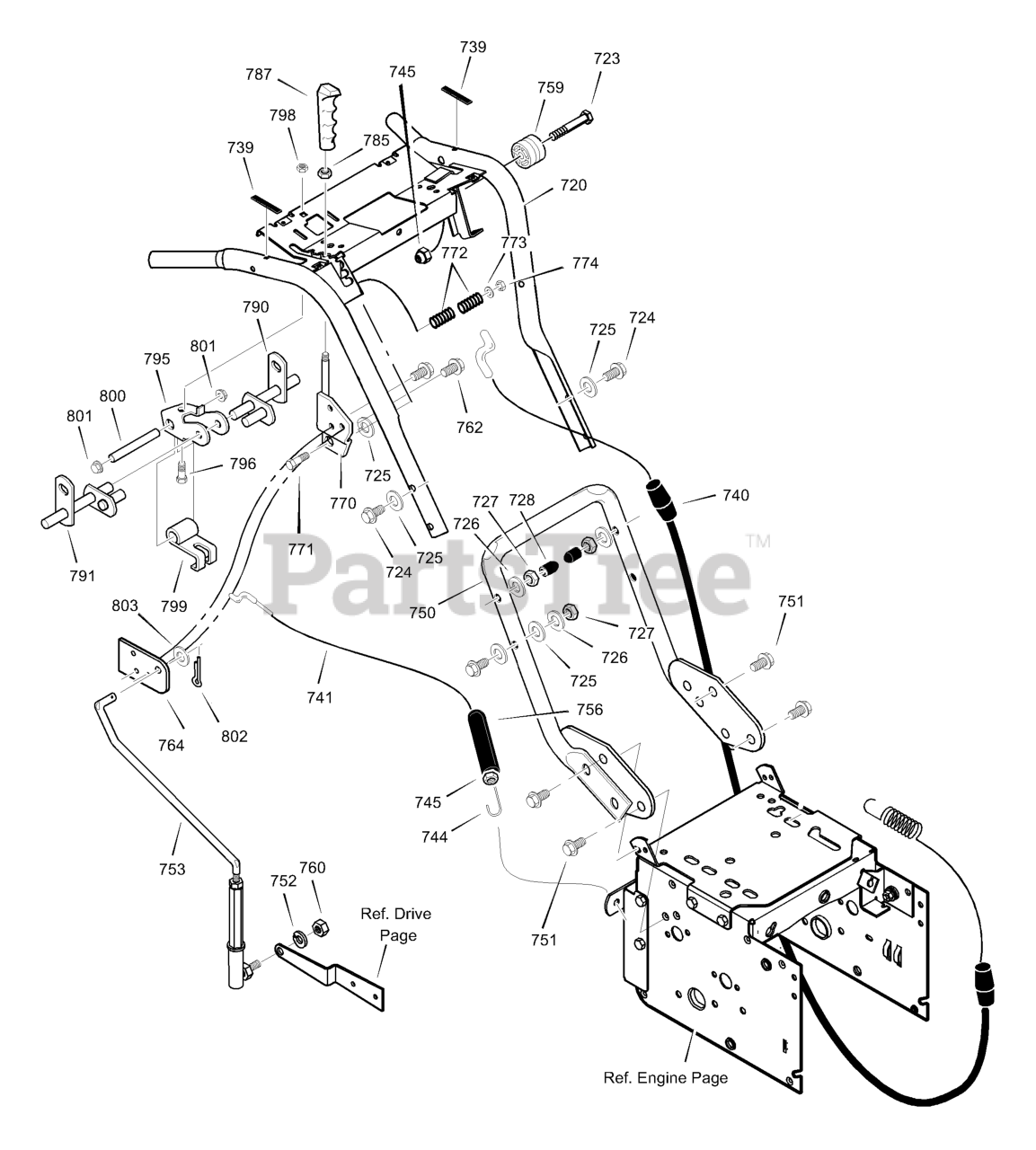

Handle Assembly Parts Diagram

  • Title
720

Murray 1501381E717

ASSY., HANDLE

$

$

Currently unavailable

723

$3.49

$

Usually ships in 2-12 days

0

724

$4.49

$

Usually ships in 2-12 days

0

725

Murray 71072

WASHER

$

$

Not available

726

Murray 71062

WASHER

$

$

Not available

727

$3.49

$

Usually ships in 2-12 days

0

728

Murray 7289MA

STOP, PLASTIC

$4.49

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER

$

$

Not available

740

Murray 1501363MA

CABLE, DRIVE

$39.99

$

Usually ships in 2-12 days

0

741

Murray 1501451MA

CABLE, AUGER

$20.99

$

In Stock, only 1 left!

0

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 12

0

745

Murray 15X145MA

NUT, HEX - 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 18

0

750

Murray 1501449E717

HANDLE, LOWER

$

$

Currently unavailable

751

Murray 25X021MA

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

753

Murray 1501465

ASSEMBLY, ROD

$122.99

$

Usually ships in 2-12 days

0

759

Murray 579860MA

SPOOL, CABLE

$5.99

$

In Stock, Qty 10

0

756

Murray 308146MA

BOOT, SPRING

$6.49

$

In Stock, only 2 left!

0

760

Murray 71042MA

NUT, 5/16-24

$4.49

$

Usually ships in 2-12 days

0

762

Murray 310169MA

SCREW 1/4-20X0.63
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

764

Murray 1501367 YZ

BRACKET, CONTROL

$

$

Currently unavailable

770

Murray 1501375 YZ

BRACKET, SHIFT
(Superseded to 1501375YZMA)

$10.99

$

Usually ships in 2-12 days

0

771

$4.49

$

Usually ships in 2-12 days

0

772

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71072

WASHER

$

$

Not available

774

Murray 71046

NUT, HEX, 3/8-16
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

785

Murray 71045

NUT, HEX, 3/8-16

$

$

Not available

787

Murray 304728MA

KNOB, SHIFT

$12.99

$

Usually ships in 2-12 days

0

790

Murray 578926E701

ROD, ASSY LH

$80.99

$

Usually ships in 2-12 days

0

791

Murray 578924E701

ROD, ASSY RH

$75.99

$

In Stock, only 1 left!

0

795

Murray 579002 YZ

BRACKET, CAM

$

$

Currently unavailable

796

Murray 002X53MA

SCREW
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

798

Murray 71038

NUT, NYLOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

799

Murray 8417MA

CAM LOCK

$34.99

$

In Stock, Qty 5

0

800

Murray 584673MA

PIN, SPRING PIVOT

$18.99

$

Usually ships in 2-12 days

0

801

Murray 73664MA

NUT, PUSH ON

$4.99

$

In Stock, only 3 left!

0

802

Murray 71081

PIN, COTTER

$

$

Not available

803

Murray 71071

WASHER
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0
