629909x54C - Murray 29" Snow Thrower (2004) Wheels Parts Diagram

29" Snow Thrower

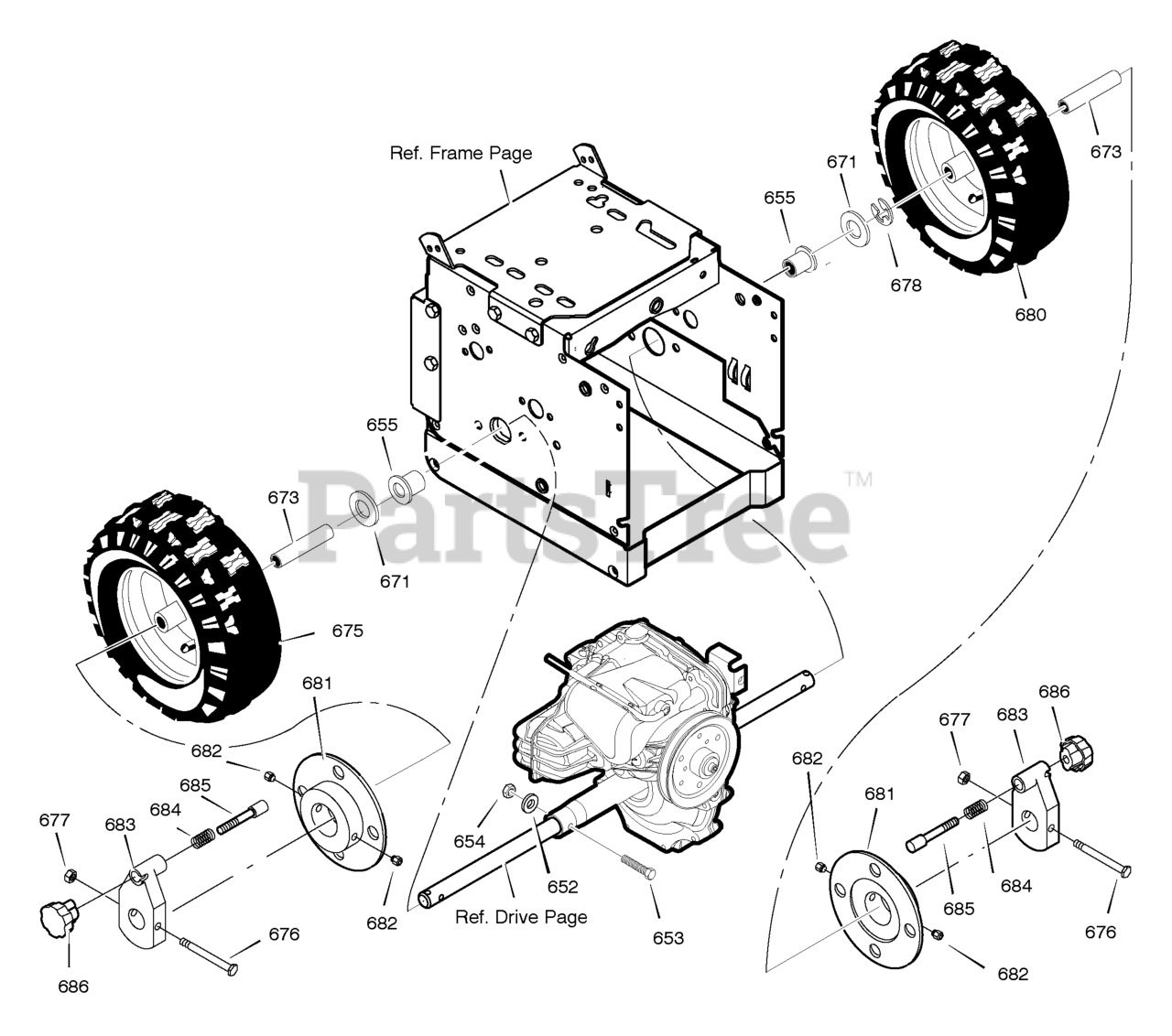

Wheels Parts Diagram

  • Title

652

Murray 3943MA

SPACER
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

653

Murray 01X193MA

SCREW, 1/4-20X1.75
(Superseded to 704212)

$5.49

$

In Stock, Qty 20+

0

654

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

655

Murray 1501114MA

BEARING, AXLE

$11.99

$

In Stock, Qty 20+

0

671

Murray 712120MA

FLATWASHER

$4.99

$

In Stock, Qty 20+

0

673

Murray 1501138MA

BUSHING, WHEEL

$

$

Not available

675

Murray 1501836

TIRE & RIM, RIGHT

$

$

Not available

676

Murray 73839MA

SCREW, 1/4-20X2.25

$5.49

$

In Stock, only 4 left!

0

677

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

678

Murray 239MA

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

680

Murray 1501837MA

TIRE & RIM, LEFT
(Superseded to 770611)

$167.99

$

Usually ships in 2-12 days

0

681

Murray 1501032EMA

DISC, WHEEL

$32.99

$

Usually ships in 2-12 days

0

682

Murray 2001066MA

SCREW

$5.49

$

In Stock, Qty 20+

0

683

Murray 1501930MA

HUB, WHEEL LOCK

$97.99

$

In Stock, only 3 left!

0

684

Murray 164X34MA

SPRING

Note: (Included with Ref. No. 683)

$5.99

$

In Stock, Qty 19

0

685

Murray 1501856 YZ

PIN, LOCK
(Superseded to 1501856YZMA)

Note: (Included with Ref. No. 683)

$15.99

$

In Stock, Qty 14

0

686

Murray 1501855MA

KNOB

Note: (Included with Ref. No. 683)

$13.99

$

In Stock, Qty 16

0
