629906x85B - Murray 29" Snow Thrower (2002) Track Assembly Parts Diagram

29" Snow Thrower

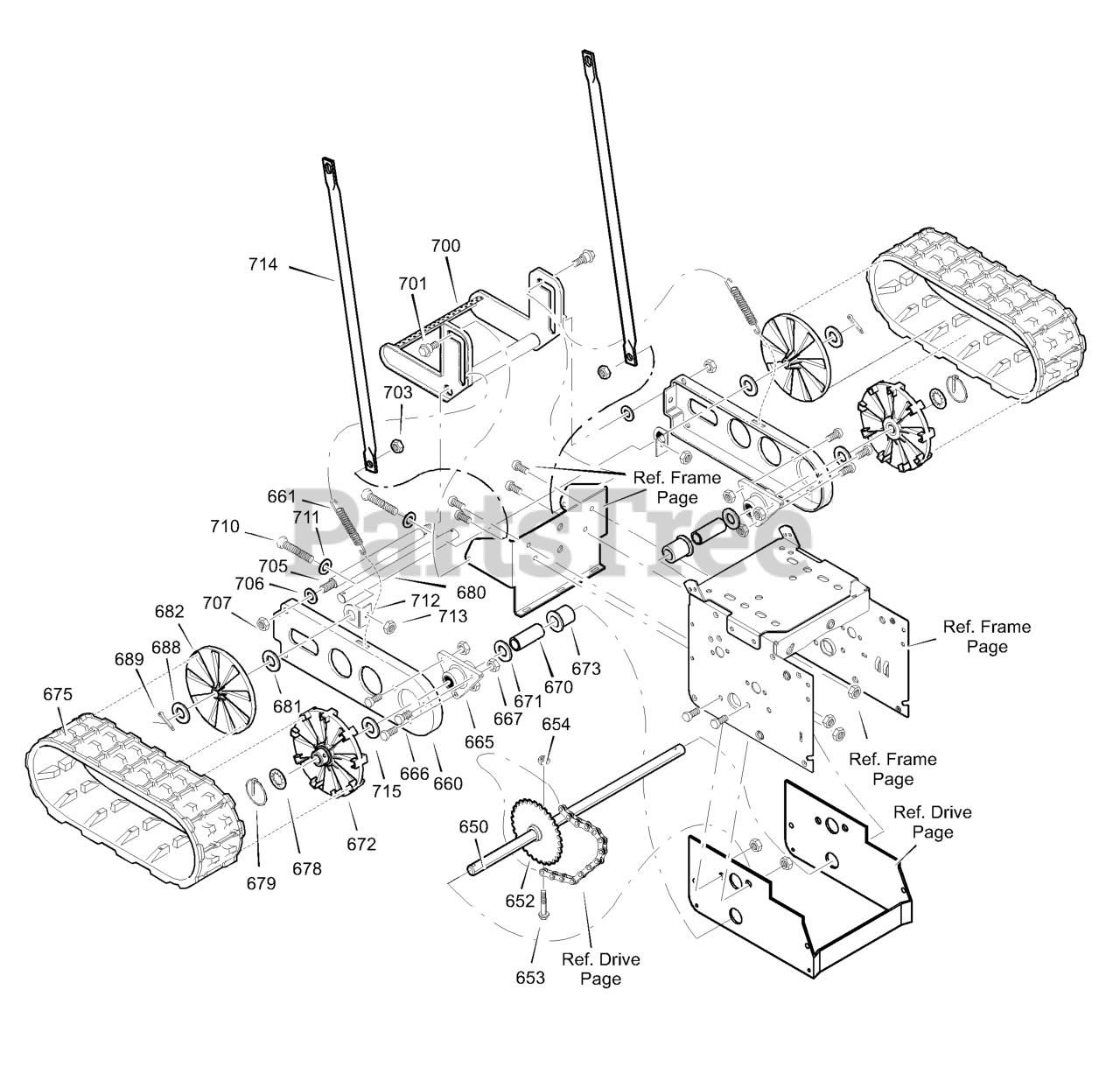

Track Assembly Parts Diagram

  • Title
650

Murray 1501221

SHAFT, AXLE

$41.99

$

Usually ships in 2-12 days

0

652

Murray 579901

SPROCKET AND HUB

$78.99

$

Usually ships in 2-12 days

0

653

Murray 01X193MA

BOLT, HEX 1/4-20 x 1.75
(Superseded to 704212)

$5.49

$

In Stock, Qty 20+

0

654

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

660

Murray 580635E701

PLATE, TRACK DIRECT

$28.99

$

Usually ships in 2-12 days

0

661

Murray 51447MA

SPRING, DRIVE IDLER

$21.99

$

Usually ships in 2-12 days

0

665

Murray 316863MA

BEARING, TRACK

$5.99

$

Usually ships in 2-12 days

0

666

Murray 302628MA

SCREW, 1/4-20 x075

$4.49

$

In Stock, Qty 7

0

667

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, Qty 13

0

670

Murray 580763

SPACER, .750 ID x 1.30

$

$

Not available

671

Murray 712120MA

WASHER, FLAT

$4.99

$

In Stock, Qty 20+

0

672

Murray 318719MA

SPROCKET, WHELL

$33.99

$

Usually ships in 2-12 days

0

673

Murray 1501114MA

BEARING, AXLE

$11.99

$

In Stock, Qty 20+

0

675

$

$

Not available

678

Murray 239MA

RING, RETAINER
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

679

Murray 322424MA

PIN, KLIK

$9.99

$

Usually ships in 2-12 days

0

680

Murray 580876

SHAFT, IDLER

$

$

Not available

681

Murray 579597MA

WASHER, FLAT

$3.99

$

Usually ships in 2-12 days

0

682

Murray 318720MA

WHEEL IDLER, 6.25 ID

$45.99

$

Usually ships in 2-12 days

0

688

Murray 579597MA

WASHER, FLAT

$3.99

$

Usually ships in 2-12 days

0

689

Murray 302847

PIN, COTTER

$

$

Currently unavailable

700

Murray 580657E701

PEDAL, FOOT

$854.99

$

Usually ships in 2-12 days

0

701

Murray 6001MA

BOLT, .430 x .265

$

$

Not available

703

Murray 710026

NUT, 5/16-18

$

$

Not available

705

$

$

Currently unavailable

706

Murray 71072

WASHER, FLAT

$

$

Not available

707

Murray 711906

NUT, 3/8-16

$

$

Not available

710

Murray 302618MA

SCREW, 1/4-20 x 3.00

$4.49

$

Usually ships in 2-12 days

0

711

Murray 071067MA

WASHER, FLAT

$82.99

$

In Stock, only 1 left!

0

712

Murray 581033 YZ

BRACKET, TRACK TENSIONER

$85.99

$

Usually ships in 2-12 days

0

713

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

714

$

$

Currently unavailable

715

Murray 6104MA

WASHER

$

$

Not available
