629906x85B - Murray 29" Snow Thrower (2002) Remote Chute Control Assembly Parts Diagram

29" Snow Thrower

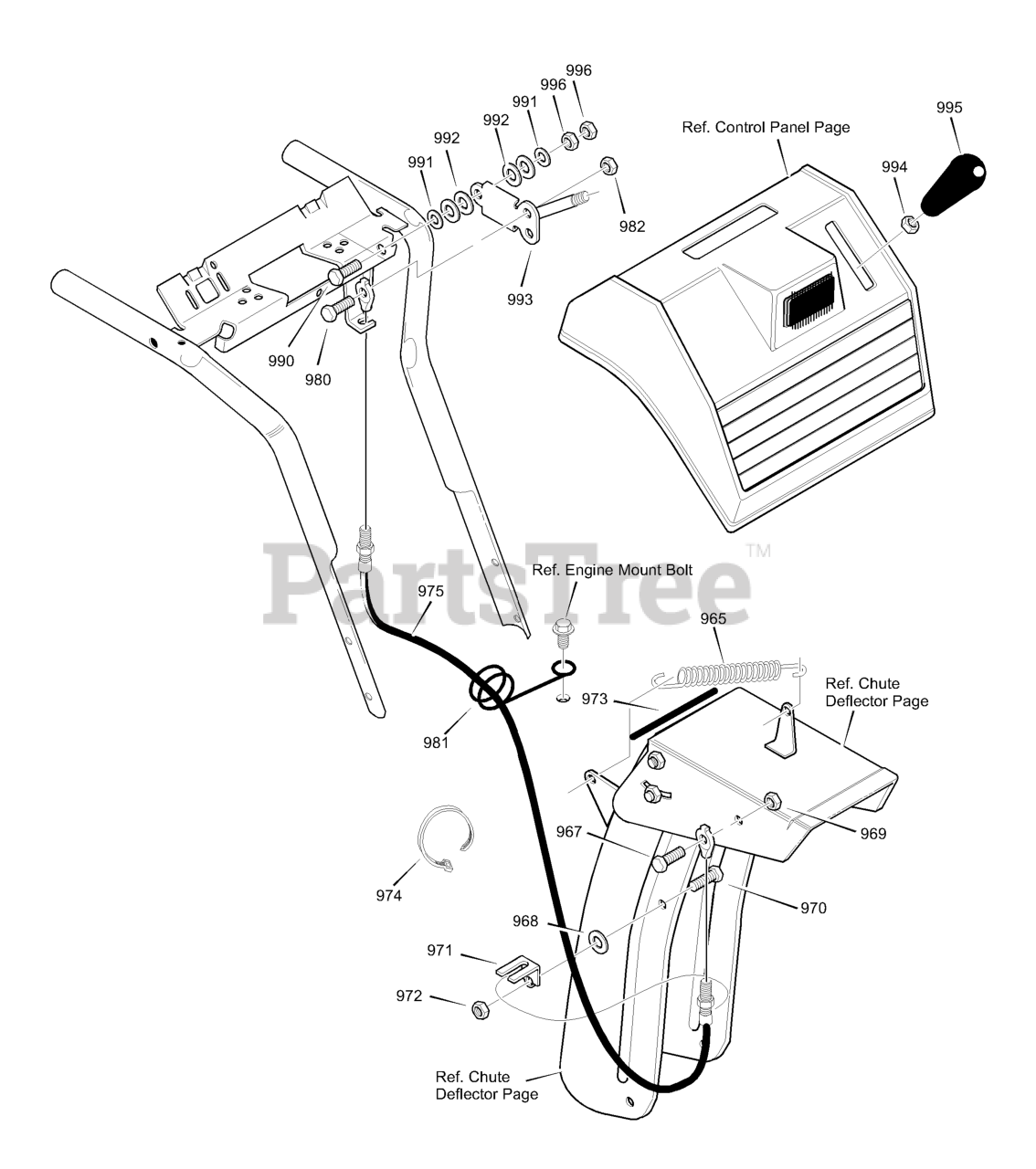

Remote Chute Control Assembly Parts Diagram

  • Title

965

Murray 318468MA

SPRING, TENSION RETURN

$8.49

$

In Stock, only 1 left!

0

967

Murray 310088MA

BOLT, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

968

Murray 73787MA

WASHER, FLAT

$6.99

$

Usually ships in 2-12 days

0

969

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, Qty 13

0

970

Murray 313676

SCREW, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

971

Murray 306447 YZ

BRACKET, CABLE CHUTE

$15.99

$

Usually ships in 2-12 days

0

972

Murray 71391

NUT, 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

973

Murray 1001221MA

TRIM

$5.99

$

Usually ships in 2-12 days

0

974

Murray 760113MA

TIE, CABLE

$5.49

$

Usually ships in 2-12 days

0

975

Murray 1501261MA

CABLE, CHUTE CONTROL

$53.99

$

Usually ships in 2-12 days

0

980

Murray 310088MA

BOLT, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

981

Murray 780220MA

WIRE FORM

$6.99

$

Usually ships in 2-12 days

0

982

Murray 15X143MA

NUT, 1/4-20

$4.99

$

In Stock, Qty 13

0

990

Murray 4058

SCREW, 3/8-16 x 1.75

$3.99

$

Usually ships in 2-12 days

0

991

Murray 71072

WASHER, FLAT

$

$

Not available

992

Murray 4051MA

WASHER, SPRING

$4.99

$

Usually ships in 2-12 days

0

993

Murray 579040

HANDLE ASSY, SPEED CONTROL

$

$

Currently unavailable

994

Murray 71044

NUT, 3/8-16 REGHEX

$3.49

$

Usually ships in 2-12 days

0

995

Murray 306689MA

HANDLE, 3/8-16 MOLDED

$14.99

$

Usually ships in 2-12 days

0

996

Murray 71046

NUT, 3/8-16 HEX
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0
