629906x85B - Murray 29" Snow Thrower (2002) Control Panel Assembly Parts Diagram

29" Snow Thrower

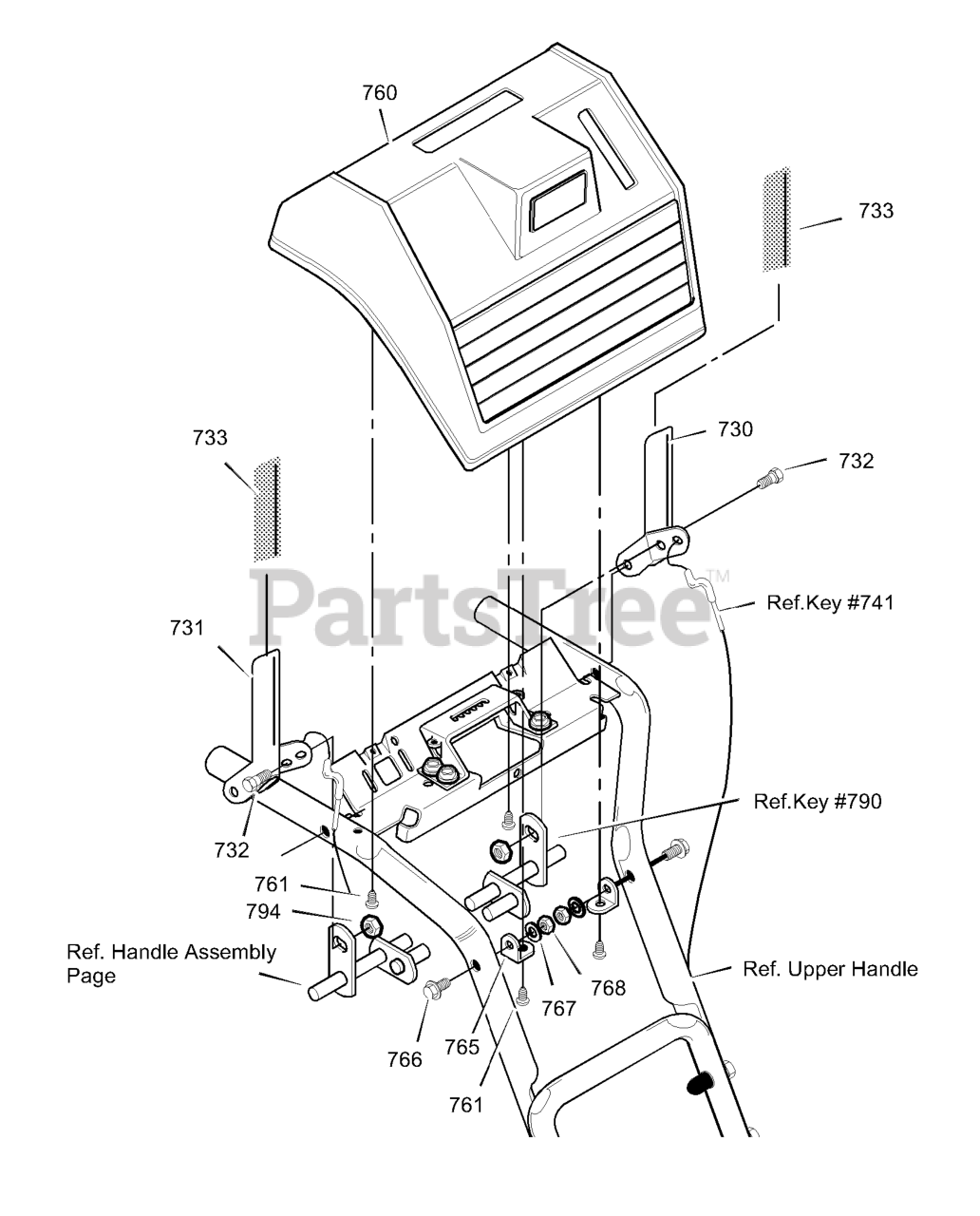

Control Panel Assembly Parts Diagram

  • Title
730

Murray 578992

CLUTCH HANDLE LH

$

$

Currently unavailable

731

Murray 578993

CLUTCH HANDLE RH

$

$

Currently unavailable

732

Murray 905531MA

BOLT, 1/4-20 X .50

$3.49

$

Usually ships in 2-12 days

0

733

Murray 336626

GRIP, CLUTCH HANDLE

$

$

Not available

741

UNKNOWN

$

$

Not available

760

Murray 585523

PANEL, CONTROL

$

$

Currently unavailable

761

Murray 316042MA

SCREW, 10 X .62

$4.49

$

Usually ships in 2-12 days

0

765

Murray 578866E701

BRACKET, PANEL

$

$

Not available

766

Murray 302900MA

SCREW, 5/16-18 x 1.75

$4.49

$

Usually ships in 2-12 days

0

767

Murray 071060

WASHER, HVSPTLK

$3.49

$

In Stock, Qty 20+

0

768

Murray 15X144

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

790

UNKNOWN

$

$

Not available

794

Murray 908913MA

NUT, 1/4-20

$3.99

$

Usually ships in 2-12 days

0
